Fits: GM 6L80, 6L90 · 2007-up
The job: Pan off, valve body out. The transmission stays in the vehicle.
Slips or flares pulling away in Drive, usually in first gear, sometimes with P2723 or P2728 and a check-engine light? On the 6L80 and 6L90 a known cause is a worn, shrunken or missing plastic checkball in the upper valve body. When that ball stops sealing, oil meant for the 1-2-3-4 clutch leaks away and the clutch slips. It is a cheap part, so check it before you buy a TCM or a solenoid body.
Why this kit
Once the valve body is apart you replace every checkball, both separator plate gaskets, the solenoid screen plate and the valve body to case seals in one go: doing half of it means pulling the pan twice. This box has all of it, matched to your gasket style, with the filter and pan gasket as an option so the job closes up with nothing left on order.
What is in the kit

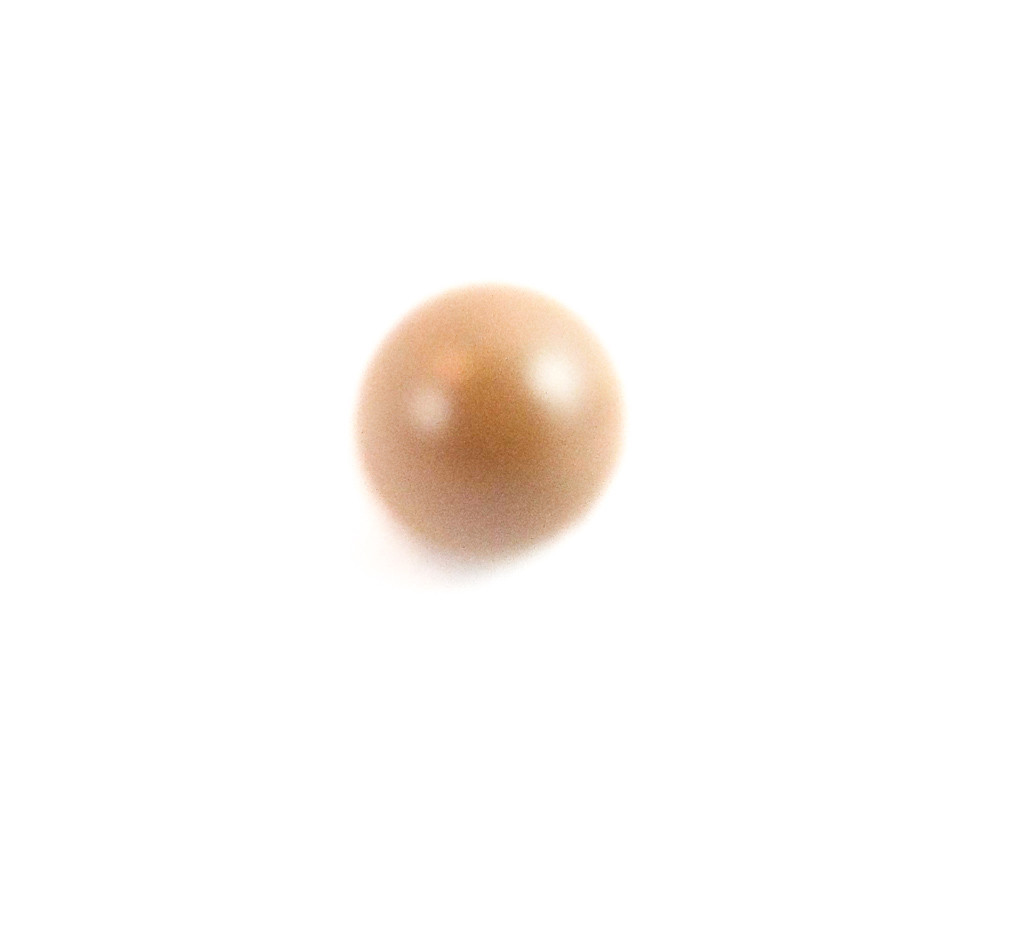

- 8 x 1/4 in. valve body checkballs (7 or 8 are used depending on year; any extra is a spare) – 13924T

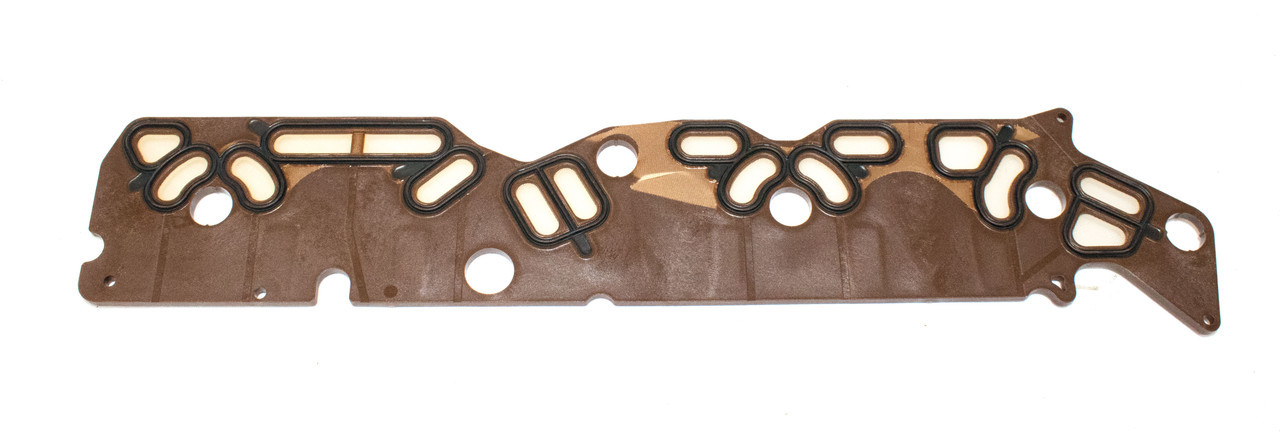

- Valve body solenoid screen plate – 124016

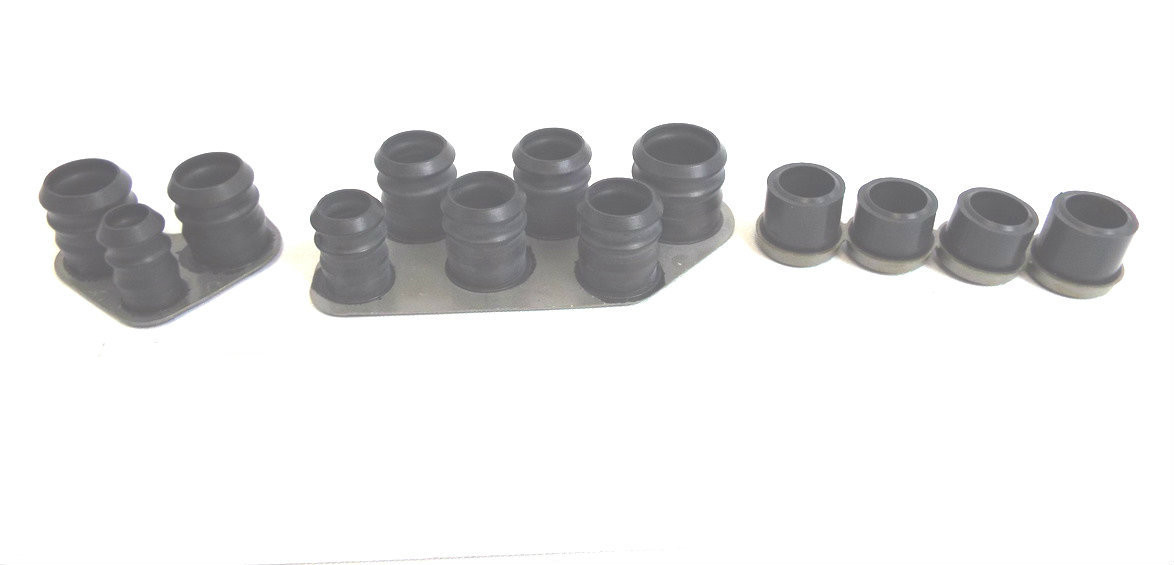

- Valve body to case and pump seal set, 3 pieces – 1635ABC
Valve body plate gaskets (you choose):
- 2006-2010 style: upper and lower separator plate gaskets, 2006-2010 – 1564-Kit
- 2010-up style: lower separator plate gasket, 2010-up – 33620A, and upper separator plate gasket, 2010-up – 33622A
Filter and pan gasket (you choose):
- Not needed: nothing added
- Add 6L80 filter and pan gasket: 6L80 filter and pan gasket service kit – 1562B
- Add 6L90 filter and pan gasket: 6L90 filter and pan gasket service kit – 1563B
Every part is also sold on its own under the number shown, so a lost or damaged piece is easy to replace.
Fitment
| Transmissions | GM 6L80 and 6L90 |
|---|---|
| Years | 2007-up |
| 6L80 is in | half-ton Chevrolet Silverado and GMC Sierra 1500, Tahoe, Suburban, Yukon, Cadillac Escalade, Corvette, Camaro SS and Pontiac G8 |
| 6L90 is in | 3/4- and 1-ton gas Silverado and Sierra 2500HD / 3500HD, Express and Savana vans, Cadillac CTS-V and Camaro ZL1 |
| Plate gaskets | 2006-2010 style or 2010-up style (both were used in 2010: compare yours) |
How the job goes
- Drain the fluid and drop the pan. Take out the filter.
- Unplug and remove the valve body with the solenoid body (TEHCM) attached. Keep it level.
- Separate the solenoid body and then the upper and lower valve body. Note where every checkball sits before you lift the plate.
- Replace every checkball, both separator plate gaskets and the solenoid screen plate.
- Reassemble with the new valve body to case seals. Tighten the bolts in the factory sequence to the factory torque (they are small and easy to over-tighten).
- Fill with Dexron VI, then run the clutch relearn with a scan tool. Skip it and a good repair can still shift badly.
You will also need
Dexron VI fluid, an inch-pound torque wrench, and a scan tool that can run the GM transmission relearn.
Before you buy
Pick the plate gasket style that matches your valve body. Both styles are listed for 2010 units, so compare your old gaskets with the photos or call us with the numbers from your transmission ID tag. The solenoid screen plate is listed for 2007-up units; for a 2006 Corvette, STS-V or XLR-V, call us first.
