Fits: GM 6L80, 6L90 · 2008-up
The job: Transmission out and apart to the 1-2-3-4 / 3-5-reverse drum.
Delayed or slipping reverse, often with a flare on the 2-3 shift and sometimes a fail-safe mode, can come from a crack in the 1-2-3-4 / 3-5-reverse clutch drum where it rides on the bearing next to the pump. It is a known weak spot on the 6L80 and 6L90, and there is no reliable repair for a cracked housing: the cure is a new drum. This kit is the new drum plus the seals and retaining rings you need to move your pistons and clutches over.
Why this kit
The drum is the expensive part, and the job stalls when a D-ring tears or the piston housing retaining ring bends on reassembly. Every seal and the retaining ring kit come in the box with the housing, so the drum goes back together the day it comes apart.
What is in the kit
- 1-2-3-4 and 3-5-R drum D-ring kit, 8 rings (2008-up) – 6L80DRUMRINGKIT-L

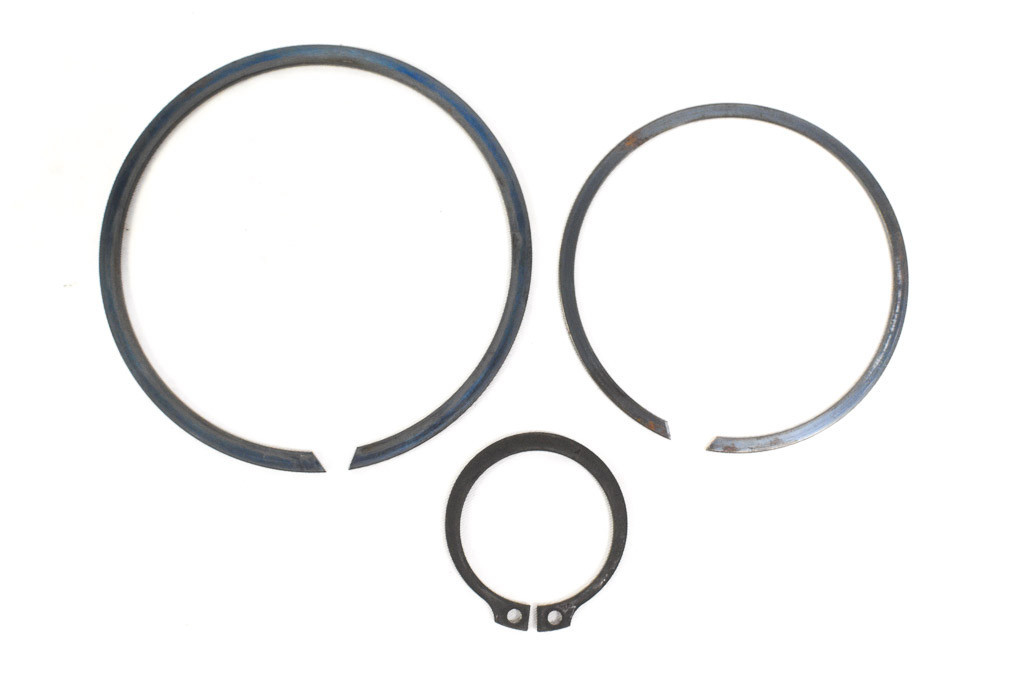

- 1-2-3-4 clutch piston housing retaining ring kit – 104860K
Transmission (you choose):
- 6L80 (4.555 in. drum): 6L80 forward and direct 1-2-3-4 / 3-5-reverse drum, new aftermarket housing – A104554A
- 6L90 (taller drum): 6L90 forward and direct 1-2-3-4 / 3-5-reverse drum, new aftermarket housing with a thicker weld at the weak point, bearing and bushing installed – A104554B
Every part is also sold on its own under the number shown, so a lost or damaged piece is easy to replace.
Fitment
| Transmissions | GM 6L80 (4.555 in. drum) or 6L90 (taller drum): choose above |
|---|---|
| Years | 2008-up |
| 6L80 is in | half-ton Chevrolet Silverado and GMC Sierra 1500, Tahoe, Suburban, Yukon, Cadillac Escalade, Corvette, Camaro SS and Pontiac G8 |
| 6L90 is in | 3/4- and 1-ton gas Silverado and Sierra 2500HD / 3500HD, Express and Savana vans, Cadillac CTS-V and Camaro ZL1 |
How the job goes
- Remove the transmission and take it apart down to the 1-2-3-4 / 3-5-reverse drum.
- Air-check the old drum and watch the bearing seat for leakage to confirm the crack before you order.
- Move the pistons, springs and clutch packs to the new drum with the new D-rings from this kit.
- Install the 1-2-3-4 piston housing retaining ring from the kit and check that it sits fully in its groove.
- Check the 1-2-3-4 and 3-5-reverse clutch clearances. Selective snap rings are sold separately if yours are out of range.
- Reassemble and run the clutch relearn with a scan tool.
You will also need
A clutch spring compressor, feeler gauges for clutch clearance, possibly selective snap rings, a new drum bearing for the 6L80 housing (33693, sold separately; GM says to replace it on every rebuild), and a scan tool for the relearn.
Before you buy
Confirm the crack with an air check first; a slipping reverse can also be a torn D-ring or a worn clutch pack. This kit fits 2008 and later units. 2006-2007 units have a 1st-design 3-5-reverse piston whose inner seal does not interchange with the 2008-up seal in this kit: if you are moving a 1st-design piston, add the 2006-2007 inner D-ring 33810.
Kit price saves at least $14.40 over buying the same parts one by one.
Core Charge
No core charge. You don't need to send anything back.
