Steel Plates & Modules

E4OD Steel Plate Module (1989-1996)

Part number: 3148-Kit A steel clutch-plate module for Ford's E4OD automatic transmission, covering 1989-1996 production. It bundles the steel plates used in the E4OD's clutch packs for a rebuild. The...

E4OD Kolene Steel Module (1989-1996)

Part number: 3148K-Kit A Kolene-coated steel plate module for Ford's E4OD automatic transmission, covering 1989-1996 production. It is made in the USA and includes the full set of Kolene steels used...

4R100 E4OD Overdrive Pressure Plate

Part number: D36140B Overdrive pressure plate for the Ford E4OD and 4R100 four-speed automatic transmissions. The same plate fits both, since the 4R100 is the later version of the E4OD.

E4OD 4R100 Coast Clutch Steel Plate | Cast Drum | 60-Tooth

Part number: 36132 Country of Origin (Primary)

E4OD 4R100 5R110W Overdrive Brake Steel Plate (1989-UP)

Part number: 36120 An overdrive brake steel plate for E4OD, 4R100 and 5R110W transmissions built 1989-UP, a 6T design. It is sold individually as one steel plate for these applications, part number...

E4OD Intermediate Clutch Kolene Steel Plate | 0.080''

Part number: 51K043 Kolene steel plate for the E4OD intermediate clutch, .080 inches thick, 30 teeth, 6.210 inch inner diameter, part number 51K043. It is sized for that intermediate clutch position...

E4OD Coast Clutch Kolene Steel Plate

Part number: 51K045 A coast clutch steel plate for Ford E4OD transmissions, Kolene coated. It is .080'' thick, 60 teeth, with a 5.850'' inside diameter, sold individually. No OEM or manufacturer...

E4OD Steel Module (1997 Only)

Part number: 3148-Kit-97 Steel clutch plate module for the Ford E4OD automatic transmission, for the 1997 model year only. The steel plates come together as one module; plate counts and thicknesses...

C6 E4OD 4R100 Forward & Direct Steel Plate | 0.059'' | 26-Tooth

Part number: 36126A A forward and direct steel plate for C6, E4OD and 4R100 transmissions, 0.059 inch thick with a 26-tooth count and a 5.121 inch inner diameter. It is sold as a single steel plate...

C6 E4OD 4R100 5R110W Low Reverse Kolene® Steel Clutch Plate (1989-On) (.069", 1.75mm) (7.204" OD) (18 Teeth)

Part number: 51K451 A low/reverse steel clutch plate for C6, E4OD, 4R100 and 5R110W automatic transmissions, 1989-On. It is Kolene-treated steel, .069 inches (1.75mm) thick, 7.204 inches outside...

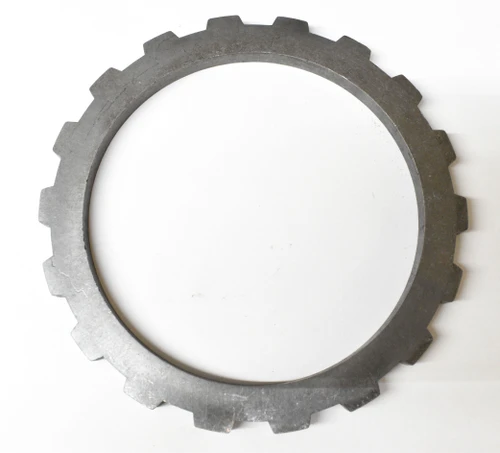

C6 E4OD 4R100 Reverse Clutch Pressure Plate | 18-Tooth | 0.40''

Part number: U36150 A used reverse clutch pressure plate for Ford C6, E4OD and 4R100 transmissions, 18-Tooth, 0.400 inch thick. It is sold as a used part for the reverse clutch pack in these...

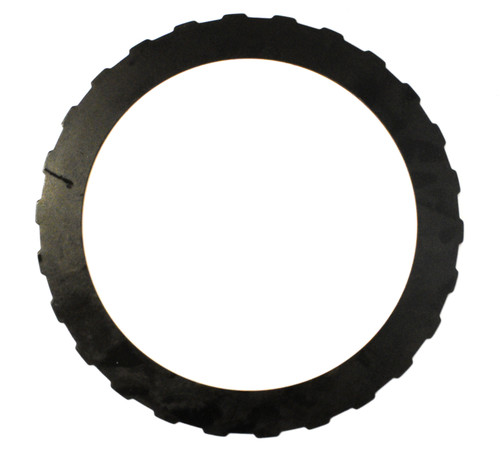

C6 E4OD 4R100 Direct Clutch Steel Plate - HD Kolene .059" (1966-2004)

Part number: AL026701AK A heavy-duty Kolene-coated direct clutch steel plate for Ford 4R100, C6 and E4OD automatic transmissions built 1966 and up. At 0.059 inch, it is thinner than the standard...

E4OD 4R100 5R110W Overdrive Brake Kolene Steel Plate - HD (1989-UP)

Part number: 36120K This is a high performance heavy duty overdrive Kolene coated steel plate for Ford E4OD, 4R100 and 5R110W automatic transmissions. Brands: Alto, Raybestos

E4OD Coast Clutch Kolene Steel Plate - HD (1989-1997)

Part number: 36132K A high performance Kolene coated coast clutch steel plate for Ford E4OD transmissions built from 1989 to 1997, used on cast steel drum assemblies. It has 60 teeth and is offered...

E4OD 4R100 Intermediate Clutch Diaphragm Spring (1989-2000)

Part number: A36972 A new diaphragm spring for the intermediate clutch in Ford E4OD and 4R100 automatic transmissions built 1989-2000 (some records extend this range to 2005). It is sold individually...

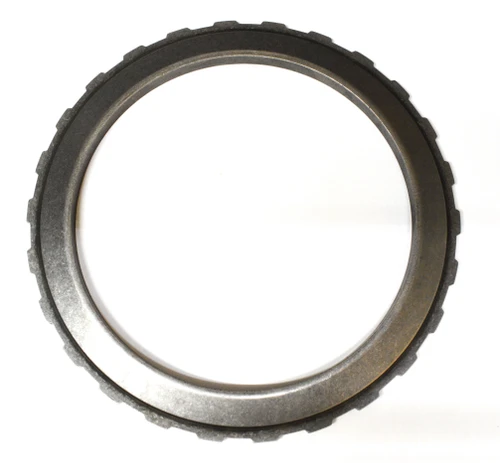

C6 E4OD 4R100 Forward Beveled Pressure Plate (1966-2005) Bottom

Part number: U36149 A forward clutch bottom beveled pressure plate for Ford C6, E4OD and 4R100 transmissions built 1966 to 2005, made in the USA. It is 0.297" thick and is sold as a good used plate...

E4OD 4R100 Low-Reverse Pressure Plate (1989-UP) 16T-0.550''

Part number: U36150E A good used low/reverse pressure plate found in E4OD and 4R100 transmissions manufactured from 1989 and up. It is a 16-Tooth plate, 0.550'' Thick, made in the US for the...
