845RE 850RE 8HP45 HT Friction Clutch Plate Module | Raybestos (2011-UP)

Product Description

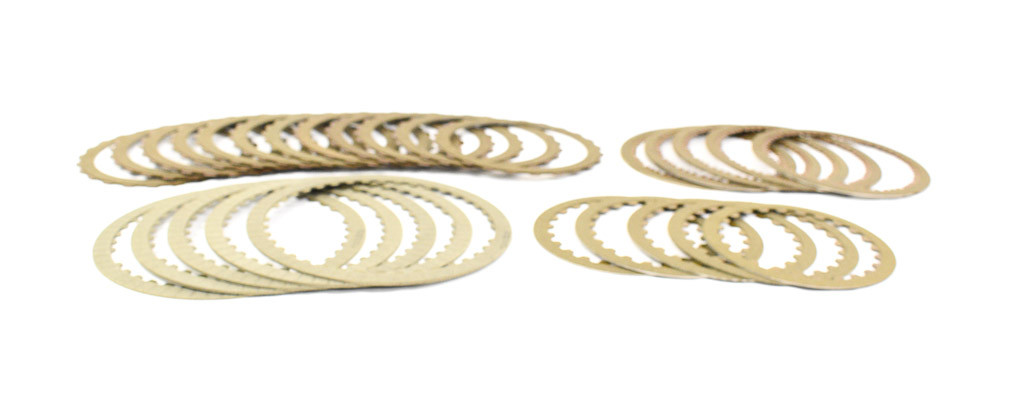

Complete HT friction clutch pack module for the Chrysler 845RE and 850RE and ZF 8HP45 (2011-UP), in one Raybestos box. Made in USA.

For heavy-duty GPZ frictions, see RGPZ-278.

Specifications

About this module

HT (Hybrid Technology) frictions in the A, C, D and E clutches use Raybestos Powertrain's proprietary OE friction material with a groove pattern that keeps the clutches cooler. The B clutch uses High Energy plates.

What's included

• 5 x B clutch, High Energy: .081" thick, 7.021" OD, 38/40 teeth (R560290)
• 12 x C and E clutch, HT: .084" thick, 5.701" OD, 24 teeth (RH560295)
• 4 x D clutch (waved), HT: .084" thick, 5.814" OD, 54 teeth (RH560300)
• 5 x A clutch, HT: .062" thick, 5.112" OD, 24 teeth (R560285)

Instructions and resources

• 845RE GPZ module RGPZ-278
