Product Description
Part number: RH560300
Fits: 845RE / 850RE / 8HP45 / 8HP50 · 2011-ON
Fits: 845RE / 850RE / 8HP45 / 8HP50 · 2011-ON

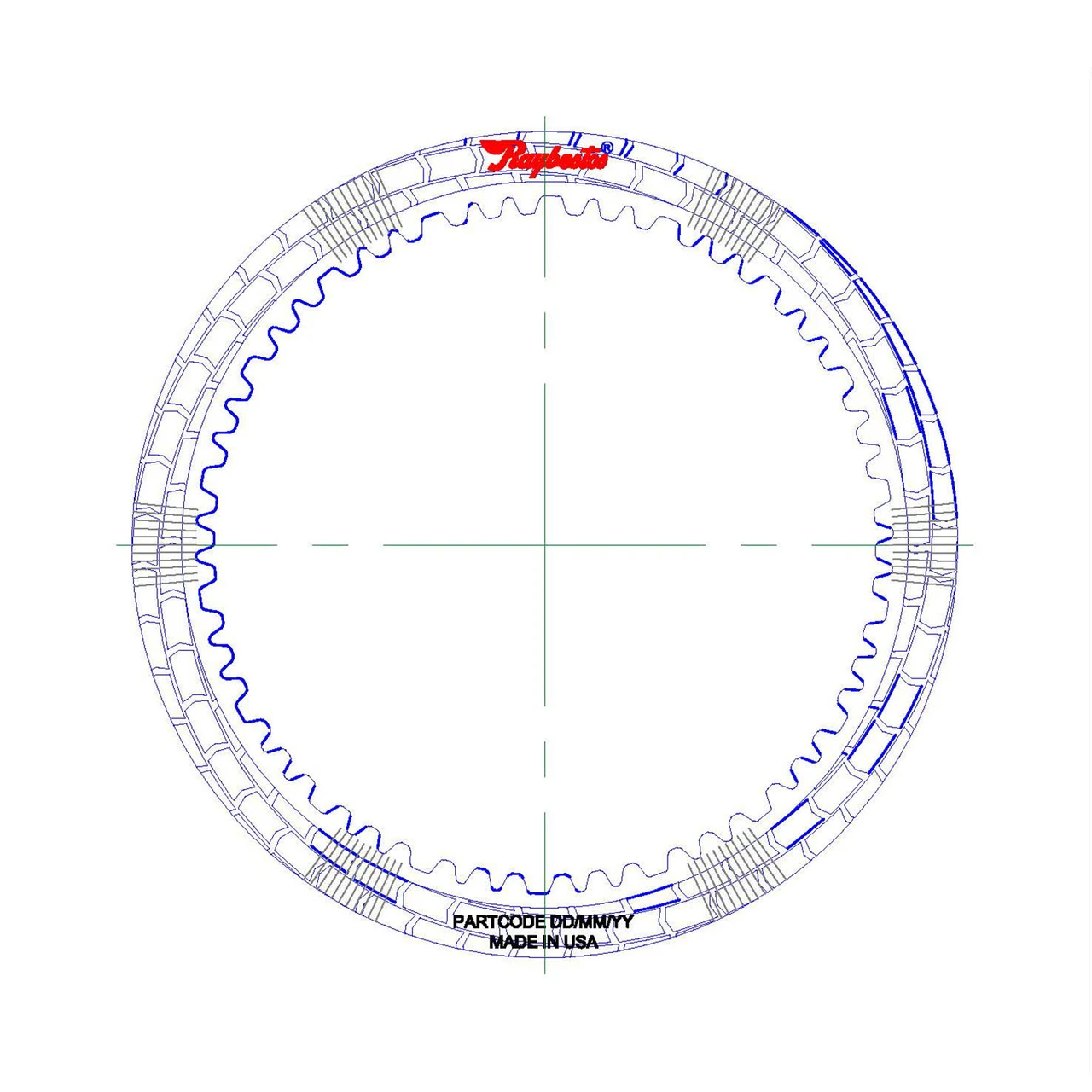

HT (Hybrid Technology) waved friction plate for the D clutch in Chrysler 845RE and ZF 8HP45 automatic transmissions, also listed for the 850RE, 2011-ON. It is an OE replacement for passenger vehicles. Made in USA.
It is 0.084 in (2.13 mm) thick, with a 5.814 in outside diameter and 54 teeth.
Specifications
| Fits | 845RE, 8HP45, 8HP50 |
|---|---|
| Clutch position | D Clutch Waved Plate |
| OE number | N/A |
| Friction material | HT - Hybrid Technology |
| Thickness in./mm | 0.084/2.13 |
| Outside diameter | 5.814 in |
| Groove | HT - Hybrid Technology |
| Teeth | 54 |
| Years | 2011-ON |
| Patent | U.S. D803,116 S |
About HT frictions
HT (Hybrid Technology) frictions use Raybestos Powertrain's proprietary OE friction material and a groove pattern that reduces stress during shifts, keeping the clutches cooler. They combine the fluid flow of a segmented lining with the strength of a full friction ring. They help each rebuild last longer.
Product Videos
Custom Field
Transmission Model(s) 845RE, 8HP45, 8HP50
