Product Description
Part number: GPZ778
Fits: 845RE / 850RE / 8HP45 / 8HP50 · 2011-ON
Fits: 845RE / 850RE / 8HP45 / 8HP50 · 2011-ON

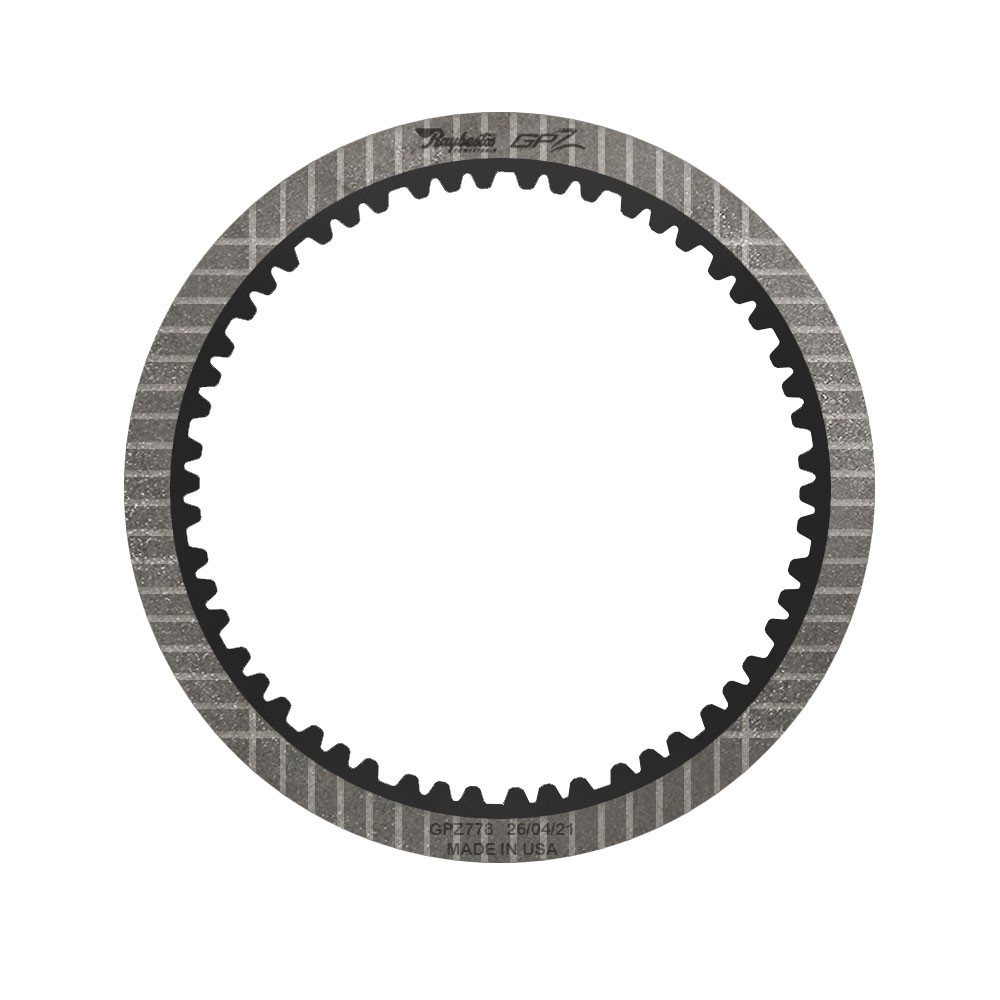

Raybestos GPZ waved friction plate for the D clutch in 845RE, 8HP45 and 8HP50 transmissions. It is a waved replacement for the 8HP45, 8HP50Z, 8HP51 and 845RE D clutch friction plate in ZF, Toyota and Chrysler applications. Made in the USA.
Specifications
| Fits | 845RE, 8HP45, 8HP50 |
|---|---|
| Years | 2011-ON |
| Clutch position | D Clutch Waved Plate |
| OE number | N/A |
| Friction material | GPZ |
| Thickness (in/mm) | 0.084/2.13 |
| Outside diameter | 5.814 in |
| Groove | 2-Way Multi-Parallel |
| Teeth | 54 |
| Recommended use | Heavy-duty vehicles, commercial vehicles and high-stress driving |
| Maker part number | GPZ778 |
About GPZ
GPZ friction material is built to withstand high stress, high temperatures and repeated cycling far better than OE material, which suits heavy-duty vehicles and high-stress driving. Raybestos testing shows it outperforms OE materials by as much as 20%, and its performance improves as power increases.
Product Videos
Custom Field
Transmission Model(s) 845RE, 8HP45, 8HP50
