Product Description
Part number: RH560285
Fits: 845RE / 8HP45 / 8HP50
Fits: 845RE / 8HP45 / 8HP50

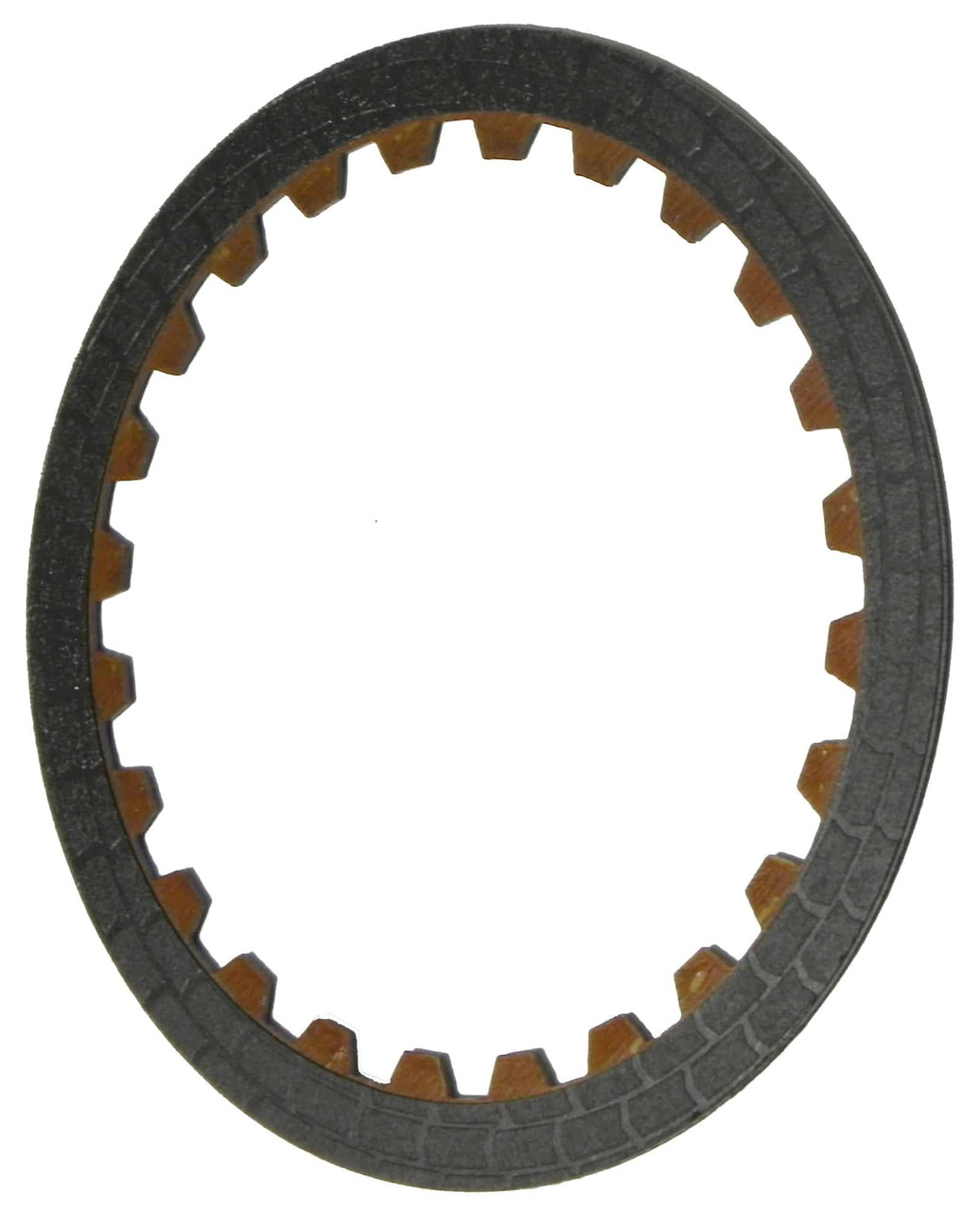

Raybestos HT (Hybrid Technology) friction clutch plate for the A clutch in 845RE, 8HP45 and 8HP50 transmissions. An OE replacement for passenger vehicles, 0.062 in (1.57 mm) thick with 24 teeth and a 5.112 in outside diameter. Made in USA.
Specifications
| Fits | 845RE, 8HP45, 8HP50 |
|---|---|
| Clutch position | A Clutch |
| Friction material | HT - Hybrid Technology |
| Thickness | 0.062 in / 1.57 mm |
| Outside diameter | 5.112 in |
| Groove | Hybrid Technology |
| Teeth | 24 |
| Recommended use | OE replacement for passenger vehicles |
| Patent | U.S. D803,116 S |
About HT
HT (Hybrid Technology) plates use a Raybestos Powertrain proprietary OE friction material and a unique groove pattern that reduces stress during shifts, keeping components cooler and extending the life of the rebuild. They combine the fluid flow of a segmented friction lining with the strength and durability of a full friction ring.
Product Videos
Custom Field
Transmission Model(s) 845RE, 8HP45, 8HP50
