Product Description
Fits: VW 095 / 096 / 01M

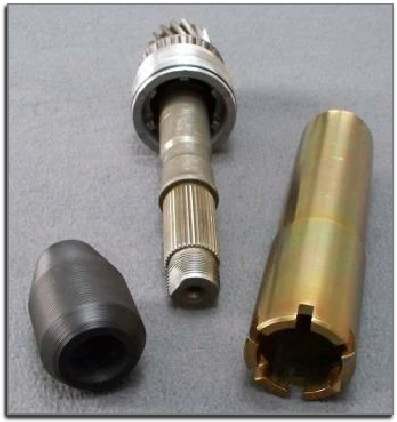

Adapt-A-Case pinion shaft removal tool kit for VW 095, 096 and 01M transmissions in the Beetle, Jetta, Golf and Passat. It simplifies service of the pinion shaft seal, cone bearing and race. Made in the USA.
Specifications
| Spanner drive | 1/2'' |
|---|---|
| Slide hammer thread | 3/4-16 |
| Origin | USA |
How it works
The hardest step is removing the threaded aluminum pinion retainer, which also houses the pinion seal. It is torqued to approximately 150 lbs ft and sits deep in the case. The T-7500AC's spanner socket takes a 1/2'' drive and makes this near effortless.
Once the retainer is out, the included adapter fits slide hammers with 3/4-16 thread pitch and threads onto the pinion shaft. A few taps pull the race out of the case, freeing the shaft so the bearing and race can be serviced or the shaft replaced. T7500 AC makes a more complete rebuild possible.
Notes
No more "crossing your fingers" hoping it won't come back with a final drive problem!
