42RLE Transmission 4X4 Output Shaft Removal Tool by Adapt-A-Case

Hover over image to zoom

  • Image 1
In Stock!

 Product Description

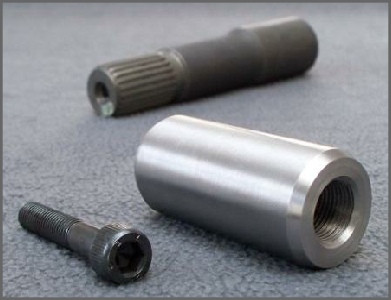

Dodge/Jeep 42RLE Transmission 4X4 Output Shaft Removal Tool

Made in the USA by Adapt-A-Case

When used in the 4WD application, the 42RLE's output shaft is retained to the rear planet with a squared c-clip.  Similar to most front wheel drive axles, but much more permanent.  To enable complete unit disassembly, you must remove the output shaft to gain access to the nut holding the rear planet.

With Adapt-A-Cases new T-8200AC installed, a slide-hammer (with 3/4-16 thread pitch) will make quick work of this seemingly impossible task.  We mill the T-8200AC from steel and include a strong, easily replaceable grade 8 cap screw.  Be ready for the next one that hits your bench!

Adapt-A-Case Part Number: T-8200AC

 Product Reviews

  1. Didn't fit slide hammer

    Posted by TRW on Oct 27th 2019

    Got the too the thread was wrong and the whole was too, even with the adapter nothing worked but the bolt that secured it to the tailshaft. I don't if it was defective but I used it to bolt a plate on the tailshaft and knocked it off with a hand sledge. Waste of money.
