Product Description

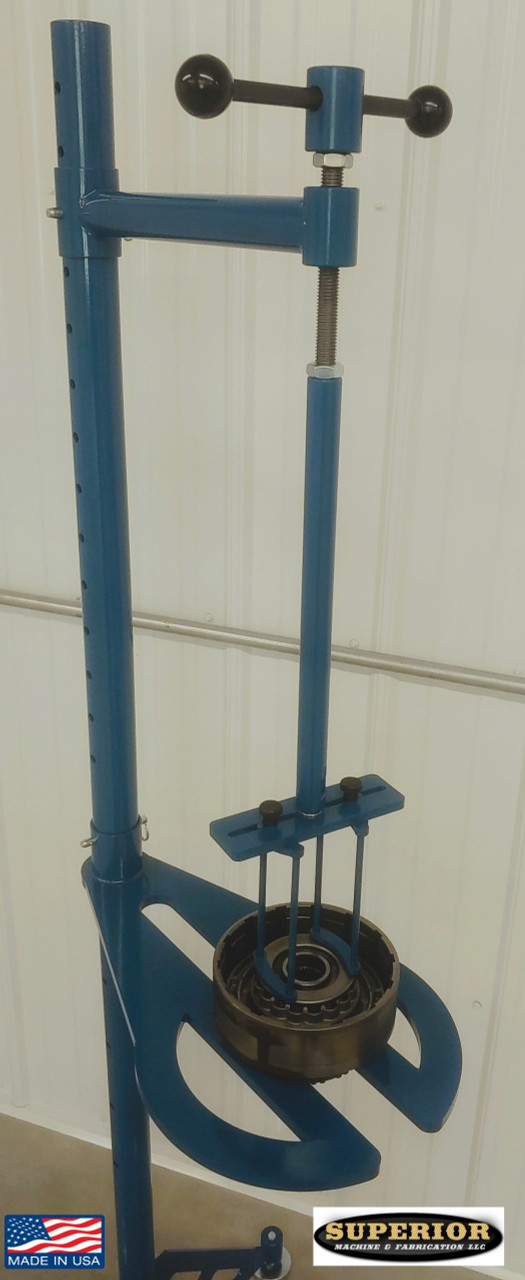

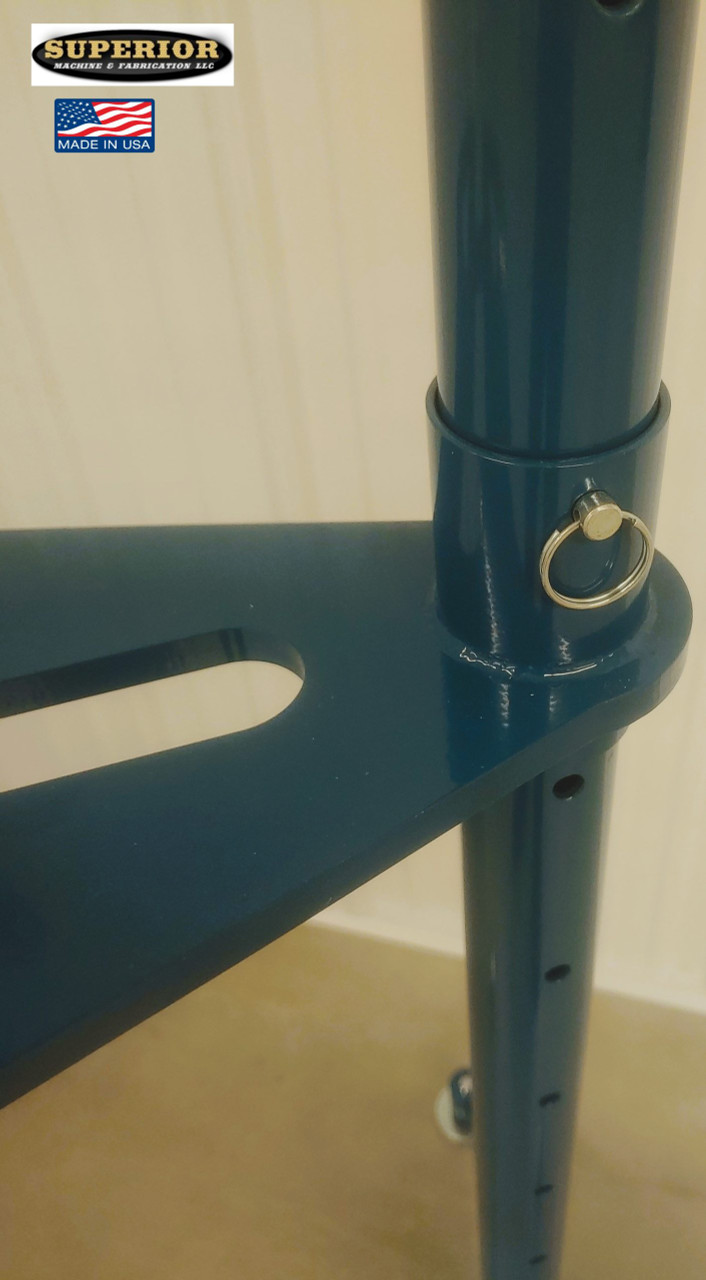

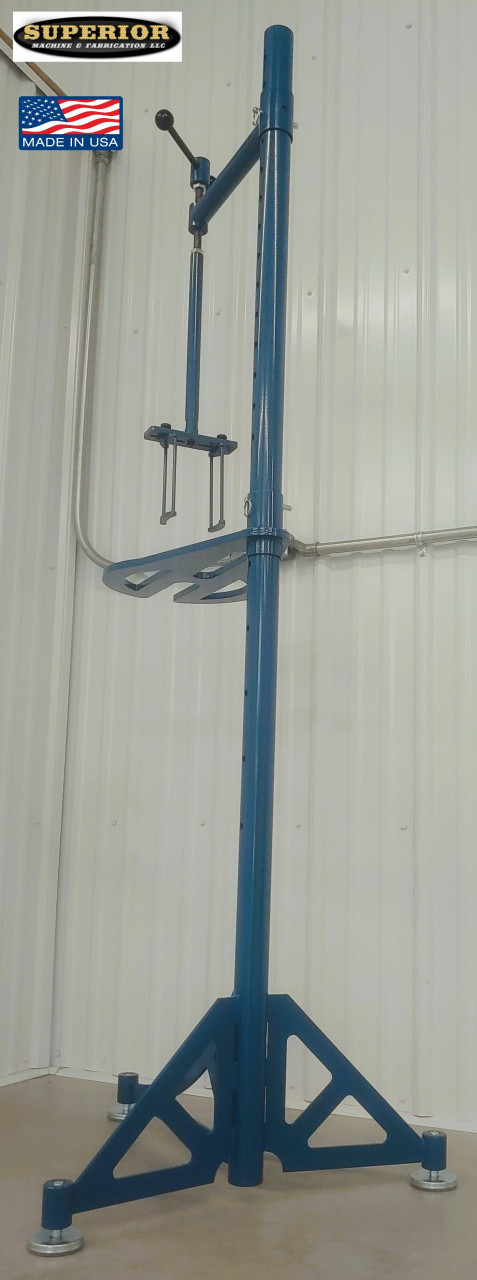

Superior Machine & Fabrication floor-model clutch spring compressor for transmission clutch drums and cases. The one-piece fabricated base has adjustable non-marring feet, and the adjustable press head accepts clutch hub drums and transmission cases from 0 in to 32 in tall and up to 24 in in diameter. 100% manufactured in the USA.
Specifications
| Height capacity | 0 in to 32 in |
|---|---|
| Diameter capacity | Up to 24 in |
| Press legs | 4 in, 6 in and 12 in |
| Lead screw | 5/8 in diameter |
| Weight | 38.5554 kg |
| Dimensions | 121.92 × 121.92 × 215.9 cm |
Features

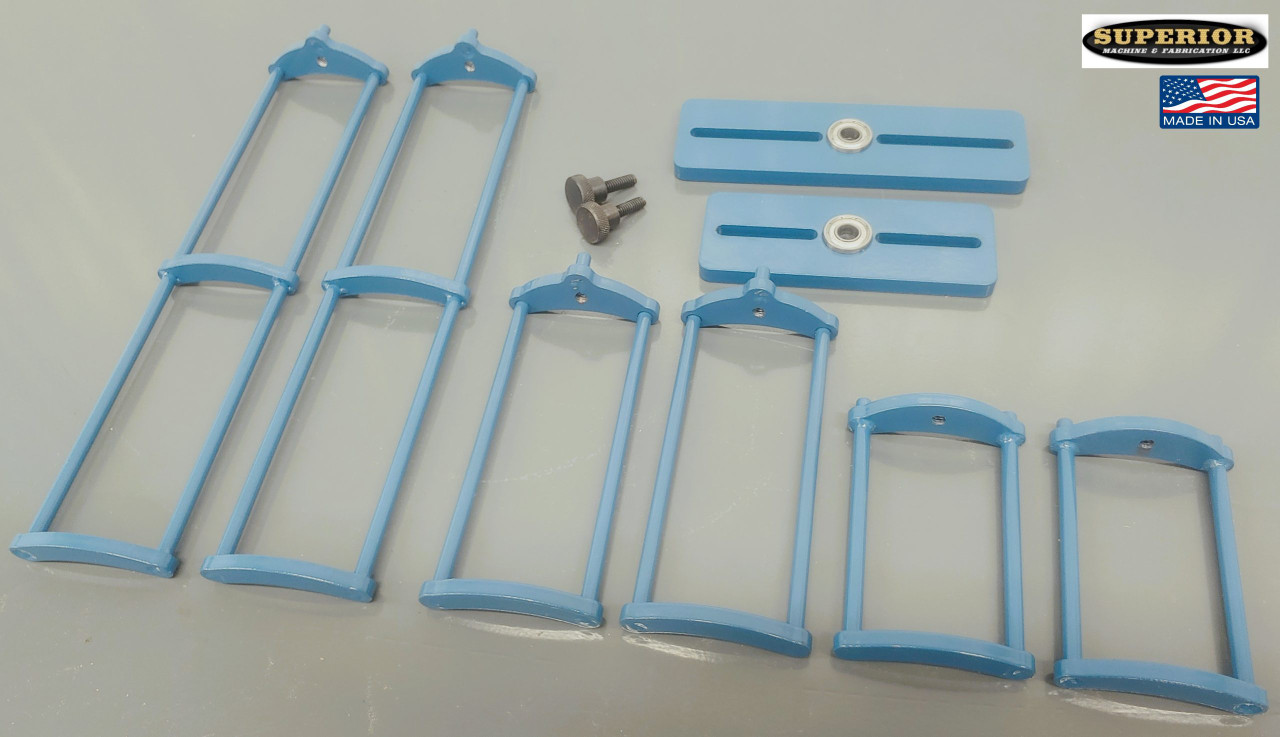

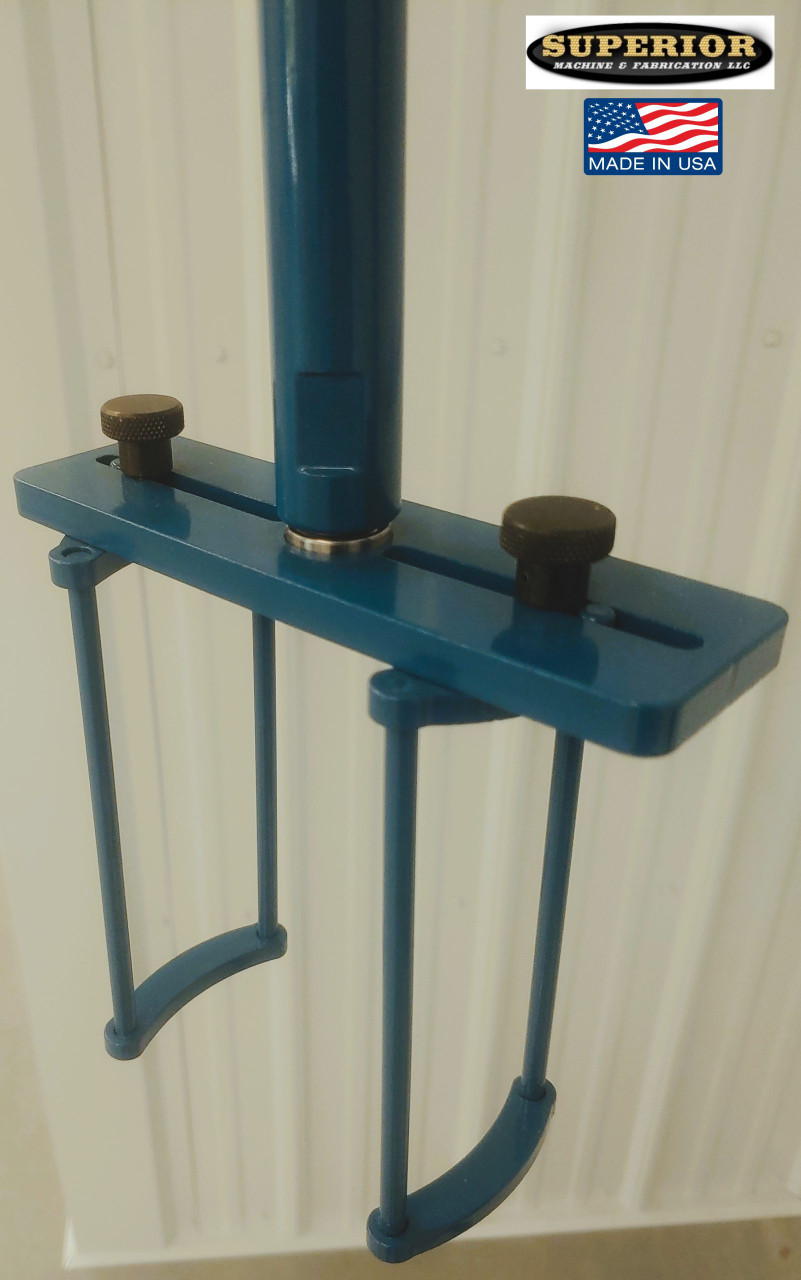

The included 4 in, 6 in and 12 in press legs cover multiple depths. The adjustable-width legs reach inside deep drums, with a slim design and large center openings for access to return spring snap rings, and thumb screws adjust leg spacing.
A standard-width roller bearing press plate suits larger diameter clutch spring retaining plates, and a narrow roller bearing press plate works in confined spaces such as inside transmission cases. Both are included.
The heavy-duty ½ in thick table is slotted to clear clutch hub drums with pressed-in input or output shafts. A 5/8 in diameter lead screw with sliding handle and roller bearing pivot compresses stiff clutch springs. The finish is machine blue powder coat.
