Product Description
Part number: SMAF-009

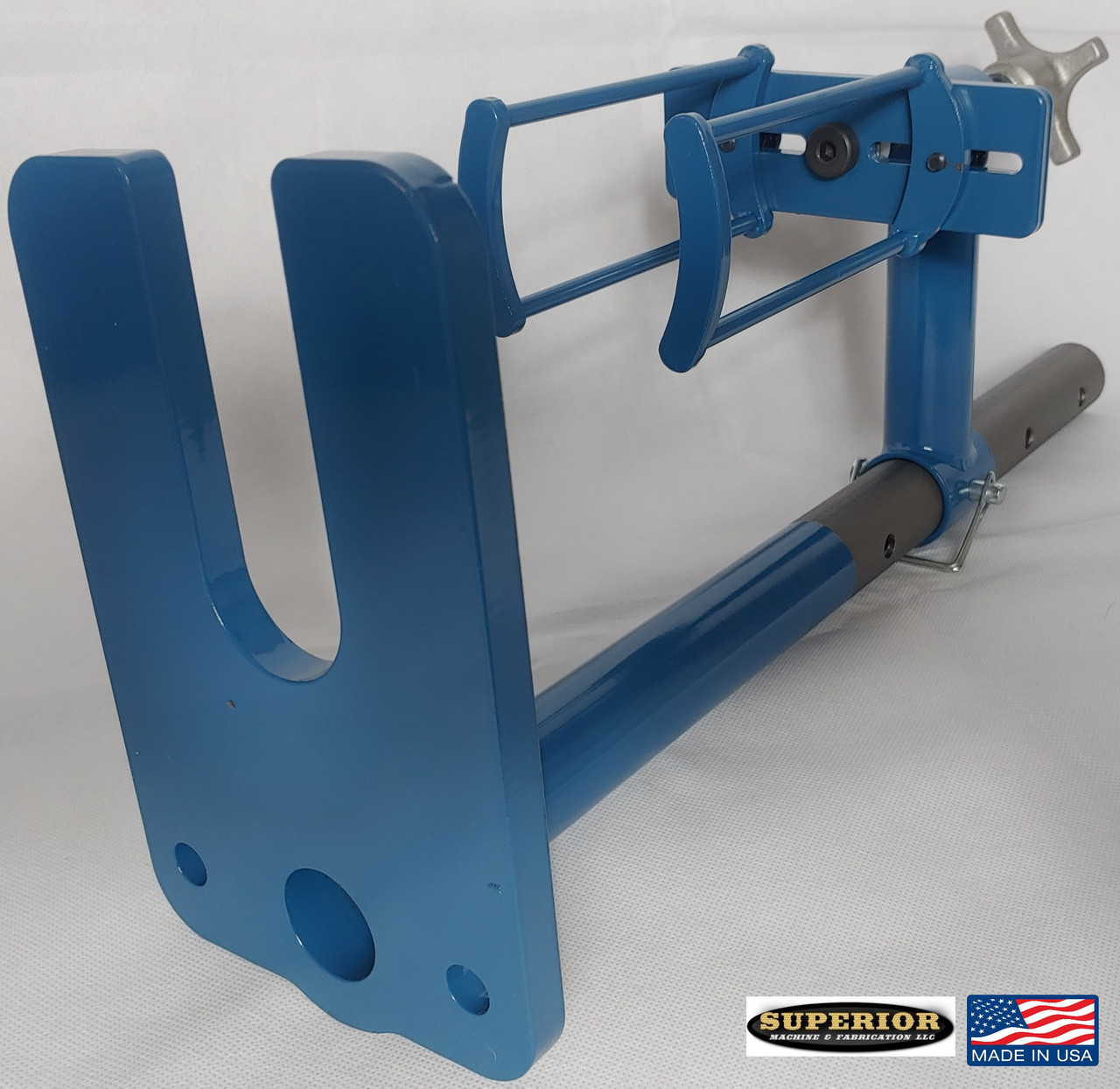

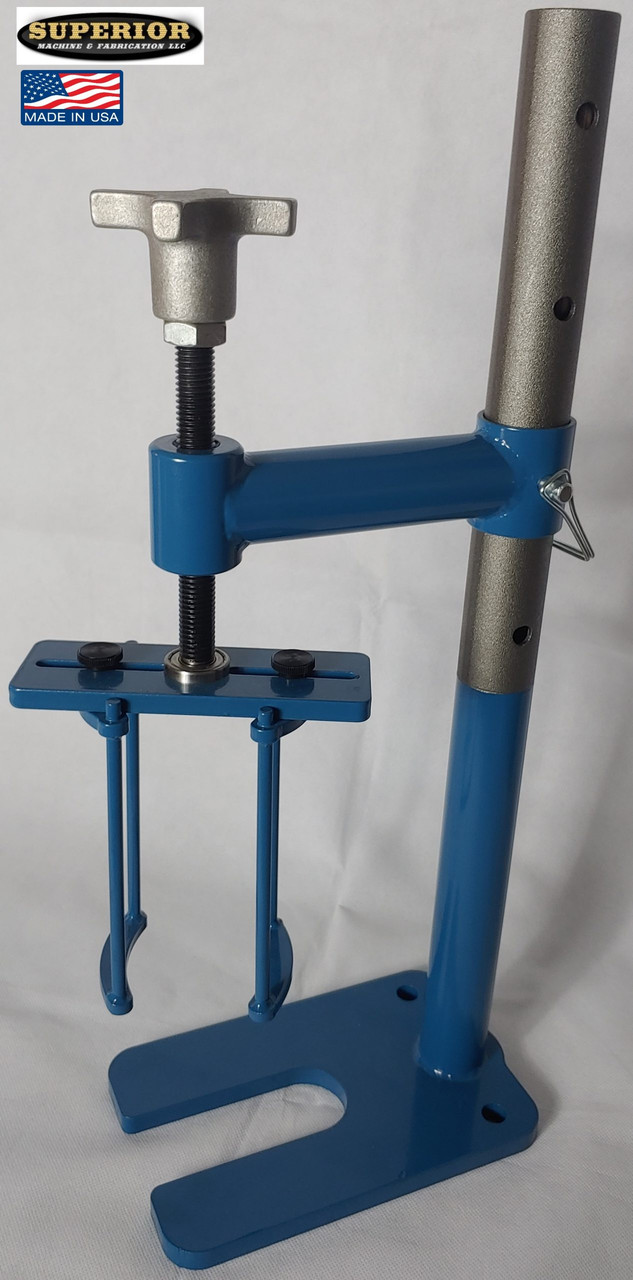

Bench mount transmission clutch spring compressor. The adjustable press head takes clutch hub drums from 0 in to 12 in tall and up to 10 in in diameter.
Specifications
| Drum height | 0 in to 12 in |
|---|---|
| Drum diameter | Up to 10 in |
| Base | ½ in thick, pre-drilled, slotted |
| Legs | 6 in long, adjustable width |
| Lead screw | 5/8 in diameter |
| Finish | Machine blue powder coat |
About this tool
The pre-drilled heavy-duty ½ in thick base mounts to a work bench, and its slot clears drums with pressed-in input or output shafts.
The adjustable-width 6 in long legs reach inside deep drums. Their slim design with large center openings gives access to return spring snap rings, and thumb screws set the leg spacing.
A 5/8 in diameter press lead screw with a cast aluminum hand knob and a roller bearing pivot compresses stiff clutch springs. Machine blue powder coated. 100% manufactured in the USA.
