Product Description
Fits: Chrysler A604 (41TE) / 40TE / 40TES / 41AE / 41TES

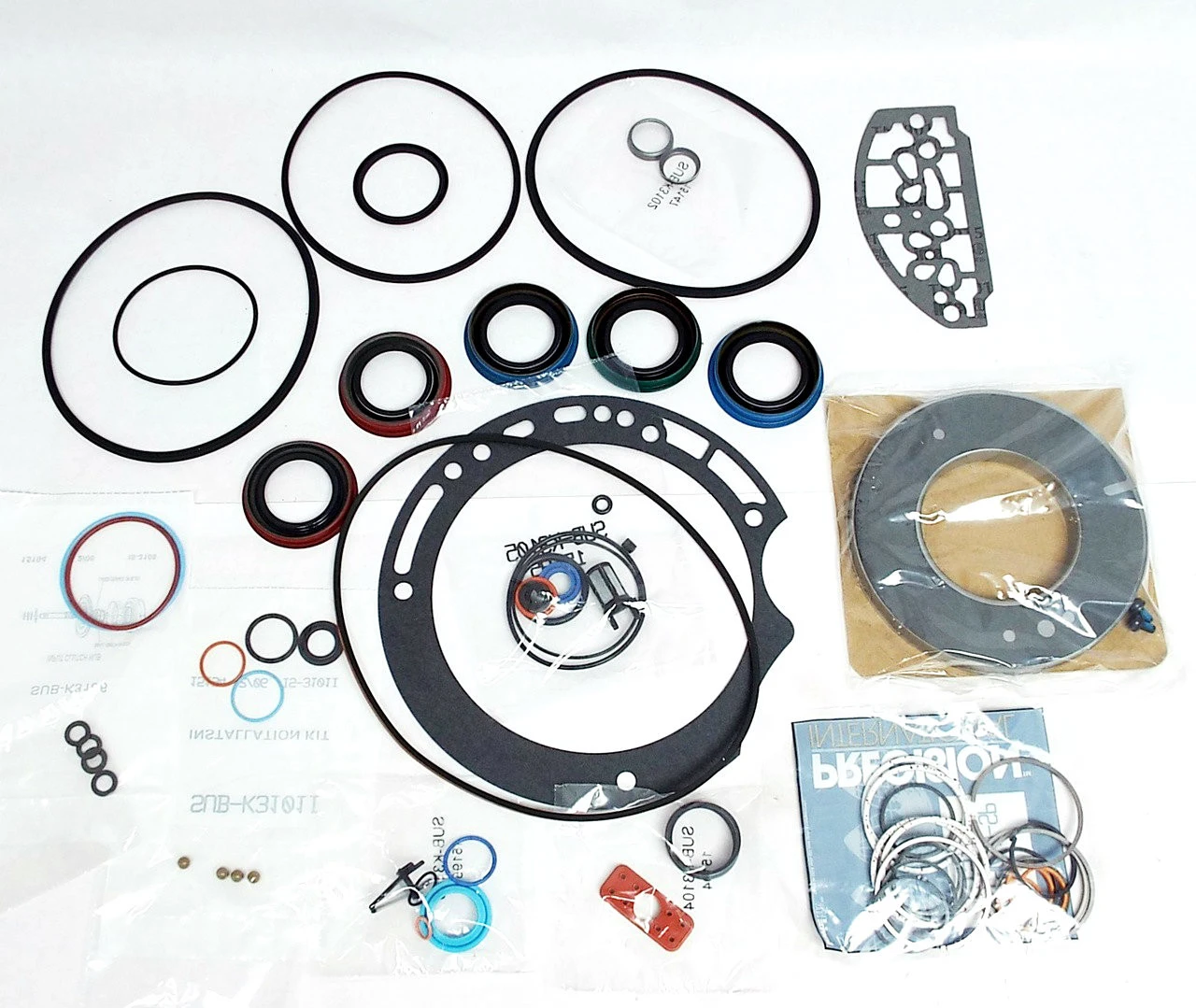

Build your own rebuild kit for the Chrysler A604 (41TE), 40TE, 40TES, 41AE and 41TES front-wheel-drive transaxles. The overhaul kit offered covers 2004-2011 units; most other parts are listed for 1989-UP.
Choose the parts that match the transmission on your bench and leave out what you don't need. This builder has 25 option groups and 45 choices, all optional, so the kit holds only what you pick. Brands offered include Precision, Raybestos, Sonnax, Alto, Superior, TransGo, BorgWarner, Mopar, Dr. Tranny, Lubegard.
Specifications
| Overhaul/Seal Kit | Precision Basic Overhaul Kit KP31900EX (2004-2011) |
|---|---|
| Filter | Oil Filter & Gasket Kit (1989-2011); Oil Filter Only 4864505 (1989-2011) |
| Underdrive Piston Retainer | Bonded Underdrive Clutch Piston Retainer 92960 |
| 2-4 Clutch Piston | 2-4 Clutch Piston 31880 |
| Friction Module | Raybestos High Energy Friction Module RCP96-009 (1990-UP) |
| Steel Module | Steel Plate Module 92139A (1990-UP) |
| Bushing Kit | 11-Piece Bushing Kit 4030A (1996-UP); 13-Piece Master Bushing Kit 4030 (1988-2000) |
| Bearing Kit | Sonnax Bearing Kit SBK-C14 (1988-UP) |
| Thrust Washer Kit | 5-Washer Thrust Washer Kit (1989-UP); Thrust Washer Kit 92200A (without selectives) |
| Snap Ring Kit | Alto Complete Snap Ring Kit (1989-UP); Alto UD/OD/Low/Reverse Snap Ring Kit (1997-UP); Alto Snap Ring Kit (1989-1996) |
| Heat-Treated Front Planet | Front Planet w/ Heat Treated Splines A92582A |
| Differential Case Saver | Superior Case Saver Kit K039 - 0.661 Pinion Shaft; Superior Case Saver Kit K049 - 0.735 Pinion Shaft; TransGo Wide Type Pin Retaining Brackets 604-CB (1978-UP) |
| Shift Kit | TransGo Shift Kit SK604 - non-VLP units (1988-UP); TransGo VLP Valve Body Repair Shift Kit SK42RLE-VLP (2006-UP); Sonnax Sure Cure Kit SC-41TE - non-VLP units |
| Solenoid Switch Valve Kit | TransGo Switch Valve Kit .453 RFE-SV453-NT (tools not included); TransGo Switch Valve Kit .453 w/ Tools RFE-SV453-WT; TransGo Switch Valve Kit .420 RFE-SV420-NT (tools not included); TransGo Switch Valve Kit .420 w/ Tools RFE-SV420-WT; Sonnax Oversized Switch Valve & Plug Kit 92835-32K (needs reamer) |
| Accumulator Piston Kit | TransGo Billet Accumulator Piston Kit (5 pistons); Sonnax Accumulator Piston & Sleeve Kit 92834-03K - Short Shifts; Sonnax Accumulator Piston & Sleeve Kit 92834-05K - OE Shifts |
| Solenoid Pack | BorgWarner Solenoid Block 92420A (1989-UP); BorgWarner Solenoid Block Super Kit w/ Speed Sensors 4013-A (1989-UP); Sonnax Solenoid Pack Repair Kit 92836-03K |
| EPC Solenoid (41TES) | EPC Solenoid D92431 - 41TES (2006-UP) |
| Cooler Bypass Valve | Mopar Cooler Bypass Valve D92540 |
| Input Speed Sensor | Input Shaft Speed Sensor 4800878 (1989-UP) |
| Output Speed Sensor | Output Speed Sensor 4800879 (1989-UP) |
| Range Sensor (MLPS) | MLPS Range / Neutral Safety Sensor 4659676AC (L1998-UP) |
| Hub Bushing Tool | Sonnax Input Clutch Hub Bushing Tool 92003-TL (needed for SC-41TE) |
| Switch Valve Reamer Kit | Sonnax Reamer Kit F-92835-TL32 (for 92835-32K) |
| ATSG Rebuild Manual | ATSG A604 41TE Tech Service Rebuild Manual |
| Assembly Lube | Dr. Tranny Assembly Lube - Blue Soft; Dr. Tranny Assembly Lube - Firm Green; Dr. Tranny Assembly Treatment by Lubegard; Sonnax Slippery Stick O-LUBE |
Notes
Choose a Solenoid Switch Valve Kit: TransGo Switch Valve Kit .453 RFE-SV453-NT (tools not included); TransGo Switch Valve Kit .453 w/ Tools RFE-SV453-WT; TransGo Switch Valve Kit .420 RFE-SV420-NT (tools not included); TransGo Switch Valve Kit .420 w/ Tools RFE-SV420-WT; Sonnax Oversized Switch Valve & Plug Kit 92835-32K (needs reamer)
