AW4 A340E A340H Friction Clutch Plate Module (1985-UP) No Turbo | Raybestos

Product Description

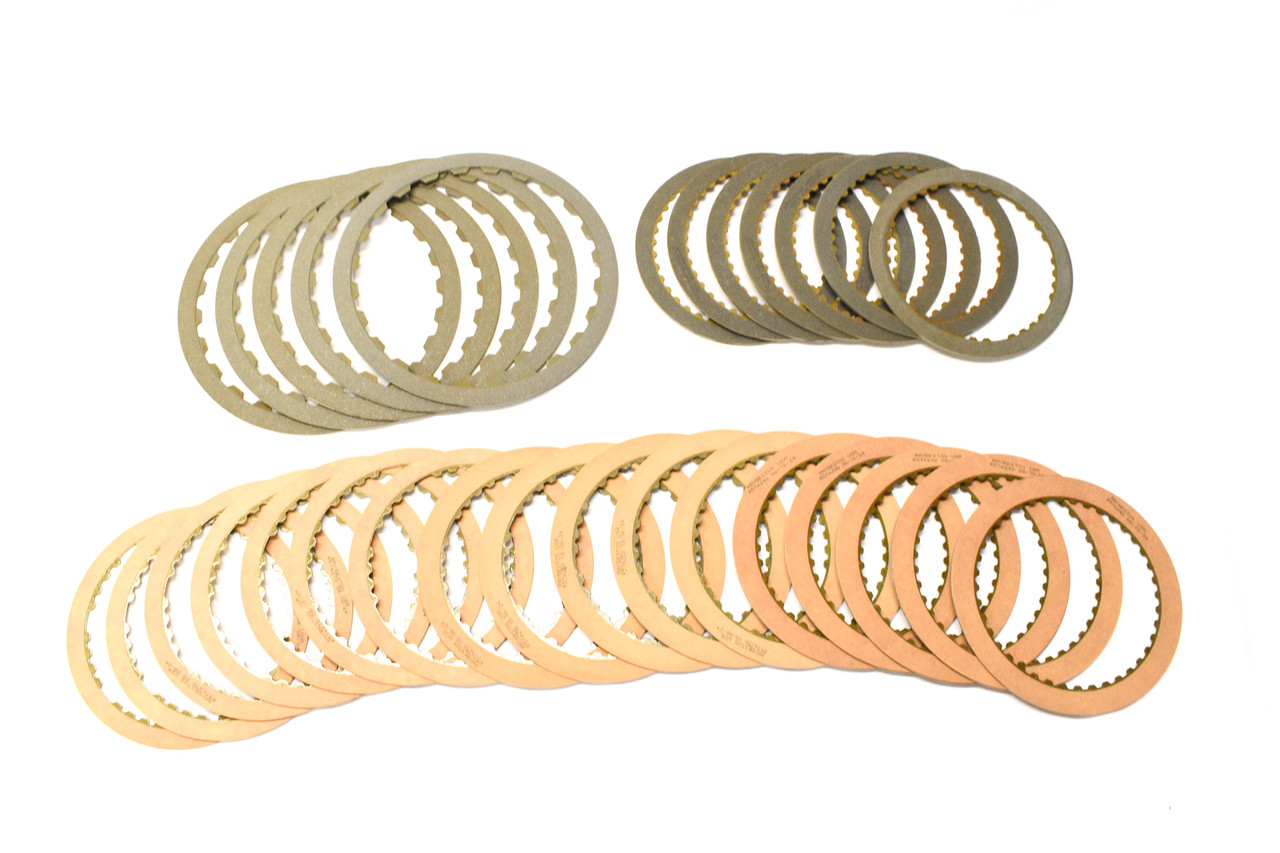

Complete Raybestos friction clutch pack module for the Toyota A340E, A340H and AW4 (1985-UP), non-turbo applications only, in one box. For Stage-1 performance, see RCPS-45, or RCPS-55 for added Forward and Overdrive Direct capacity.

Tan OE replacement frictions in the Direct, Low/Reverse and Intermediate positions, with High Energy plates in the Forward, Overdrive Brake and Overdrive Direct positions. Made in USA.

Contents

• 5 x Forward, High Energy: .080" thick, 4.976" OD, 40 teeth (R576200)
• 5 x Overdrive Brake, High Energy: .080" thick, 6.475" OD, 24 teeth (R576300)
• 5 x Direct, tan OE replacement: .080" thick, 5.18" OD, 40 teeth (R576240)
• 2 x Overdrive Direct, High Energy: .080" thick, 4.973" OD, 32/40 teeth (R576290)
• 7 x Low/Reverse, tan OE replacement: .067" thick, 5.094" OD, 32/40 teeth (R576270)
• 5 x Intermediate, tan OE replacement: .080" thick, 5.179" OD, 32/40 teeth (R576250)

Recommended use: OE replacement.
