Product Description
Raybestos Powertrain part number: RCPS-55
Fits: AW4, A340E, A340F, A340H · 1985-up
Fits: AW4, A340E, A340F, A340H · 1985-up

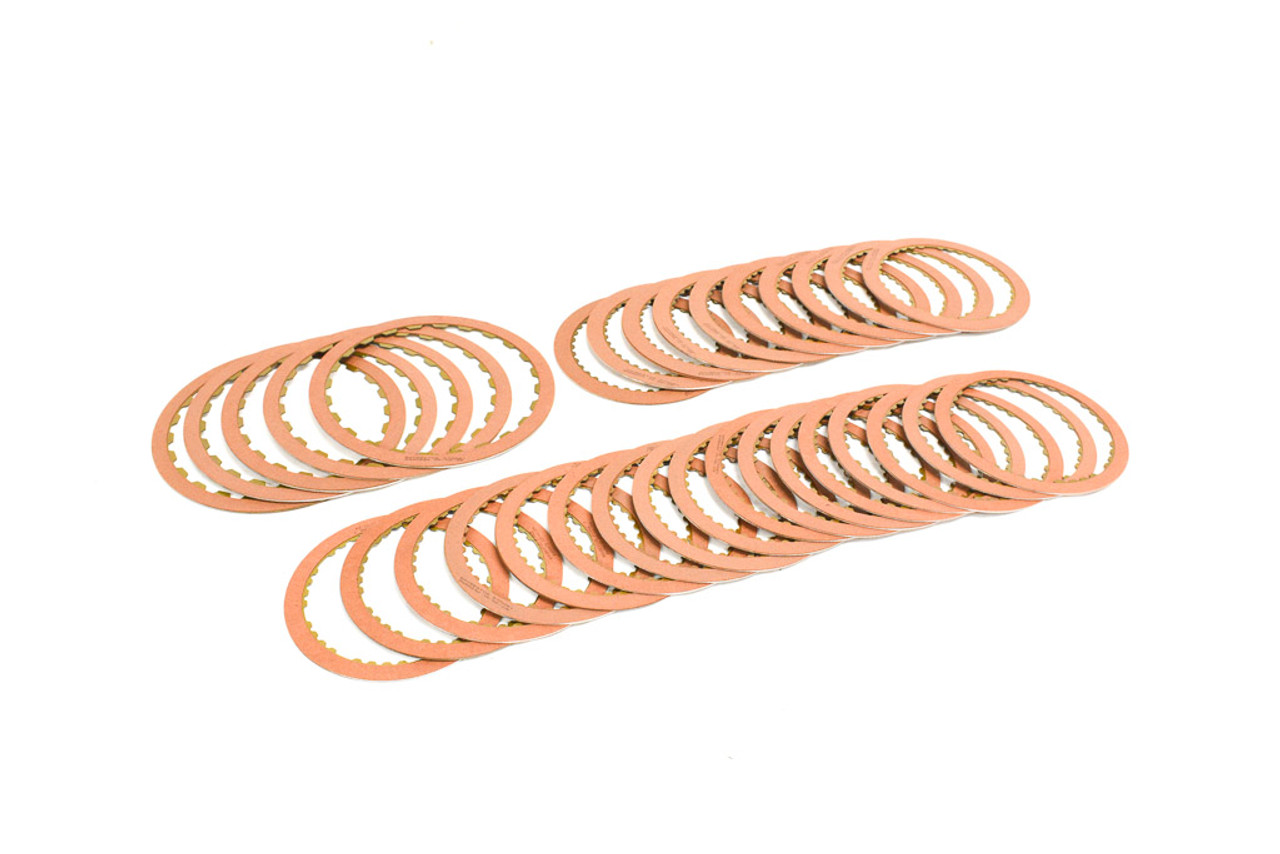

Complete Raybestos Stage-1 performance friction clutch pack module for the Toyota A340E, A340F, A340H and AW4 (1985-UP), with added Forward and Overdrive Direct capacity: one extra plate in each of those positions compared to RCPS-45. For the OE-style module, see RCP96-012.
Stage-1 (red) performance frictions hold more torque and handle more heat than stock tan or high energy plates, for performance builds and heavy towing. Made in USA.
Contents
- 5 x 2nd Brake, Stage-1 (red): .080" thick, 5.179" OD, 32/40 teeth (R600650)
- 3 x Overdrive Direct, Stage-1 (red), added capacity: .080" thick, 4.973" OD, 32/40 teeth (R600670)
- 7 x Forward, Stage-1 (red), added capacity: .067" thick, 4.976" OD, 40 teeth (R600630)
- 5 x Overdrive Brake, Stage-1 (red): .080" thick, 6.475" OD, 24 teeth (R600680)
- 7 x Low/Reverse, Stage-1 (red): .067" thick, 5.094" OD, 32/40 teeth (R600660)
- 5 x Direct, Stage-1 (red): .080" thick, 5.18" OD, 40 teeth (R600640)
Recommended use: Street/strip, tuner and off-road performance use; also suits heavy towing.
Product Videos
Custom Field
Transmission Model(s) AW4, A340E, A340F, A340H
Year Range 1985-UP
