Product Description
Part number: SMAF-005
Fits: Allison 1000 / 2000 / 2100HS / 2400 / HT740, SM465, NV4500
Fits: Allison 1000 / 2000 / 2100HS / 2400 / HT740, SM465, NV4500

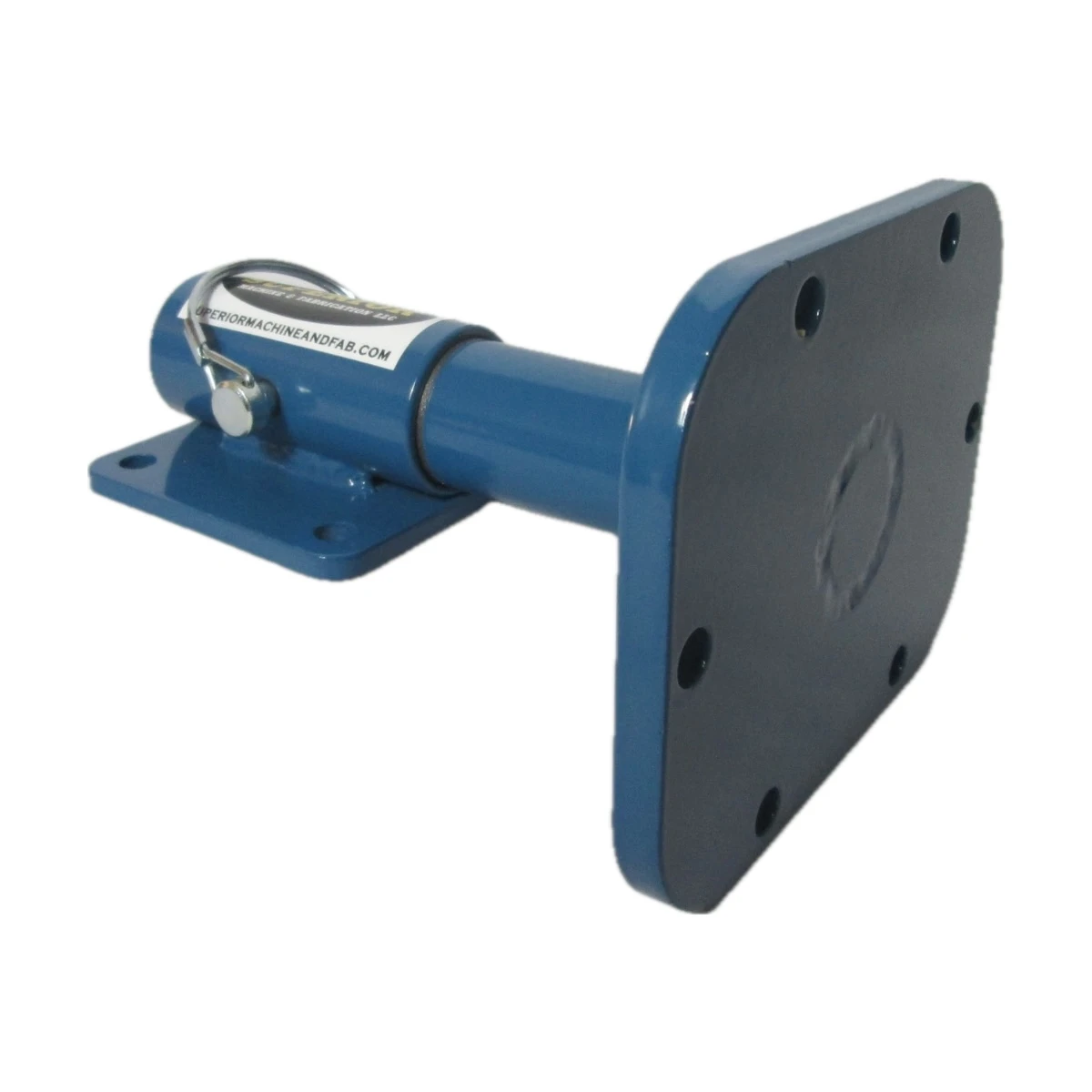

Heavy duty holding fixture from Superior Machine and Fabrication for transmissions and transfer cases with a standard 6 bolt, 6 ¼” x 5” (approx.) PTO cover and housing provision. It works with Allison 1000, 2000, 2100HS, 2400 and HT740 automatic transmissions and SM465 and NV4500 manual transmissions.
The mounting base lets the fixture rotate 360°, and a quick pin locks it in 4 positions (vertical and horizontal).
Specifications
| Fits | Allison 1000, 2000, 2100HS, 2400, HT740; SM465; NV4500 |
|---|---|
| PTO cover | Standard 6 bolt, 6 ¼” x 5” (approx.) |
| Flanges | 3/8” thick steel, CNC laser cut |
| Round bar | 1 ½” solid |
| Rotation | 360°, locks in 4 positions |
| Bench mount | SMAF-020 |
Construction
The fixture is fabricated from 3/8” thick steel CNC laser cut flanges and 1 ½” solid round bar, with a machine blue smooth satin powder coated finish. 100% made in the USA. It is designed for use with the standard bench mount fixture, SMAF-020.
Notes
THE BENCH MOUNT IS NOT INCLUDED UNLESS YOU ADD IT TO THE ORDER.
