Product Description
Part number: SMAF-005E
Fits: Allison 1000 / 2000 / 2100HS / 2400 / HT740 · NV4500 · SM465
Fits: Allison 1000 / 2000 / 2100HS / 2400 / HT740 · NV4500 · SM465

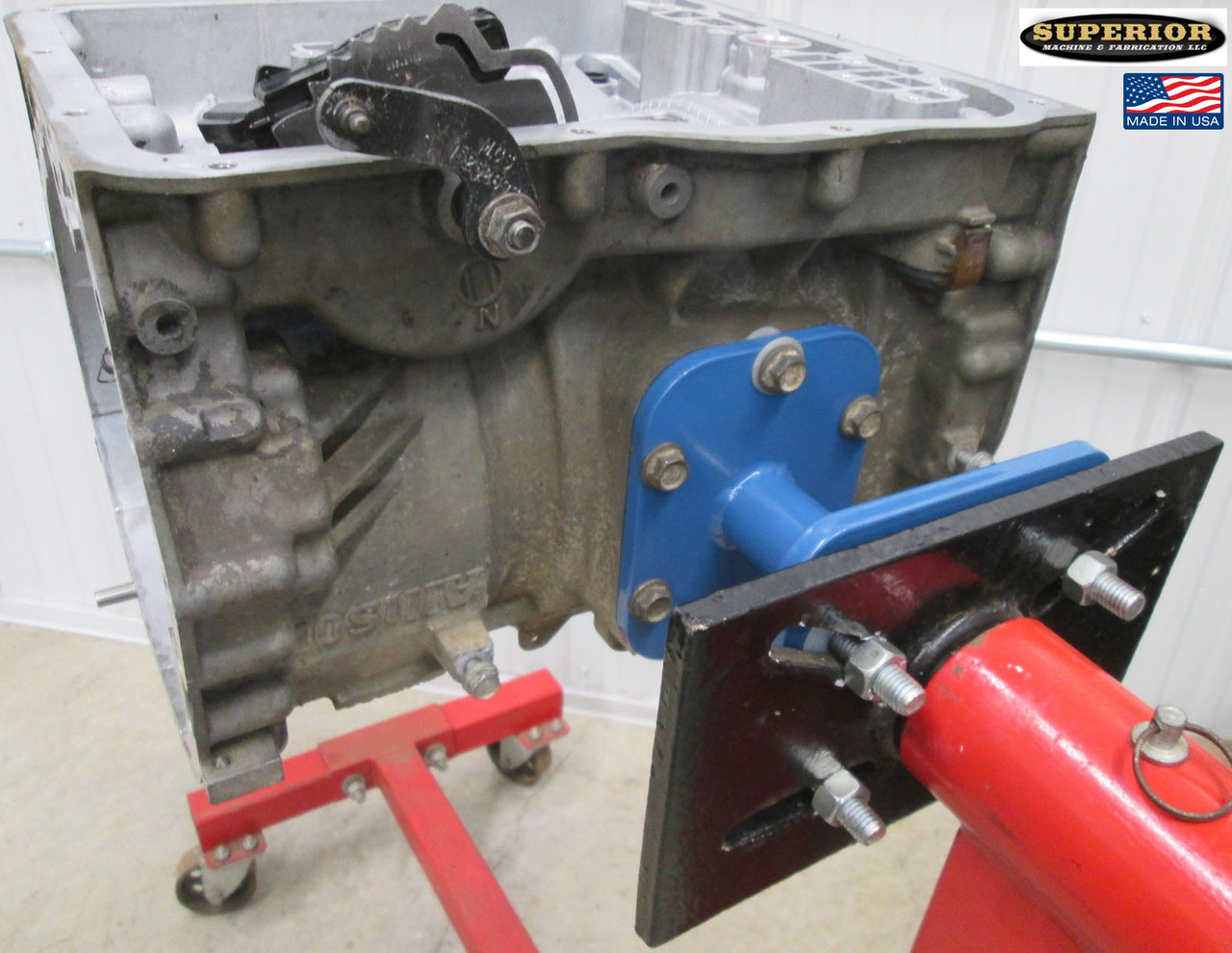

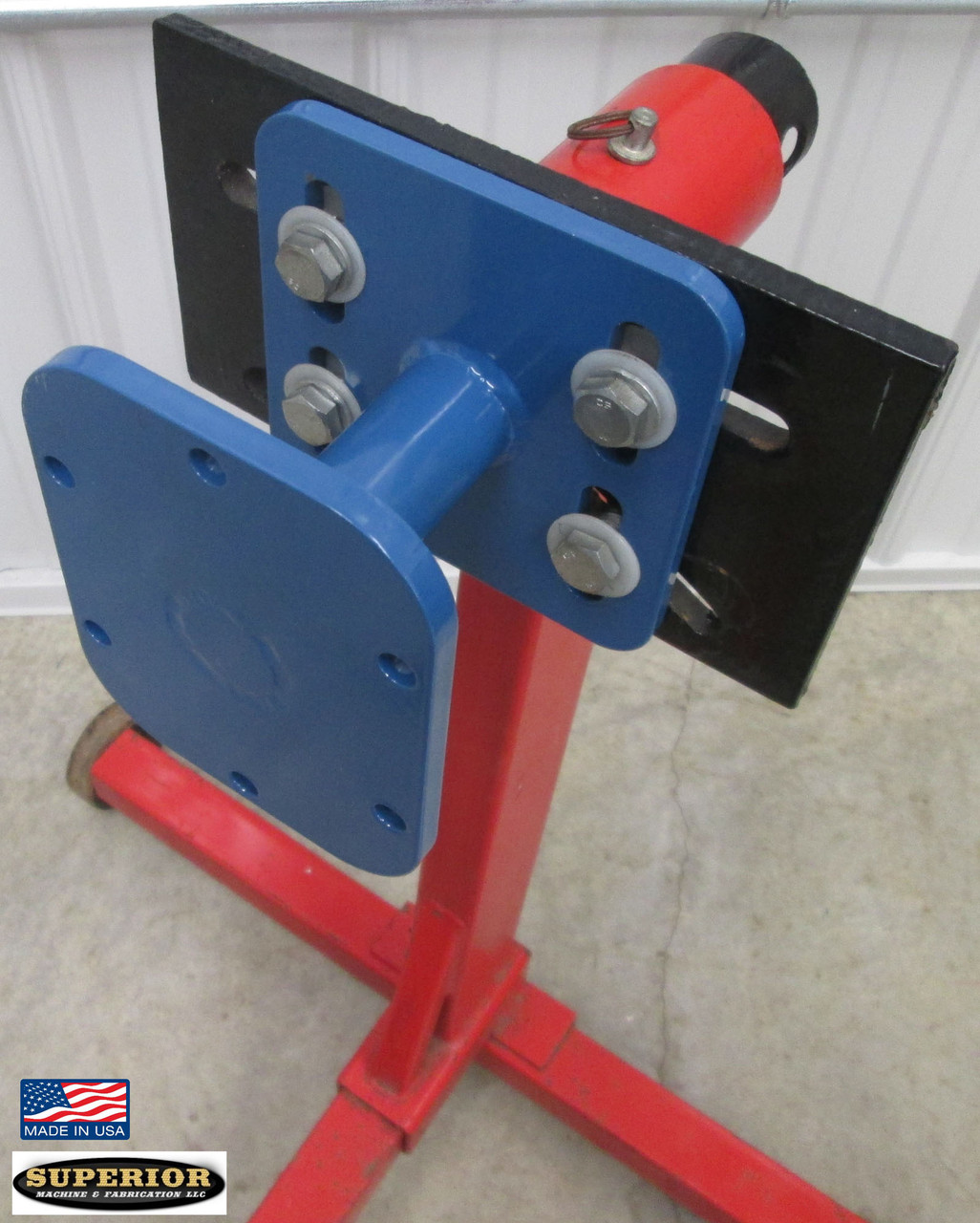

Heavy-duty PTO cover holding fixture that mounts a transmission or transfer case to an engine stand. It fits any transmission or transfer case with a standard 6 bolt, 6 ¼ in x 5 in (approx.) PTO cover and housing provision.
Specifications
| PTO pattern | Standard 6 bolt, 6 ¼ in x 5 in (approx.) |
|---|---|
| Fits | Allison 1000, 2000, 2100HS, 2400, HT740; NV4500; SM465 |

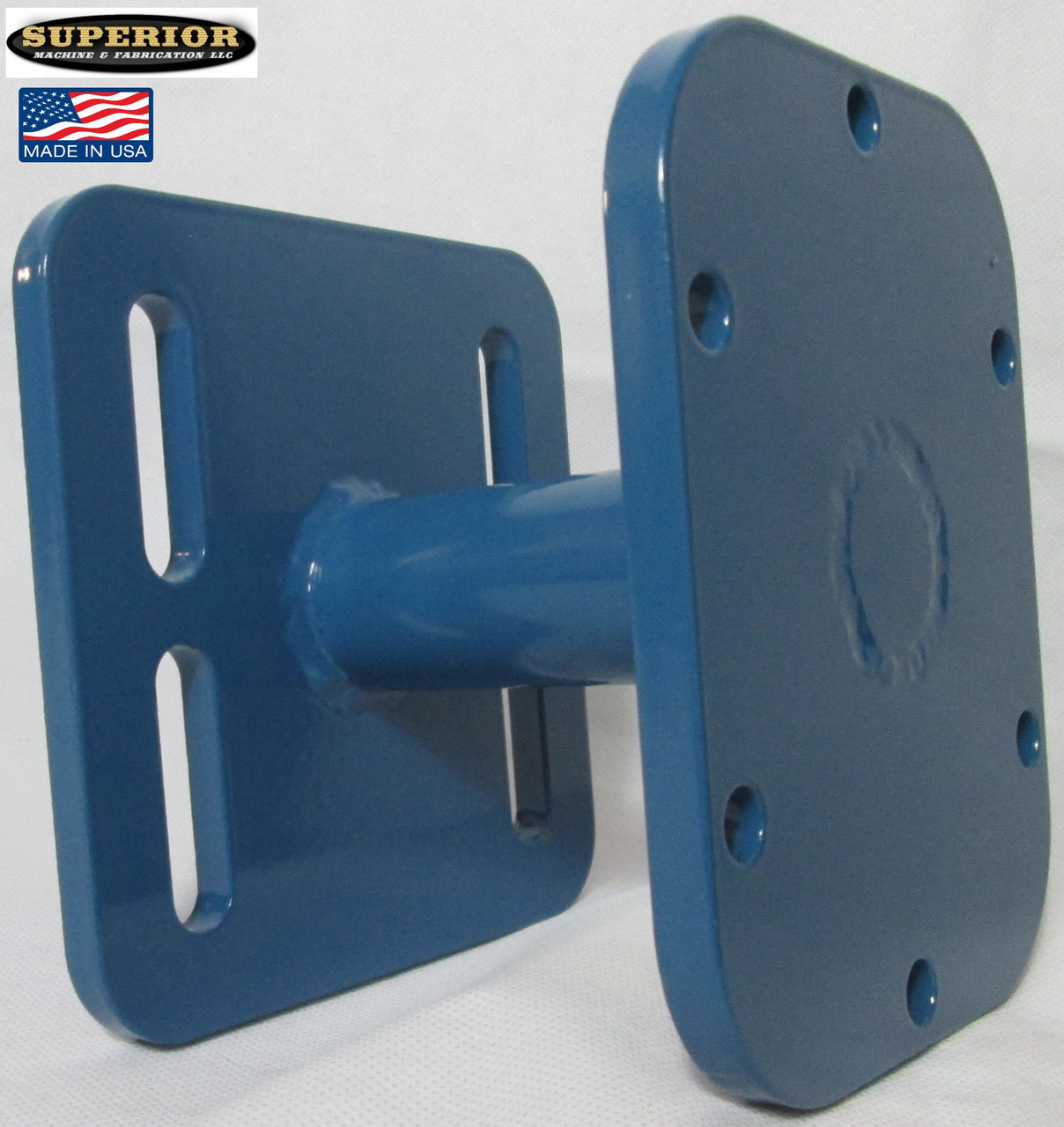

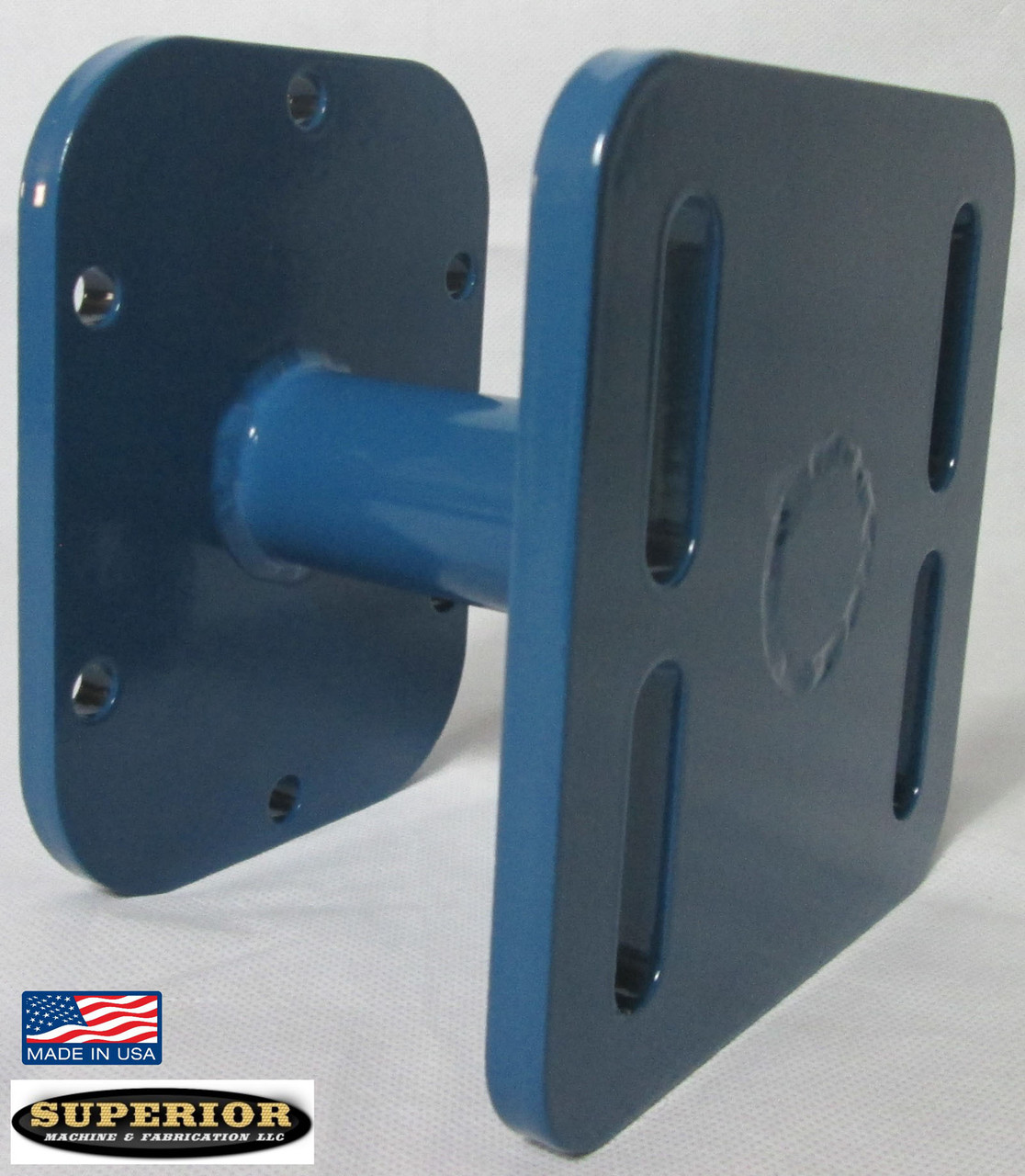

| Flanges | 3/8 in thick steel, CNC laser cut |
| Bar | 1 ½ in solid round |
| Finish | Machine blue satin powder coat |
About this fixture
It works with Allison 1000, 2000, 2100HS, 2400 and HT740 automatic transmissions and New Venture NV4500 and Saginaw Muncie SM465 manual transmissions, and bolts to most common engine stand heads.
It is fabricated from 3/8 in thick CNC laser-cut steel flanges and 1 ½ in solid round bar, with a machine blue satin powder coated finish. 100% Made in the USA.
