Product Description

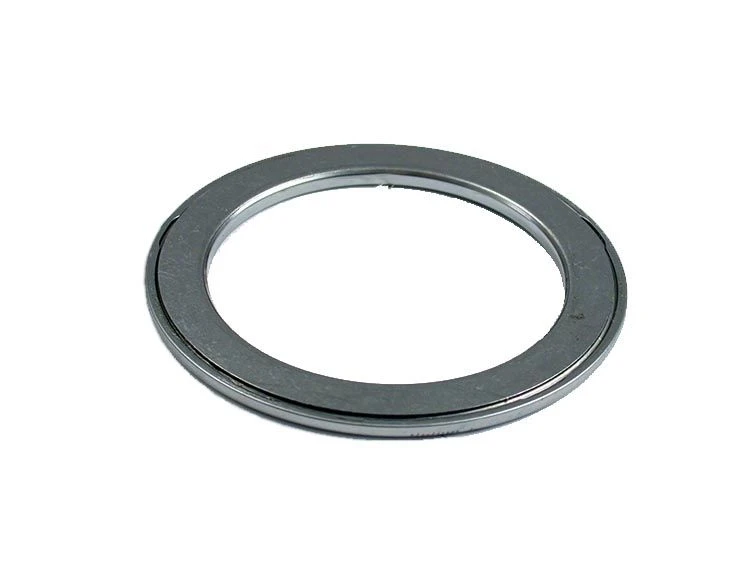

Sonnax part number: 22556-BRG
Our SKU: S22257
Fits: A727, 48RE, 46RH, 47RH, 46RE, 47RE
Our SKU: S22257
Fits: A727, 48RE, 46RH, 47RH, 46RE, 47RE
Package Quantity: 3
In listed Chrysler transmissions, the inner race or hub of the one-way roller clutch may come into contact with and cause wear to the back of the transmission case. This rearward movement of the hub is primarily a result of excessive endplay. To protect the case from further wear and eliminate excessive endplay, install Sonnax case repair bearing 22556-BRG. This repair bearing requires that the case be machined using a milling machine with a rotary table. Late cases will require machining of the reverse drum.
- Salvages hard-to-find expensive cases
- Eliminates excessive endplay
- Prevents further wear
Specs
- Bearing Style: Enclosed
- Material: Hardened Steel
- Outer Dia.: 3.384"
- Inner Dia.: 2.500"
- Thickness: 0.150"
Symptoms
- Damaged case
- Output & planet assembly wear
- Output & planet assembly failure
Cause
The inner race of the one-way roller clutch comes in contact with the case, causing damage.
Correction
Sonnax case repair bearing saves expensive cases and prevents further case damage.
Product Videos
Custom Field
Transmission Model(s) A518, A618, 48RE, A727
Manufacturer Part # 22556-BRG
