Product Description

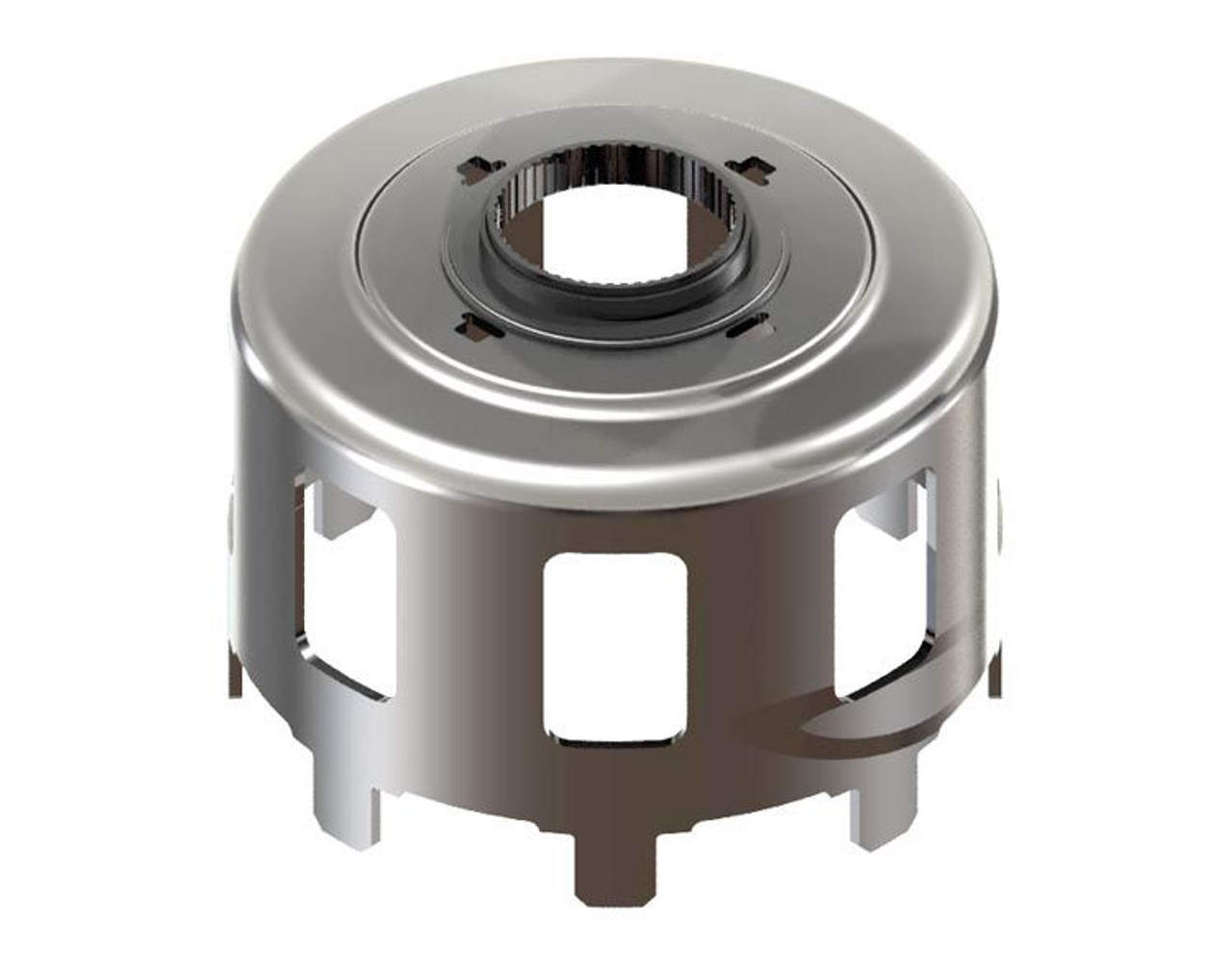

Sonnax 700R4/4L60E/4L65E/4L70E SmartShell® Heavy Duty Reaction Shell Kit
Part No. 77749-02K
Solves Multiple Problems in All Performance Applications
In GM 4L60, 4L60-E, 4L65-E and 4L70-E units, bulky aftermarket shells always fall short when splines continue to strip and the shells break under stress. A chronic problem with both OE and thicker aftermarket shells is failure of the rear planetary bearing. From daily jobs to extreme builds, the Sonnax SmartShell heavy-duty reaction shell kit 77749-02K is the only way to prevent shell failure AND protect the bearing.

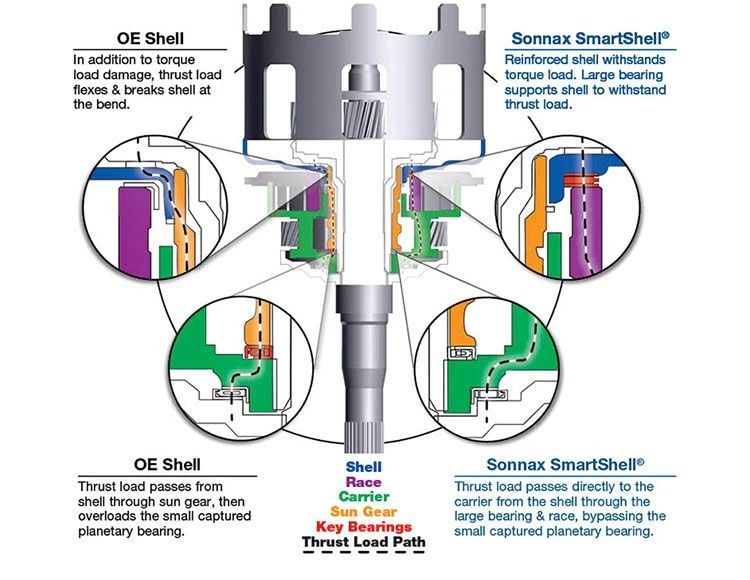

The SmartShell avoids the weight found in traditional, heavy-duty aftermarket shells thanks to a unique combination of improved design and manufacturing for a super strength shell that's only slightly bulkier than OE. To prevent thrust loads from overwhelming the captured planetary bearing, the SmartShell features a larger bearing and custom roller clutch race. These parts re-route thrust loads through the carrier, completely bypassing the delicate bearing.
- Stops spline stripping
- Prevents hub breakage
- Eliminates planetary bearing failure

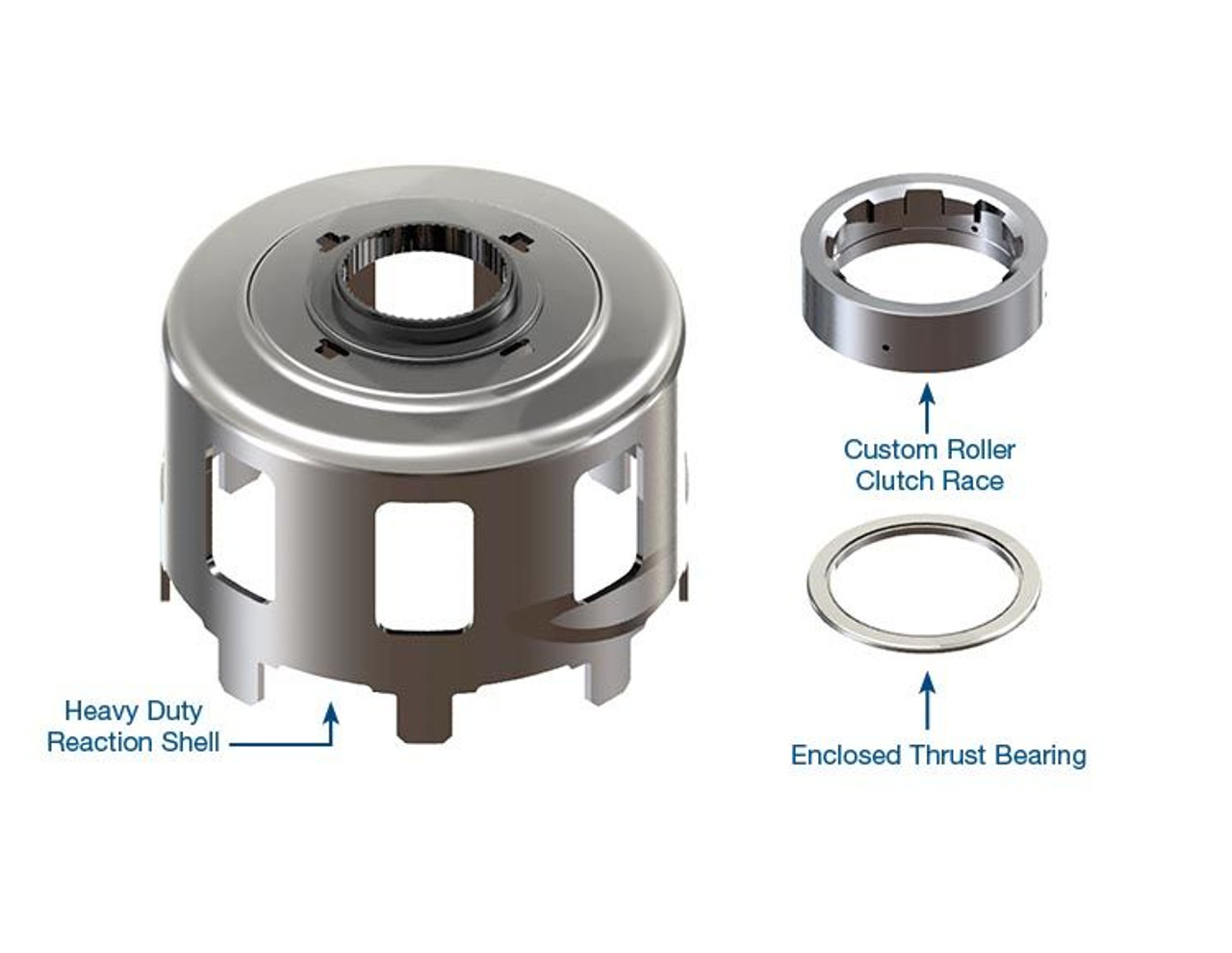

- Heavy Duty Reaction Shell
- Enclosed Thrust Bearing
- Custom Roller Clutch Race
