Product Description
Fits: 6R75, ZF6HP19, ZF6HP26, ZF6HP32, 6R80 (2009–2014), 6R60
Fits 6R80 '09-'14. Does not fit units with a 053 separator plate.

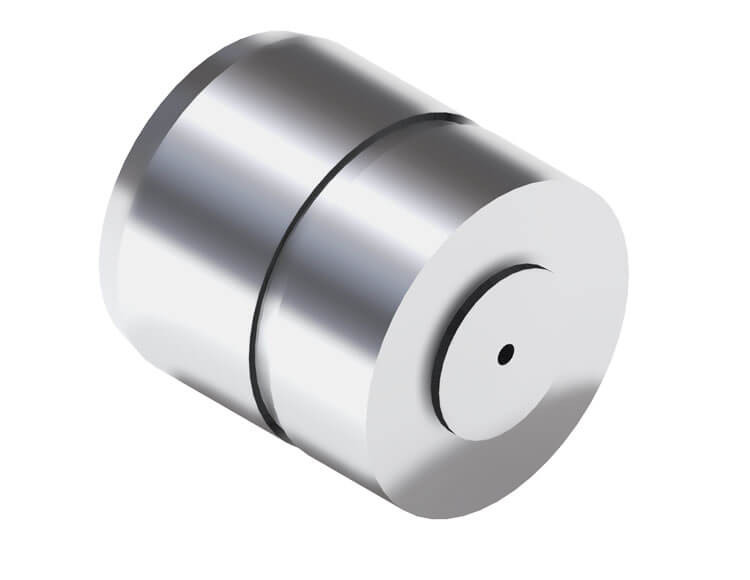

Wear is commonly found at different areas in the ZF6HP19/26/32 (Gen. 1) and Ford 6R60, 6R75 and 6R80 pressure regulator bores. When the sleeve is worn, line pressure balance fluid will leak to exhaust, causing high or inconsistent pressure. When wear is limited to the sleeve, the Sonnax pressure regulator sleeve 95740-03 will restore valve-to-sleeve clearances so the pressure regulator valve can maintain correct pressures. If the remainder of the pressure regulator bore is worn, consider Sonnax oversized pressure regulator valve kit 95740-01K.
- No machining required
- Alloy aluminum sleeve is significantly more wear-resistant than the OE sleeve
- Drop-in Zip Valve® installs quickly and easily
Ford 6R80, 6R100 Valve Body Layout

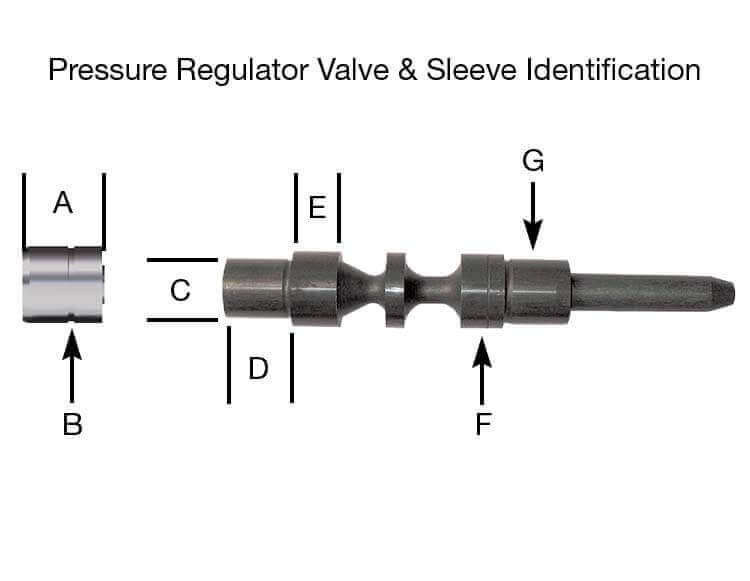

| Application | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| ZF6 Gen. 1, 6R60, 6R75, 6R80 ('09–'14) | .645" | .629" Dia. | .495" Dia. | .568" | .378" | .629" Dia. | .550" Dia. |
| ZF6 Gen. 1 w/ 053 Separator Plate | .725" | .657" Dia. | .511" Dia. | .649" | .378" | .657" Dia. | .586" Dia. |
| ZF6 Gen. 2 | .804" | .629" Dia. | .511" Dia. | .725" | .418" | .629" Dia. | .562" Dia. |
| 6R80 ('15-Later), 6R100 | .645" | .629" Dia. | .511" Dia. | .568" | .378" | .629" Dia. | .550" Dia. |
Notes
Kit is NOT compatible with ZF6HP19/26/32 (Gen.1) units with an 053 separator plate code or ZF6HP21/28/34 (Gen.2) units. To differentiate between Gen. 1 and Gen. 2 valve bodies, see ZF Identification Guide.
Valve Body Layout
Sonnax valve body layouts provide a detailed overview of individual units making it quick and easy to determine what’s available for the specific valve body you’re working on. See all Sonnax valve body layouts.

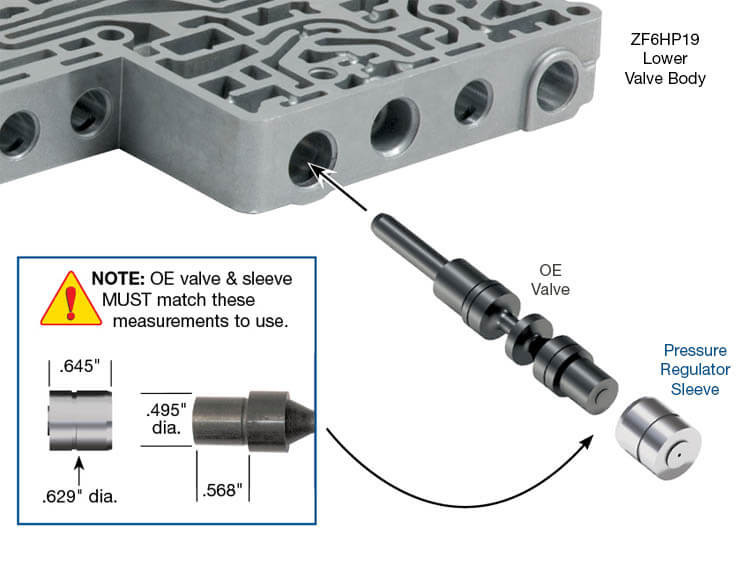

ZF6HP19/26/32 (Gen. 1) without 053 Separator Plate Valve Body Layout
Warning

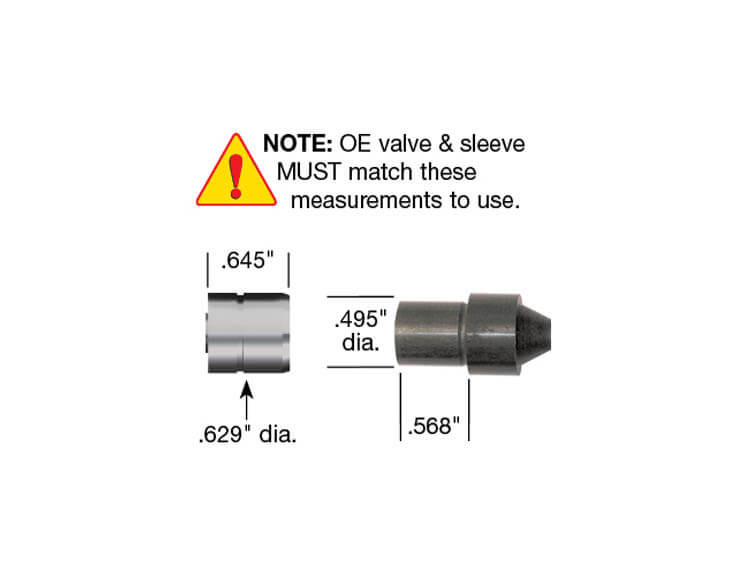

Verify OE valve & sleeve measurements before use.
There are some small diameter and length differences that can cause fit and pressure issues if mismatched into the wrong application. It is recommended to measure to verify that the correct OE or replacement part is fit into the appropriate application during rebuild.
Symptoms
- Broken parts due to excessive line pressure
- High line pressure
- Erratic line pressure
- Restricted converter/lube flow
Cause
Excess valve and bore clearance allows critical line pressure balance fluid to cross-leak to exhaust, causing high or erratic line pressure.
Correction
Sonnax drop-in, direct-replacement pressure regulator sleeve addresses sleeve wear and circuit integrity of line pressure balance in the pressure regulator circuit.
