Product Description
Fits: ZF6HP19, ZF6HP26, ZF6HP32, 6R80 (2009–2014), 6R60, 6R75
Cannot be used on 053 separator plate applications.
- Tooling:
- VACTEST-01K
A worn valve or valve body bore can result in incorrect pressures in the transmission, which may lead to poor performance or failure of the transmission. With the proper equipment, vacuum testing is an efficient way to determine if a valve/bore is worn or to verify if a valve repair was performed correctly. It’s an easy diagnostic technique that yields repeatable, numerical results for comparison and documentation.

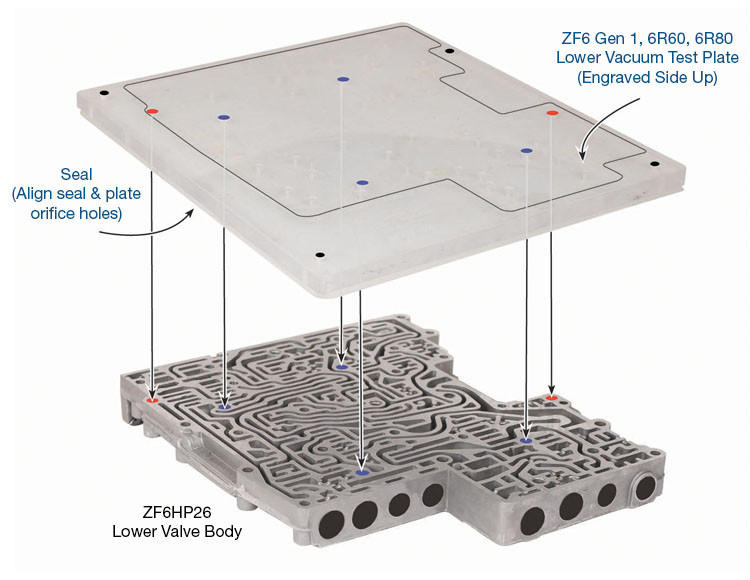

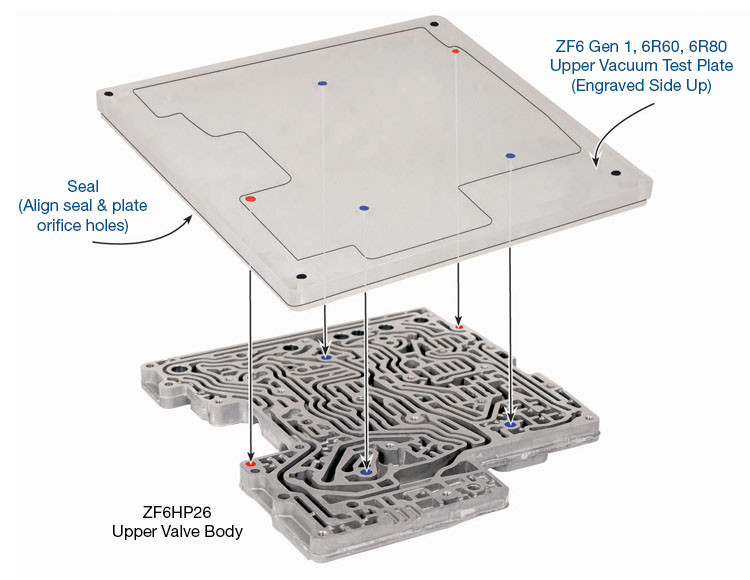

Sonnax vacuum test plate kit 95740-VTP1 for Ford 6R60, 6R75, 6R80 (2009-2014, and ZF6HP19/26/32 (Gen. 1) units is an ideal tool for fast, easy testing. The plate and seal fit securely over the entire valve body casting to seal all the critical valve body passages at once. Strategically located test ports and exhaust holes allow all key casting areas to be vacuum tested quickly by just moving the vacuum test tip.
- Clear test plate and silicone pad seal casting for quick, easy testing
- Open ports at key areas identify recommended test locations
- Easy-to-follow instruction booklet identifies ports, valves, symptoms of wear and the right Sonnax parts for repair
Contents
- Washers (7)
- Seals (2)
- Bolts (7)
- Alignment Pins (4)
- Push Pins (12) 4 Extra
- Upper Plate
- Lower Plate
- Wing Nuts (7)
- Test Spring
- Test End Plug
Valve Body Layout
Sonnax valve body layouts provide a detailed overview of individual units making it quick and easy to determine what’s available for the specific valve body you’re working on. See all Sonnax valve body layouts.
ZF6HP19/26/32 (Gen. 1) without 053 Separator Plate Valve Body Layout
Ford 6R80, 6R100 Valve Body Layout
