68RFE Friction Clutch Plate Module (2007-UP) Raybestos

Product Description

Friction kit GTP assembles from Raybestos plates for the Dodge heavy-duty 68RFE (2007-UP); the list below is exactly what is in the box. For the high-capacity overdrive version, see RCP96-232-ODHP, and for Stage-1, see RCPS-232.

High Energy frictions in the 2C, 4C, low/reverse and reverse clutches, with GPZ single-sided plates in the underdrive and overdrive clutches for extra heat and stress capacity. Made in USA.

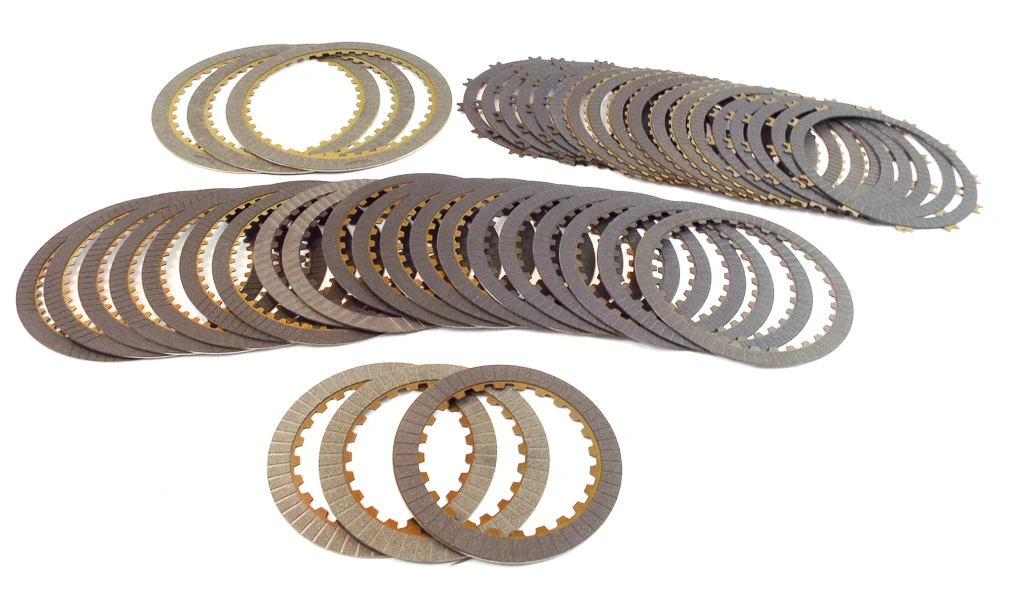

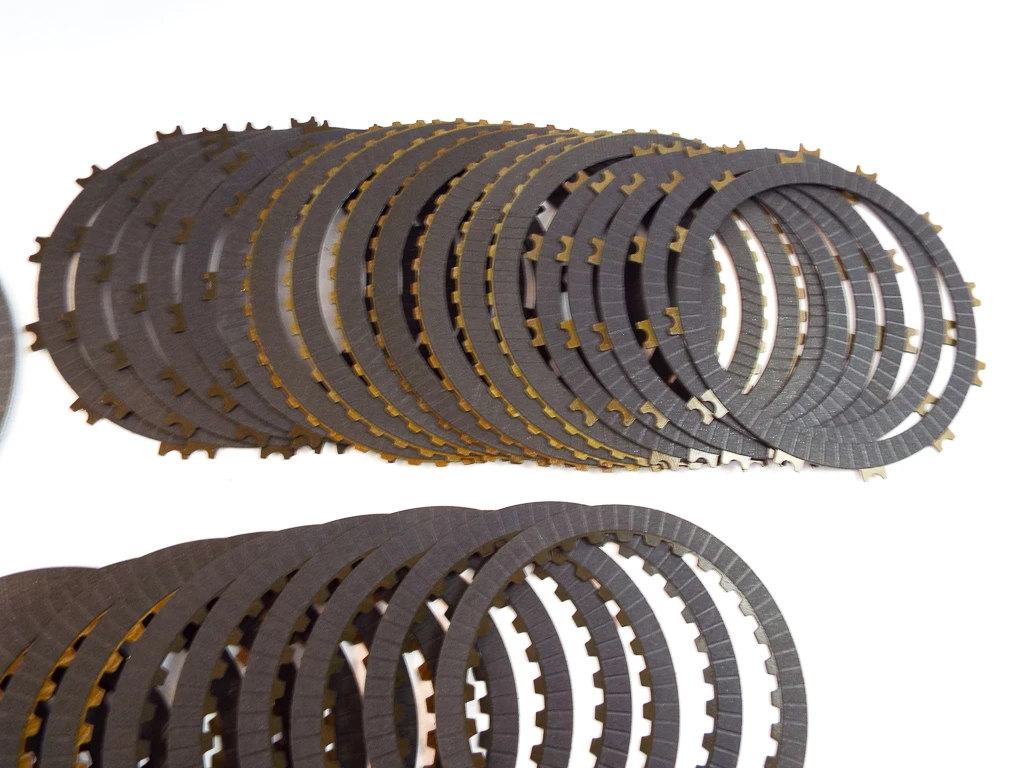

Contents

• 3 x 2nd clutch (2C), High Energy: .091" thick, 8.11" OD, 40 teeth (R559220)
• 6 x Overdrive, single-sided, outside splines, GPZ: .051" thick, 6.874" OD, 12 teeth (GPZ136)
• 7 x Low/Reverse, single-sided, OD spline, High Energy: .062" thick, 7.077" OD, 45 teeth (R559240)
• 5 x Underdrive, single-sided, outside splines, GPZ: .058" thick, 6.874" OD, 12 teeth (GPZ126)
• 7 x Low/Reverse, single-sided, ID spline, High Energy: .062" thick, 6.81" OD, 48 teeth (R559235)
• 2 x Reverse, High Energy: .078" thick, 6.378" OD, 31/32 teeth (R559210)
• 5 x Underdrive, single-sided, inner splines, GPZ: .058" thick, 6.378" OD, 32 teeth (GPZ121)
• 6 x Overdrive, single-sided, GPZ: .051" thick, 6.378" OD, 32 teeth (GPZ131)
• 3 x 4th clutch (4C), High Energy: .091" thick, 5.335" OD, 24 teeth (R559225)
