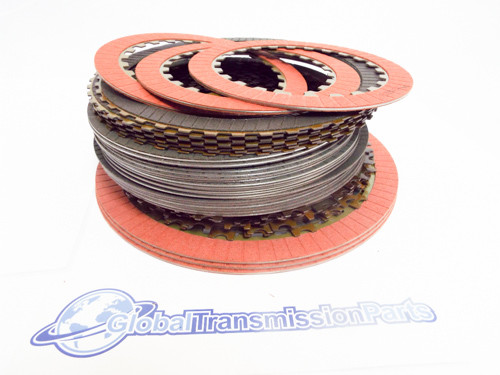

68RFE Stage-1 Red Plate Friction Clutch Module (2007-UP) Raybestos

Product Description

Stage-1 friction kit assembled from Raybestos plates for the Dodge 68RFE (2007-UP) in RAM 2500 & 3500 6.7L diesel trucks. The list below is exactly what is in the box.

For the high-capacity overdrive version, see RCPS-232-ODHP; for GPZ frictions, see RGPZ-6800.

Specifications

About this kit

Stage-1 red frictions in the 2C and 4C clutches add holding capacity and heat resistance over stock tan or High Energy plates, for heavy towing without stepping up to GEN1 Blue Plate. The underdrive, low/reverse and reverse clutches use High Energy plates, and the overdrive uses OE-replacement plates.

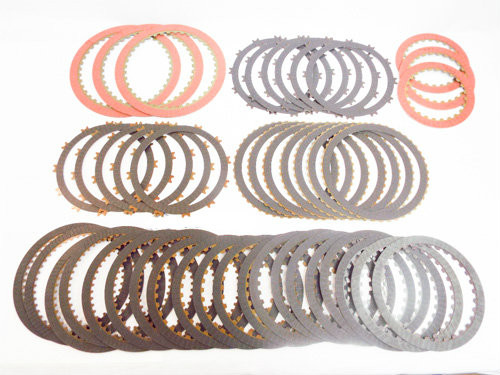

What's included

• 3 x 2C clutch, Stage-1: .090" thick, 8.11" OD, 40 teeth (R600888)
• 6 x Overdrive, single-sided, OD spline, OE replacement: .051" thick, 6.874" OD, 12 teeth (R559260)
• 7 x Low/Reverse, single-sided, OD spline, High Energy: .062" thick, 7.077" OD, 45 teeth (R559240)
• 5 x Underdrive, single-sided, OD spline, High Energy: .058" thick, 5.438" OD, 12 teeth (R559250)
• 7 x Low/Reverse, single-sided, ID spline, High Energy: .062" thick, 6.81" OD, 48 teeth (R559235)
• 2 x Reverse, High Energy: .078" thick, 6.378" OD, 31/32 teeth (R559210)
• 5 x Underdrive, single-sided, ID spline, High Energy: .058" thick, 6.378" OD, 32 teeth (R559245)
• 6 x Overdrive, single-sided, ID spline, OE replacement: .051" thick, 6.378" OD, 32 teeth (R559255)
• 3 x 4C clutch, Stage-1: .090" thick, 5.335" OD, 24 teeth (R600890)
