Product Description
Part number: SMAF-016E
Fits: 68RFE / 66RFE
Fits: 68RFE / 66RFE

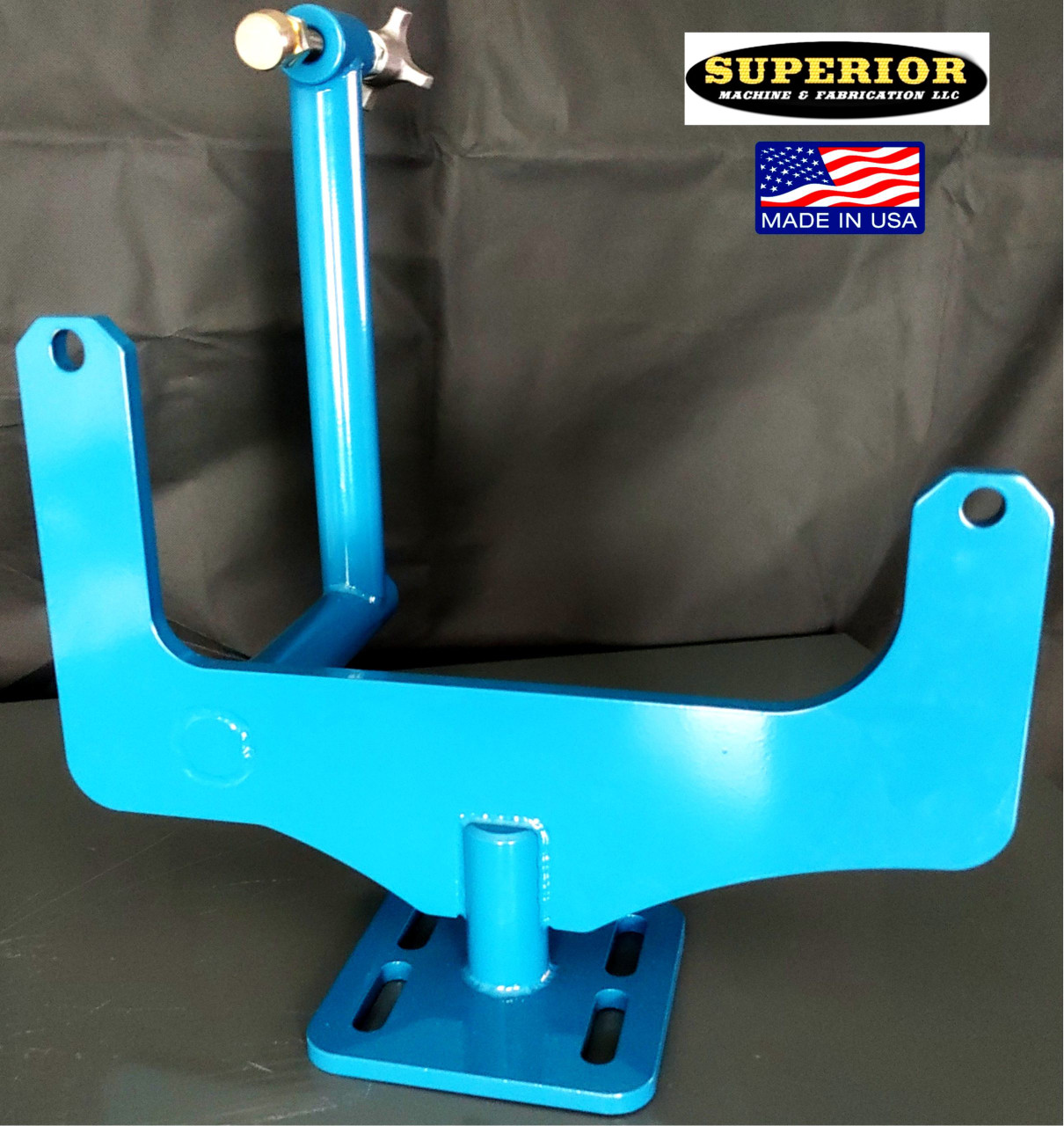

Heavy duty holding fixture for Dodge/Ram 68RFE and 66RFE transmissions. It bolts to the factory mounting ears cast into the sides of the OEM case and bolts easily to common engine stand heads.
Specifications
| Fits | 68RFE, 66RFE |
|---|---|
| Flanges | 1/2 in thick steel, CNC laser cut |
| Frame | 1 ½ in steel round bar and tubing |
| Finish | Machine blue smooth satin powder coat |
About this fixture

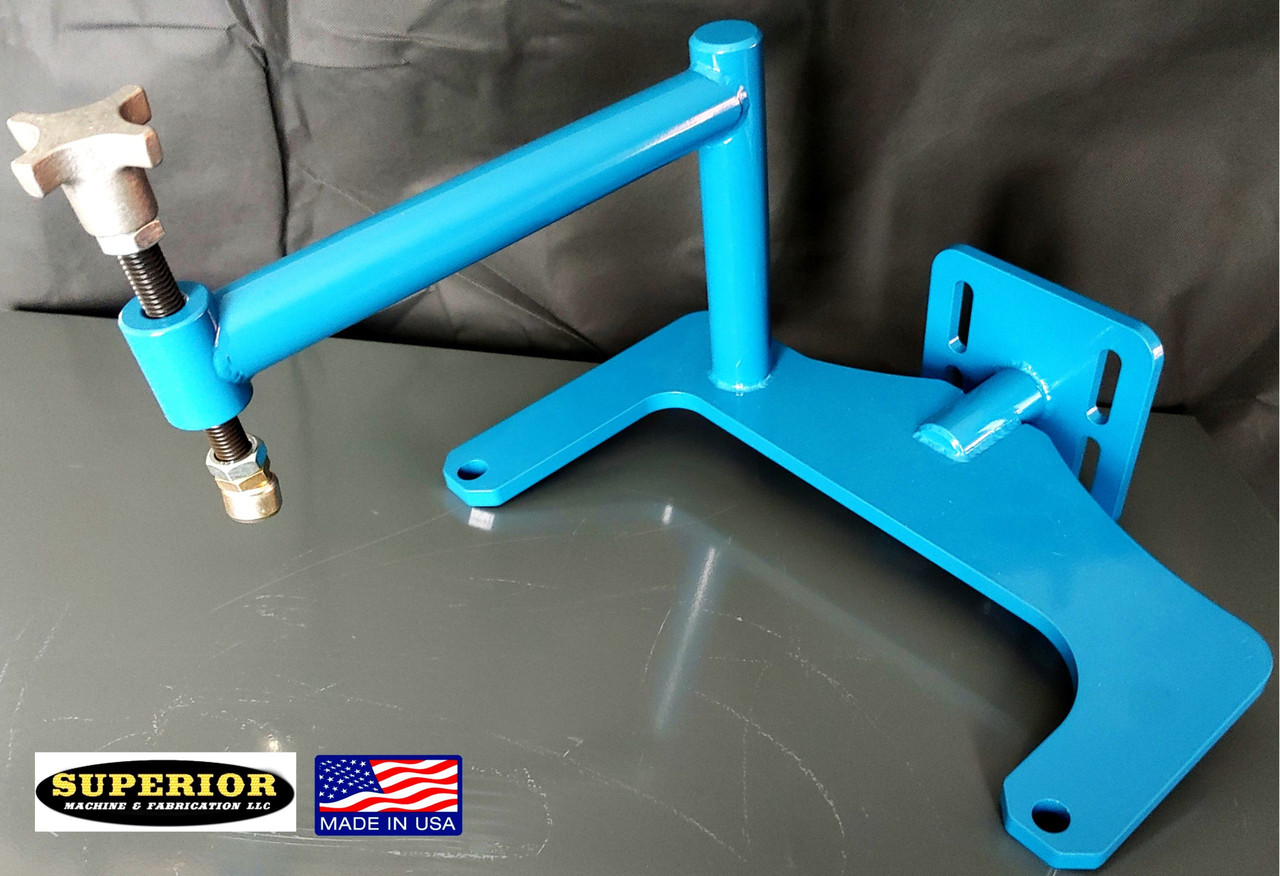

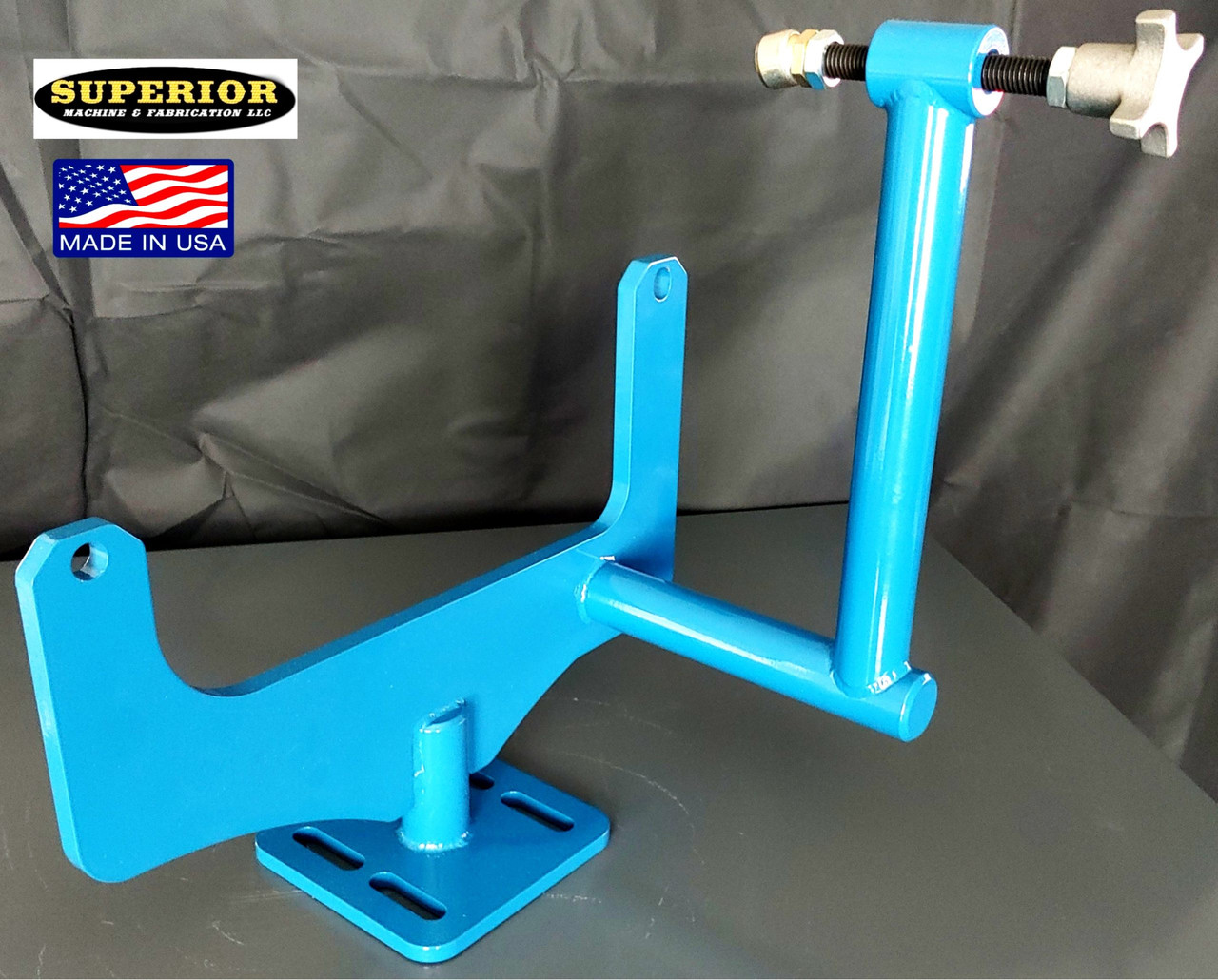

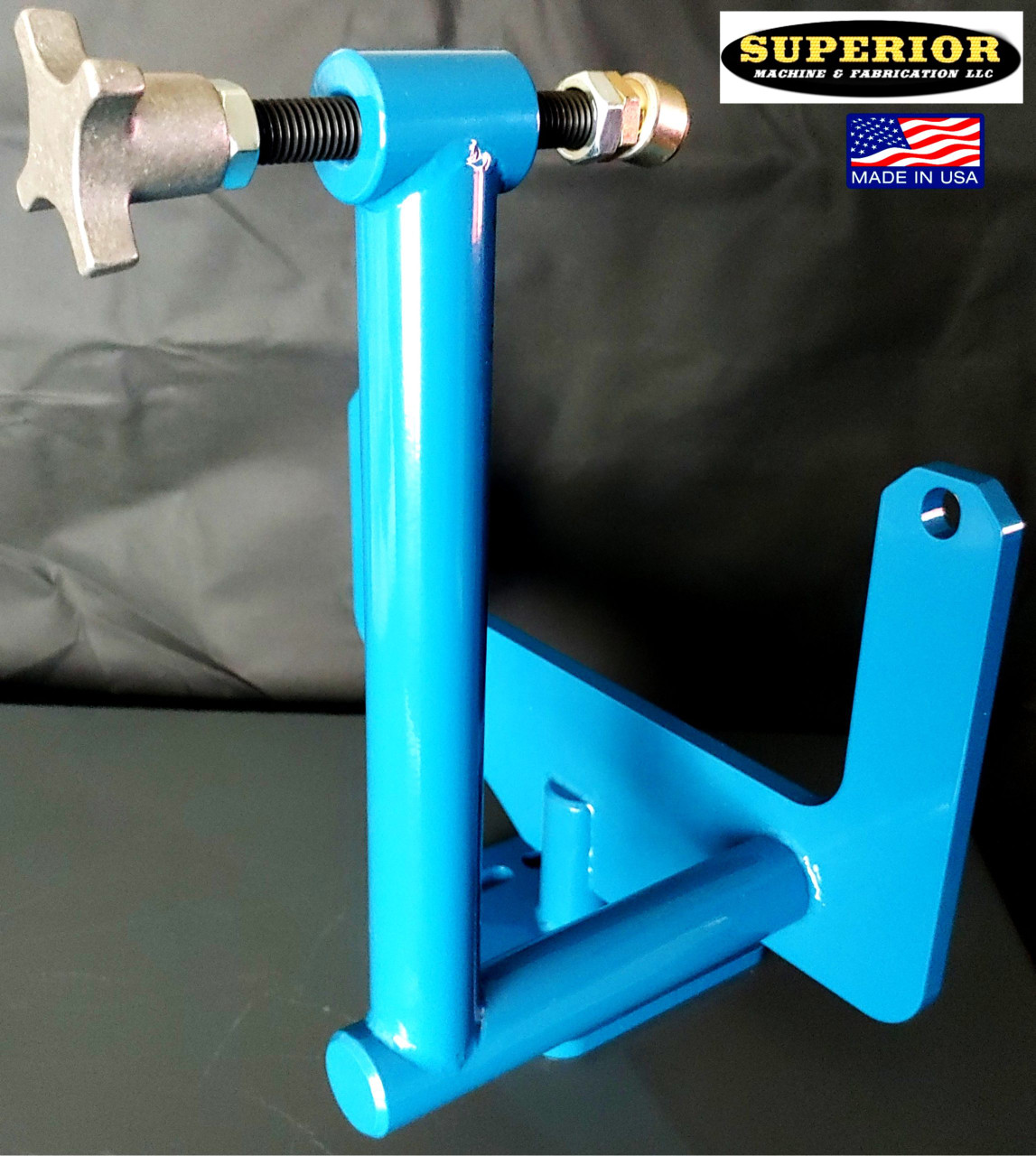

The support arm carries the weight of a fully assembled transmission on hardened tool steel clamping screws with cast aluminum adjusting knobs. The top clamping screw has a hardened steel swivel pad to prevent damage to aluminum cases.
The fixture is fabricated from 1/2 in thick CNC laser-cut steel flanges and 1 ½ in steel round bar and tubing, with a machine blue smooth satin powder coat finish. 100% made in the USA.
Product Videos
Custom Field
Transmission Model(s) 68RFE, 66RFE
