Product Description
Part number: CV-CR7220
Fits: 66RFE / 65RFE
Fits: 66RFE / 65RFE

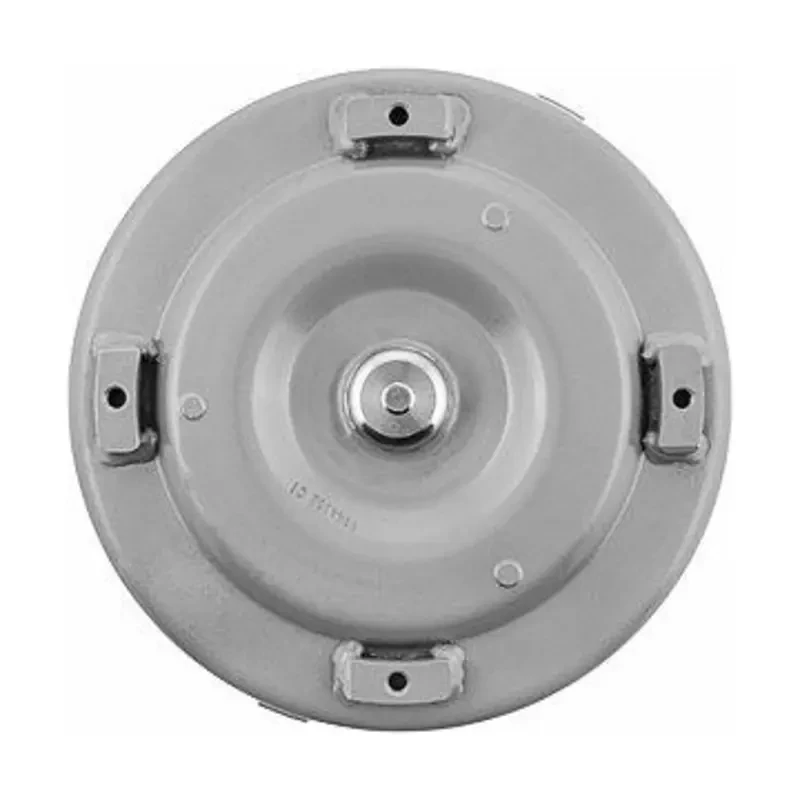

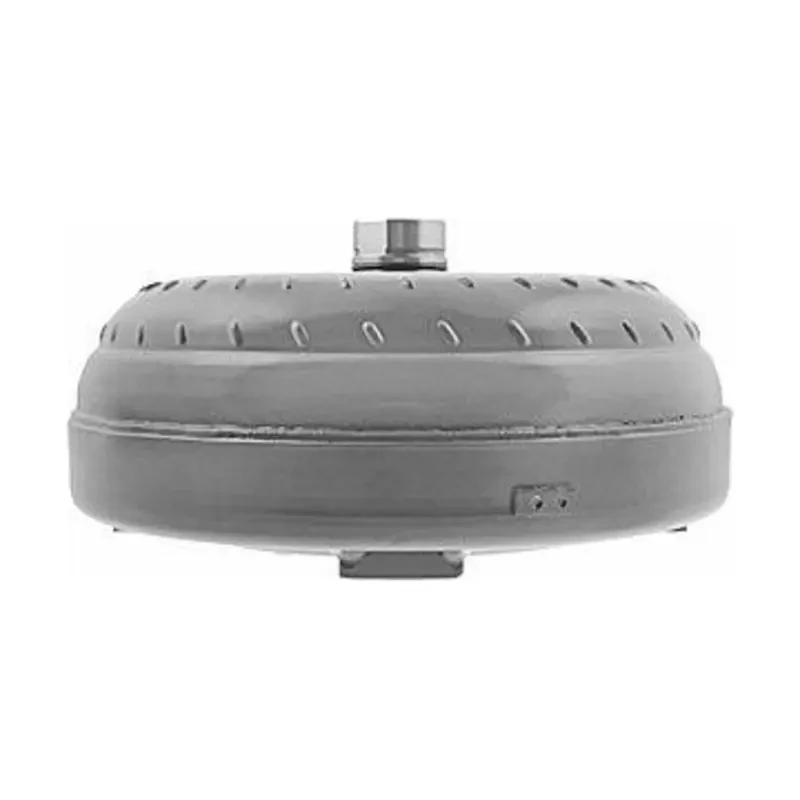

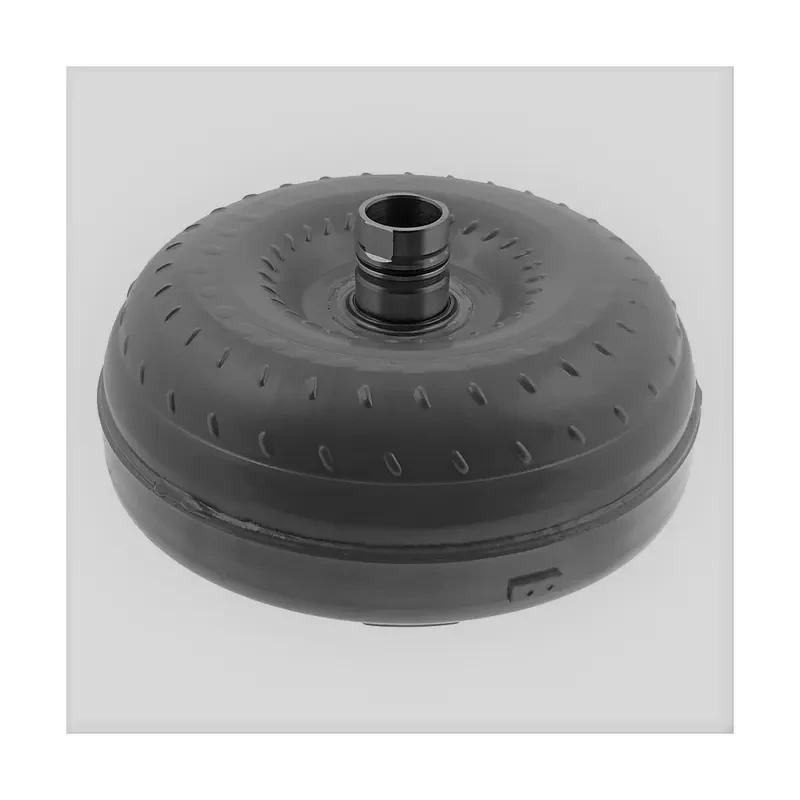

Remanufactured lock-up torque converter for 66RFE and 65RFE transmissions, stamped code 659AB. 12.2 in body diameter, low stall, with a 4 flats with groove hub and 29 turbine splines.
Specifications
| Fits | 66RFE, 65RFE |
|---|---|
| Stamped code | 659AB |
| Body diameter | 12.2 in |
| Bolt circle | 10 in |
| Mounts | 4, pad |
| Hub type | 4 flats with groove |
| Hub to thrust surface | 2.22 in |
| Pilot length | 0.86 in |
| Pilot OD major | 1.815 in |
| Pump stall | Low |
| Lock-up | Yes |
| Billet cover | No |
| Impeller brazed | Yes |
| Stator codes | 4753662AA |
| Stator rotation | Clockwise |
| Stator spline count | 27 |
| Stator sprag | Rollers |
| Stator vane count | 23 |
| Turbine internal spline count | 29 |
| Turbine to pump clearance | 0.135 |
| Ring gear | No |
| Dimensions | 13.5 x 13.5 x 7.375 in (L x W x H) |
| Weight | 45 pounds |
| Country of origin | US |
Notes
Part number: CV-CR7220 Price includes $50 refundable core charge.
Product Videos
Custom Field
Transmission Model(s) 66RFE, 65RFE
