Product Description
Fits: 5R110W

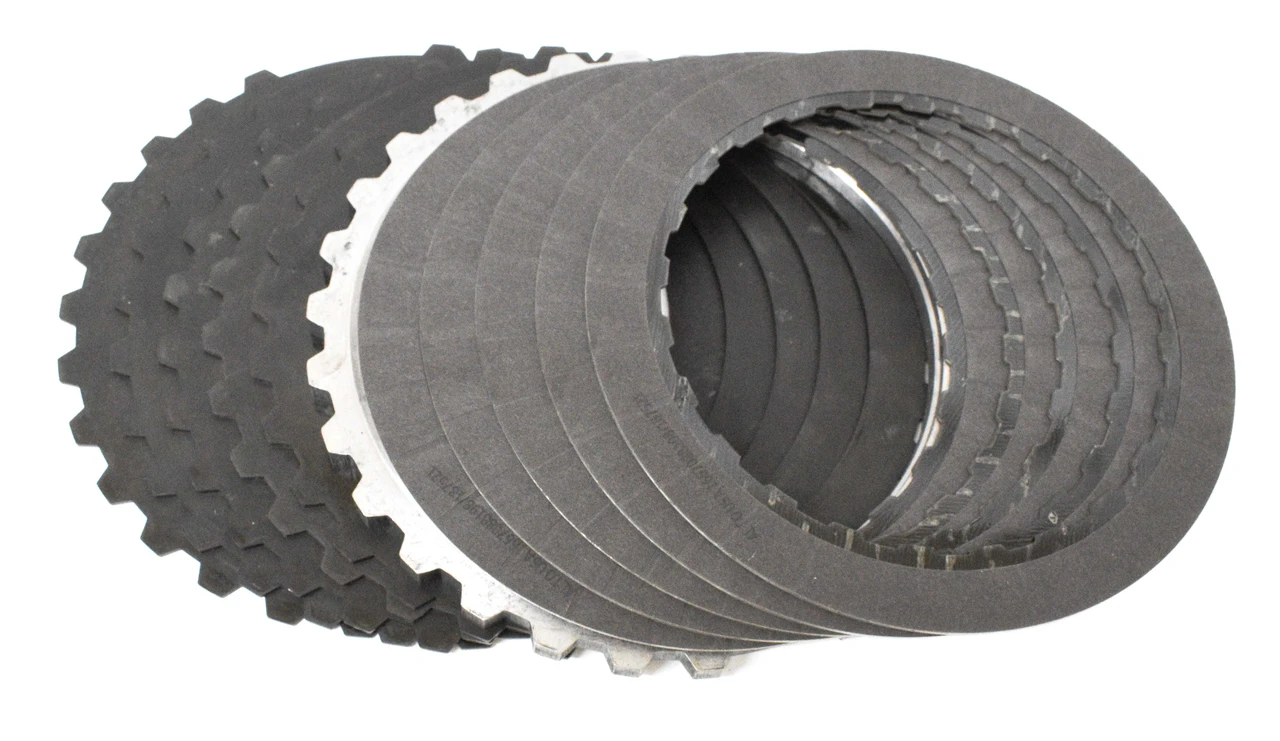

Alto intermediate clutch PowerPack for Ford 5R110W transmissions. It includes 5 G3 friction plates, 5 Kolene steel separator plates and a stepped pressure plate.
Specifications
| Fits | 5R110W |
|---|---|
| Clutch pack clearance | .035 in to .070 in (0.88 – 1.78 mm) |
| Clearance check tool | T89T-70010-F/T89T-70010-C-7700 |
Installation
Install the .461 in stepped pressure plate (item 3) into the case, step side down. Then alternate the .076 in friction plates (item 2) and .077 in Kolene steel plates (item 1), 5 of each, ending with a steel plate. Install the piston, return spring and snap ring into the center support, then install the center support into the case.
Apply regulated shop air to the clutch several times to seat the stack. Clearance should be .035 in to .070 in (0.88 – 1.78 mm). Check clearance with a dial indicator and tool T89T-70010-F/T89T-70010-C-7700 or equivalent.
Pre-soak the friction plates for at least 30 minutes in the ATF that will be used in the finished unit.
What's included
- (5) 166708B193 (.076 in) G3 friction plates (item 2)
- (5) 166709K195 (.077 in) Kolene steel separator plates (item 1)
- (1) 166765B (.461 in) stepped top/bottom pressure plate (item 3)
