Product Description
Part number: 1012-STO-Kit
Fits: 4L80E · 1996-UP
Fits: 4L80E · 1996-UP

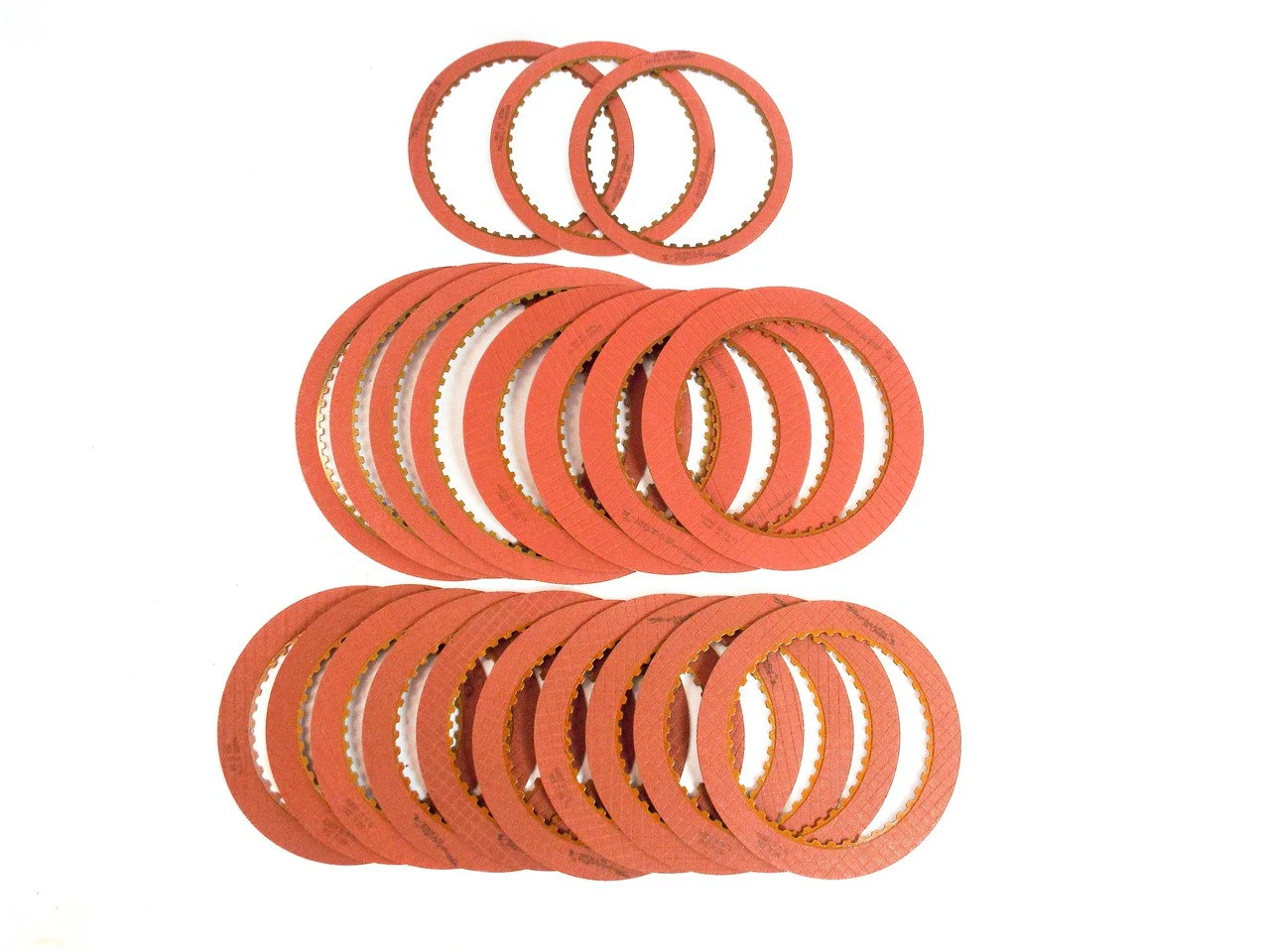

Stage-1 (red plate) friction kit for the GM 4L80E, 1996-UP, assembled from Raybestos plates. The contents list below is exactly what is in the box.
Specifications
| Fits | GM 4L80E |
|---|---|
| Years | 1996-UP |
| Friction material | Raybestos Stage-1 (red) |
| Recommended use | Heavy-duty towing, street rods, tuner cars and mild street/strip use |
About Stage-1 frictions
Stage-1 (red) performance frictions hold more torque and take more heat than stock tan or High Energy plates, a step below the Gen1 Blue Plate Special clutch. They suit GM trucks towing heavy loads as well as performance builds.
For 1991-1995 units, see 1012A-STO-Kit. For racing, see RCPBP-36-Kit.
What's included
- 10 x Forward/Direct, Stage-1: .080" thick, 5.895" OD, 42 teeth (R600081)
- 4 x 4th clutch, Stage-1: .080" thick, 7.3" OD, 60 teeth (R600300)
- 3 x Overrun, Stage-1: .079" thick, 5.376" OD, 45 teeth (R600310)
- 4 x Intermediate (.070"), Stage-1: .070" thick, 6.56" OD, 47 teeth (R600290)
Instructions and resources
Product Videos
Custom Field
Transmission Model(s) 4L80E
Year Range 1996-UP
