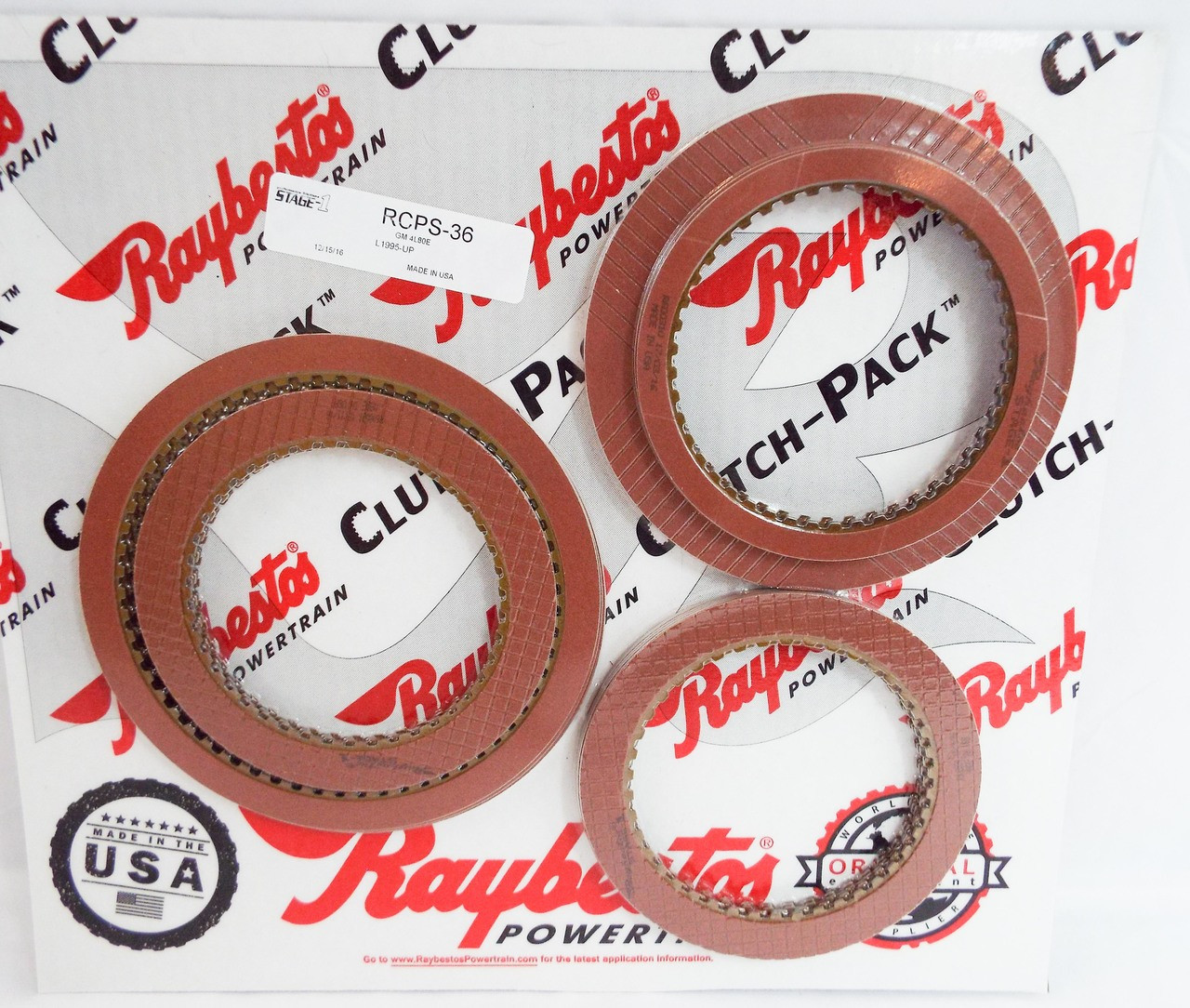

4L80E Raybestos Stage-1 Clutch Module (1991-1995)

Product Description

Stage-1 (red plate) friction kit for the GM 4L80E, 1991-1995, assembled from Raybestos plates. The contents list below is exactly what is in the box.

Specifications

About Stage-1 frictions

Stage-1 (red) performance frictions hold more torque and take more heat than stock tan or High Energy plates, a step below the Gen1 Blue Plate Special clutch. They suit GM trucks towing heavy loads as well as performance builds.

For 1996-UP units, see 1012-STO-Kit. For racing, see RCPBP-31.

What's included

• 10 x Forward/Direct, Stage-1: .080" thick, 5.895" OD, 42 teeth (R600081)
• 4 x 4th clutch, Stage-1: .080" thick, 7.3" OD, 60 teeth (R600300)
• 4 x Intermediate (.090"), Stage-1: .090" thick, 6.56" OD, 47 teeth (R600090)
• 3 x Overrun, Stage-1: .079" thick, 5.376" OD, 45 teeth (R600310)

Instructions and resources

• 4L80E Stage-1 kit, 1996-UP (1012-STO-Kit)
• 4L80E Gen 2 Blue Plate racing module, early (RCPBP-31)
