Product Description

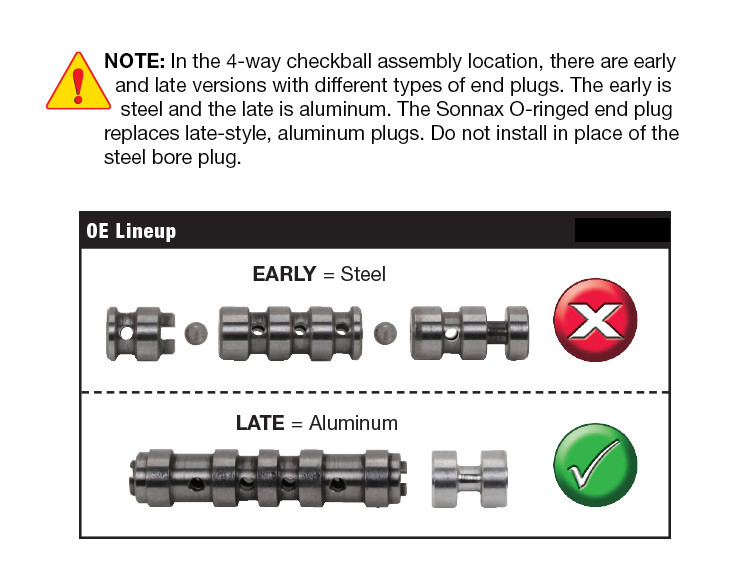

END PLUG FOR 4-WAY CHECKBALL ASSEMBLY LOCATION ONLY REPLACES LATE-STYLE, ALUMINUM PLUGS
UA80E UA80F UB80E UB80F O-Ringed End Plug Kit
No tooling required
The primary design function of the OE end plug in listed Toyota/Lexus transmissions is to prevent critical pressure loss by capping the bore. OE end plugs rely entirely on small clearances between the end plug and bore to confine hydraulic fluid under fluctuating pressure. End plugs are often tasked with a secondary role functioning as a spring stop or valve stop.
The repetitious and varying actions of fluid pressure, spring motion and valve impact cause wear at the end plug and bore mating surface and can distort the shape of the end plug. High-pressure fluid leaking through the clearance gap can, with time, erode the surface material of both end plug and bore. Eventually the cumulative loss of hydraulic integrity leads to low pressure in critical circuits. Complaints vary depending on the location of the worn end plug but are always related to pressure losses.
Sonnax O-ringed end plug kit 168740-10K replaces worn, distorted or eroded end plugs in Toyota/Lexus UA80E/F and UB80E/F series transmissions. Sonnax end plugs have an O-ring seal that reduces leakage further by blocking off worn areas of the bore which the new end plug alone could not seal.
- Minimal end plug-to-bore clearance with added O-ring for positive seal
- Drop-in Zip Valve™ parts install quickly and easily
Symptoms
- Poor shift quality
- Pressure loss
- Various concerns depending on location of leaking end plug
Cause
Worn, eroded end plugs allow loss of critical hydraulic pressure.
Correction
Sonnax drop-in O-ringed end plugs restore correct circuit pressures. The O-ring provides additional sealing to reduce hydraulic losses at critical circuits.
Contents
- End Plug Large
- O-Rings (2) Large, 1 Extra
- End Plugs (3) Small
- O-Rings (6) Small, 3 Extra
