Product Description
Sonnax part number: 34006-SP
THE HOUSING BORE SHOULD NOT MEASURE MORE THAN 2.1285'' IN DIAMETER FOR AN IDEAL FIT

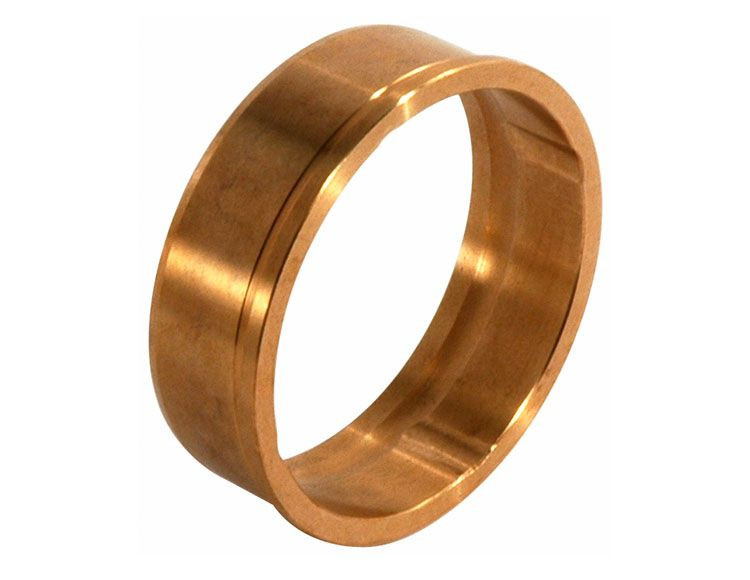

4L80E 4L85E TH400 Case Bushing
The OE case bushing in vehicles with a GM TH400, 4L80-E and 4L85-E transmissions tends to walk out of the housing bore. This leaves the output shaft unsupported, ruins the governor gear and can cause case damage. The no-walk flange feature of the Sonnax case bushing 34006-SP is specially designed to keep the bushing in the case bore.
- High-quality bronze
- Flange on the transmission case side prevents bushing from walking completely through the bore
- Flange accurately locates and helps retain the selective washer
- Machined oil grooves allow for a supply of lubricating oil to enter the extension housing as well as the transmission case.
Symptoms
- Bushing walks out
Cause
Lack of flange or stop surface on the case bushing.
Correction
Sonnax no walk-out case bushings are flanged to prevent movement in either direction.
Contents
- Bushing (1)
Specifications
- Material: Bronze
- Bushing Style: Precision
- Width: 0.630"
- Shaft Dia.: 2.006"
- Housing Bore: 2.129"
Product Videos
Custom Field
Transmission Model(s) TH400, 4L80E
