Product Description
Part number: AL031756HP
Fits: TH400 / 4L80E
Fits: TH400 / 4L80E

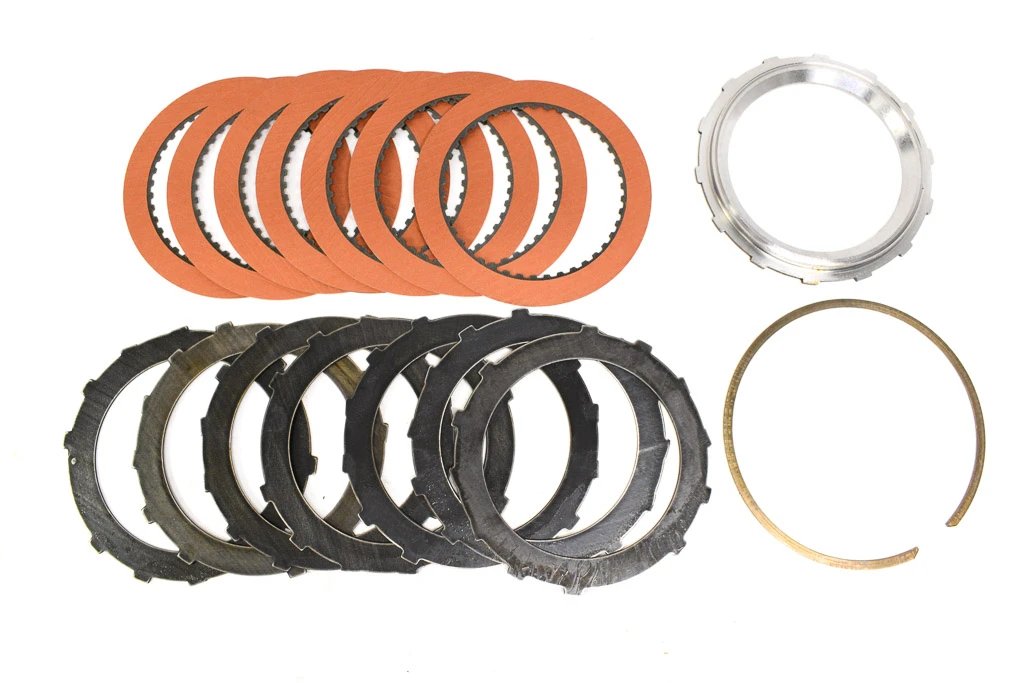

Direct clutch performance PowerPack for the Turbo 400 and 4L80E, made in the USA by Alto Products Corp, with Red Eagle® frictions, Kolene® steels, a top pressure plate and snap ring.
Specifications
| Fits | TH400, 4L80E |
|---|---|
| Manufacturer part number | Alto Products Corp 031756HP |
| Clutch | Direct |
| Piston travel | .121” to .236” (3.07 to 6.00mm) |
| Made in | USA |
Installation
The stack-up is the same method as OE. Start with the bottom cushion spring, install a steel plate, then alternate friction and steel plates, ending with a friction plate. Install the top pressure plate with the micro-finish toward the top friction plate, then the snap ring.
Place the direct clutch on the center support and apply it several times with air pressure to seat the friction and steel elements for an accurate piston travel measurement.
What's included
- (7) 031740A Red Eagle® friction plates, .061” / 1.54mm
- (7) 031701AK Kolene® steel plates, .060” / 1.52mm
- (1) 031761A939 top pressure plate, .370” / 9.39mm
- (1) 031250 snap ring
Instructions and resources
Product Videos
Custom Field
Transmission Model(s) TH400, 4L80E
