Product Description
Part number: SMTH350
Fits: TH350
Fits: TH350

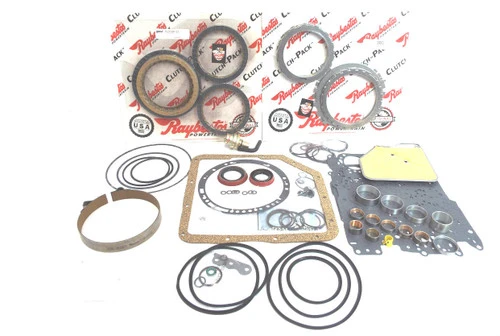

Build your own TH350 rebuild kit: choose the parts that match the transmission on your bench and leave out what you don't need. This builder has 21 choices: 1 required (Overhaul/Seal Kit) and 20 optional upgrades and add-ons.
Brands offered in this kit include Alto, Raybestos, BorgWarner, Sonnax, TransGo, Superior, Fitzall, Lubegard, Dr. Tranny, ATSG, Torrington and Fairbanks.
What you can choose
- Overhaul/Seal Kit (required): Overhaul/Seal Kit (1969-1986)
- Fiber/Farpak Pan Gasket: Oil Pan Gasket Farpak (1969-1986)
- Oil FIlter: Oil Filter (Felt) (All Years); Oil Filter (Nylon High Flow) (All Years) Alto
- Friction/Clutch Module: High Energy Friction Module Alto; OE Tan Friction Module (1969-1986) Raybestos; Red Eagle High Performance Friction Module Alto; Stage-1 High Performance Friction Module Raybestos; GEN2 Blue Plate Special Racing Clutch Module Raybestos
- Steel Module: OE Steel Module Raybestos; Kolene® Performance Steel Module Raybestos
- Intermediate Band: Intermediate Band
- Bushing Kit: Master Bushing Kit
- Torrington Bearing Kit: Torrington Bearing Kit KOYO
- Thrust Washer Kit: Thrust Washer Kit
- Pump Washer Shim Kit: Pump Washer Shim Kit Set of 6 Shims
- Modulator: Modulator Single Red Stripe (Adjustable 12-15 LBS) (1965-UP); Modulator Dual Black Stripe (Replaces Dual Red Stripe) (GM Universal 1969-UP)
- New Detent/Throttle Cable: Adjustable Detent/Throttle Cable (All Years) Fitzall; Detent/Throttle Cable (1979-1986) 40.5''- Long Fitzall; Detent/Throttle Cable (1968-1986) 43''- Long Fitzall
- HD Center Support Case Saver Assembly: Center Support Case Saver Assembly (1969-UP) (Requires Wide Sprag Listed Below) Adapt-A-Case (Requires Wide Low/Rev Sprag Below)
- Low/Reverse Sprag/ One Way Roller Clutch: Wide Low/Reverse Sprag (For Use with HD Center Support Above ONLY) BorgWarner; OE Style Low/Reverse Roller Clutch (1969-1986)
- Pump Gear Set: Pump Gear Set (1969-1979) 0.721''; Pump Gear Set (1969-1975) 0.723''; Pump Gear Set (1969-1979) 0.725''; Pump Gear Set (1965-1998) 0.727''
- Shift Kit: Shift Correction Kit Superior (K350); High Performance Shift Kit Superior (K350-HP); Shift Kit TransGo (SK350); HD Reprogramming Kit (1969-1981) TransGo (350-1&2); Stick Shift HD Reprogramming Kit (1969-1981) TransGo (350-3) (Manual Shift Control Fits 350 1969-81 Does not fit lockup transmissions); Posi Shift Kit (1969-1979) Heavy Duty & Street/Strip Fairbanks/Superior (STP-31001-2); TransAction Shift Kit (1969-1979) Heavy Duty, Street/Strip, Full Competition & Manual Control (1969-1979) Fairbanks/Superior (STP-31006)
- Vacuum Bypass Kit for use on supercharged and turbocharged vehicles that use a Modulator: Vacuum Bypass Kit TransGo #VBP-VAC
- Repair Manual on CD: TH350C ATSG Tech Service Rebuild Manual - CD (Not a Book)
- Tub of Assembly Lube: Dr. Tranny Transmission Assembly Lube - Green Firm; Dr. Tranny Transmission Assembly Lube - Blue Soft; Dr. Tranny Transmission Assembly Treatment by Lubegard; Sonnax Slippery Stick O-LUBE
- Intermediate Sprag/ One Way Roller Clutch: Intermediate Sprag
- HD Intermediate Sprag Race: Upgraded HD Intermediate Sprag Outer Race - Aftermarket; Upgraded HD Intermediate Sprag Outer Race - Sonnax (35723HD-01)
Not sure which option fits? Contact us with your vehicle's year and model and your transmission's identification and we'll help you choose.
