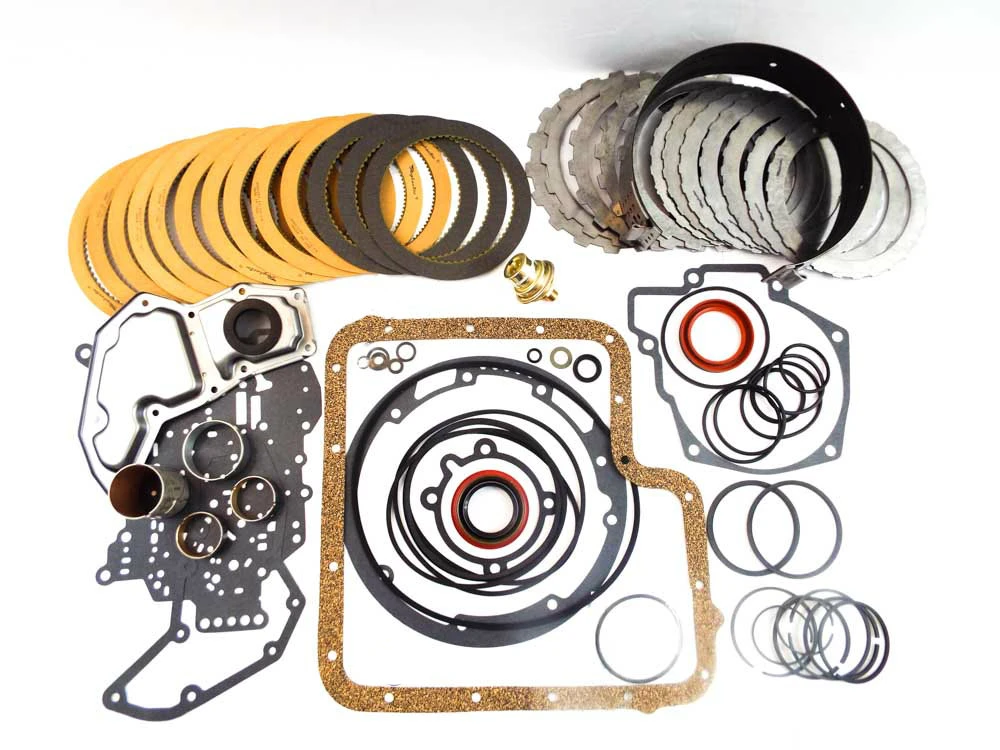

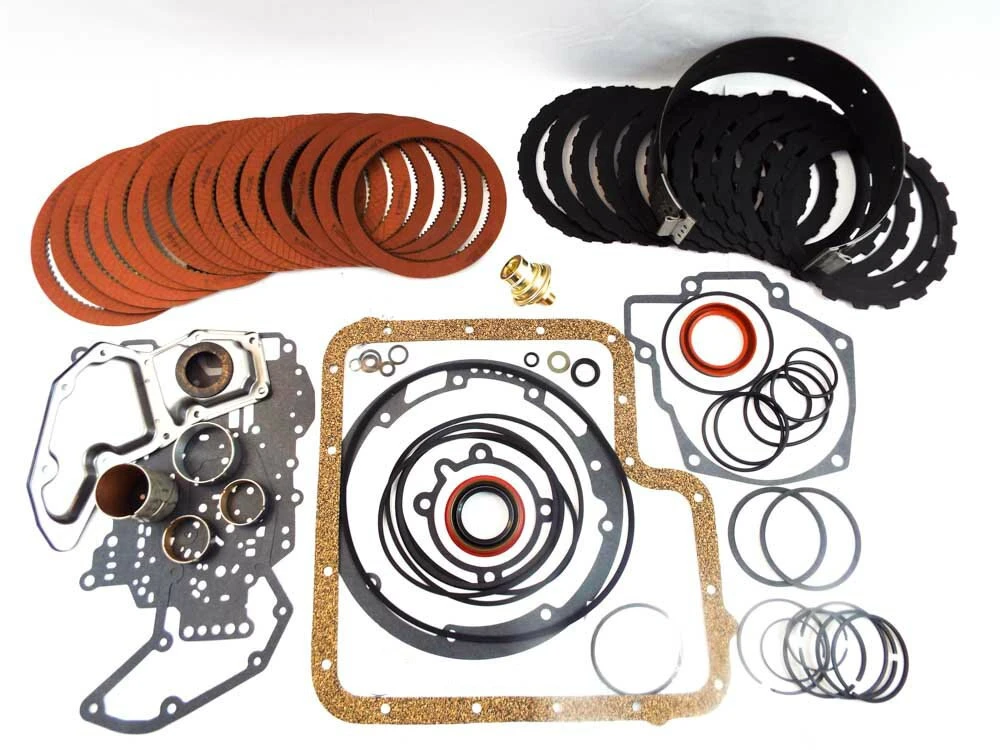

C6 Master Transmission Rebuild Kit - Make Your Custom Kit

Product Description

Build your own C6 rebuild kit: choose the parts that match the transmission on your bench and leave out what you don't need. This builder has 17 choices, all optional, so the kit holds only what you pick.

Brands offered in this kit include Alto, Raybestos, BorgWarner, Sonnax, TransGo, Superior, Lubegard, Dr. Tranny, ATSG, Torrington and Fairbanks.

What you can choose

• Gasket & Seal Kit: Overhaul Kit (Gaskets, Seals & O-Rings)
• Friction Plates: L1967-E1976 Standard OE Module by Alto; 1967-1976 High Energy OE Mixed Module by Raybestos; 1967-1976 Red Eagle HP Module by Alto; 1967-1975 GPZ & Stage-1 Friction Clutch Pack Module; 1976-1996 Stage-1 HP Module by Raybestos; 1976-1996 High Energy Module by Alto; 1977-1988 High Energy OE Mixed Module by Raybestos; 1976-1996 Red Eagle HP Module by Alto; plus 1 more
• Steel Plates: Standard OE Style Module; Kolene Coated Performance Module
• Modulator: 1964-1972 White Stripe; 1973-UP Black Stripe; 1973-UP Green Stripe; 1975-UP Push-In Style w/ Purple Stripe
• Bushing Kit: C6 Master Bushing Kit (1966-UP) 10-Piece Set
• Oil Filter: 2WD (1966-1974); 2WD (1975-UP); 4WD (1973-UP)
• Shift Kit Upgrade: Reprogramming Kit (1967-UP) TransGo; Shift Kit (1967-UP) TransGo; Shift Correction Pacakge by Superior; Shift Correction Pacakge w/ HD Boost Valve by Superior; TransAction Shift Package by Fairbanks (1967-UP) Heavy Duty, Street/Strip & Full Competition; 2-Stage Posi Kit by Fairbanks (1967-UP) Heavy Duty & Street Strip; Manual Conversion Kit by TransGo (1967-UP)
• Front Band: Red Eagle HP by Alto; Red Eagle HP Wide Style by Alto; ProSeries HP by Raybestos; Budget Aftermarket Style
• Fiber Pan Gasket: Oil Pan Gasket - Farpak/ Fiber (1966-1996)
• Torrington Bearing Kit: Torrington Bearing Kit (1976-UP)
• Thrust Washer Kit: Thrust Washer Kit (1969-UP) 12-Washer Set
• Intermediate Servo Piston: Intermediate Servo Piston 1.980'' BA Red Dot-N Cover; Intermediate Servo Piston 2.050'' AA Yellow Dot-S Cover; Intermediate Servo Piston 2.095'' CA Green Dot-L Cover; Intermediate Servo Piston 2.130'' DA Green Dot-P Cover; Billet Super Servo by Superior (R Code) (K016) (Check piston cover code and color dot on piston)
• Rear/ Overrun Sprag: Rear/ Overrun Sprag (1966-E1997) BorgWarner; Rear/ Overrun Sprag (L1997-UP) 17-Roller Style Aftermarket
• Forward Clutch Hub Snap Ring: Upgraded Forward Clutch Hub Snap Ring by Superior (K0111)
• Rebuild Manual: C6 ATSG Tech Service Rebuild Manual - CD (Not a Book)
• Tub of Assembly Lube: Dr. Tranny Transmission Assembly Lube - Green Firm; Dr. Tranny Transmission Assembly Lube - Blue Soft; Dr. Tranny Transmission Assembly Treatment by Lubegard; Sonnax Slippery Stick O-LUBE
• Band Adjustment Nut: Band Adjustment Nut (Recommended not to re-use)

Not sure which option fits? Contact us with your vehicle's year and model and your transmission's identification and we'll help you choose.

Applications

• 1967-1972 2WD
• 1967-1972 4WD
• 1973-1976 2WD
• 1973-1976 4WD
• 1976-UP 2WD
• 1976-UP 4WD

COMMON APPLICATIONS

• 1978-1991 Ford Bronco
• 1967-1996 Ford F-Series Trucks
• 1964-1970 Ford Fairlane
• 1966-1974 Ford Galaxie
• 1966-1980 Ford LTD
• 1966-1979 Ford Ranchero
• 1966-1979 Ford Thunderbird
• 1968-1976 Ford Torino
• 1966-1979 Lincolns
• 1967-1973 Ford Mustangs
• 1967-1978 Mercury Cougars
• 1968-1976 Mercury Montego
• 1967-1974 Mercury Monterey
