Product Description
Fits: E4OD / 4R100
Sonnax Zip Kit E4OD-4R100-ZIP for Ford E4OD and 4R100 transmissions. Formerly a Sure Cure® option, it now includes added parts that extend coverage to later applications. No reaming or separate special tools are needed to install these parts.
Specifications
| Fits | E4OD, 4R100 |
|---|---|
| Tooling | 36948-12 (Recommended) |
| Reaming required | No |
What it fixes
The kit seals critical pressure losses in the valve body and pump. Its parts stop pressure loss in the main line, accumulator control, line pressure modulator and lockup control circuits.
It also addresses overdrive planetary and piston failure, forward clutch failure, soft shifts, low clutch apply pressure, unit end play, and lube and bushing failure.
A one-sheet Zip Kit quick guide covers installation. The included technical booklet adds general rebuilding tips, technical information, and vacuum testing information and locations for other key areas of the valve body and pump. Bore sizing tool 36948-12 is recommended.

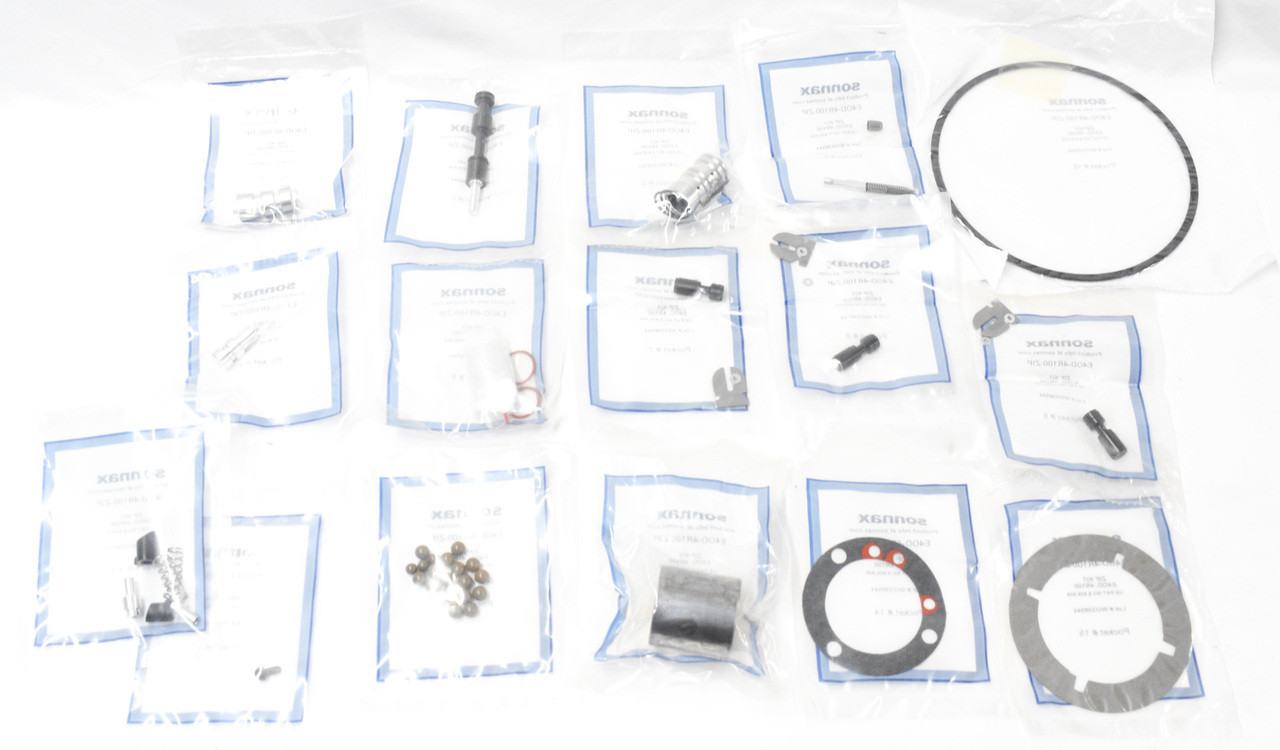

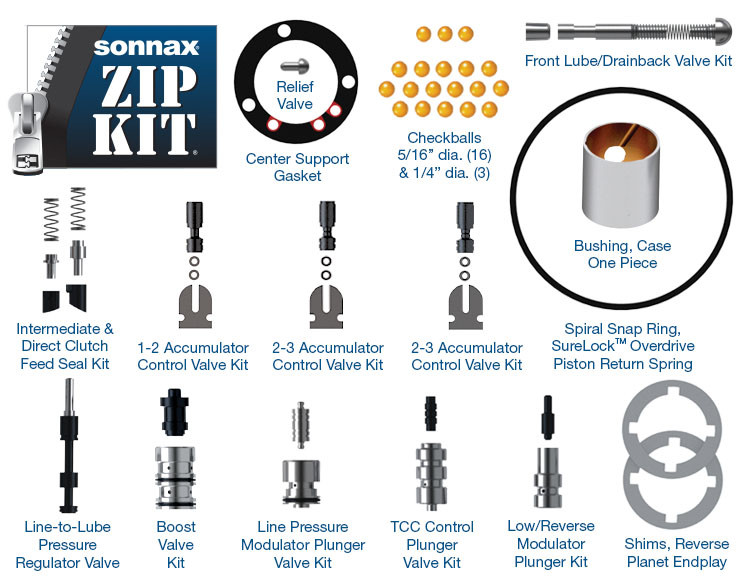

What's included
- 1-2 Accumulator Control Valve Kit
- 2-3 Accumulator Control Valve Kit
- 3-4 Accumulator Control Valve Kit
- Boost Valve Kit
- Line Pressure Modulator Plunger Valve Kit
- TCC Control Plunger Valve Kit
- Low/Reverse Modulator Plunger Kit
- Front Lube/Drainback Valve Kit
- Relief Valve
- Center Support Gasket
- Shims (2)
- Reverse Planet Endplay Bushing
- Case, One Piece Line-to-Lube Pressure Regulator Valve Kit
- Checkballs (3), 1/4" dia.
- Checkballs (16), 5/16" dia.
- Spiral Snap Ring
- Sure Lock™ Overdrive Piston Return Spring
- Intermediate & Direct Clutch Feed Seal Kit
- Zip Kit quick guide and technical booklet
Notes
And, like all Zip Kits, no reaming or special tools are required.
No separate special tools are required for installing these parts.
No reaming required
Installs quickly with no separate special tools required
