Product Description
Fits: 4R100, E4OD
Tooling: 36948-12 (Recommended)
Ford E4OD and 4R100 units often display shifting irregularities which can be traced to problems with accumulator control valves. Wear ridges form as the valve moves in and out of the bore. Under high-pressure shifts, the valve is allowed to stroke too far, causing it to hang up on these ridges and block oil flow to the associated clutch. This results in soft shifts, loss of gear and burnt clutches. Sonnax 3-4 accumulator control valve kit 36948-09K resolves these issues and provides a firmer-than-OE shift quality.
- Step machined into valve spool acts as an orifice to allow full oil flow to clutches when appropriate, preventing premature clutch failure
- Reinforcement retaining clip attaches to OE clip to prevent over-stroking
- Spring shims allow for selective increase of apply pressure to manipulate shift quality
- Annular groove helps center valve in bore to prevent future side-load wear

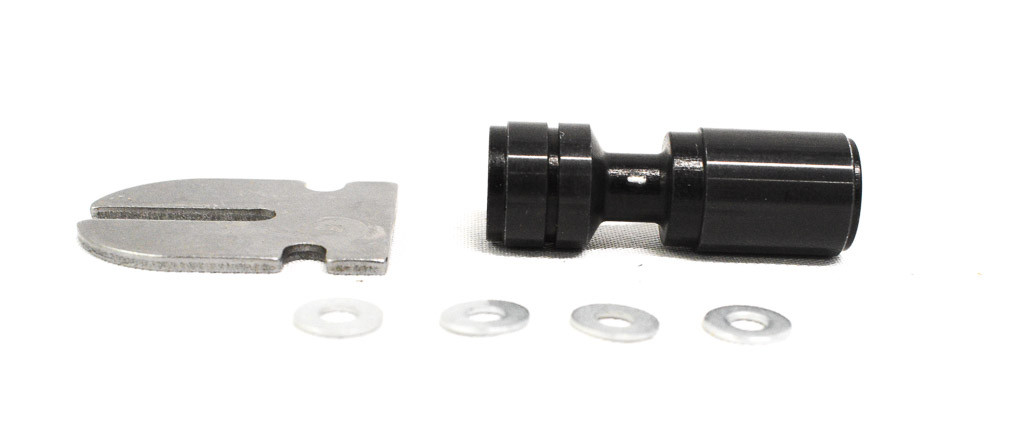

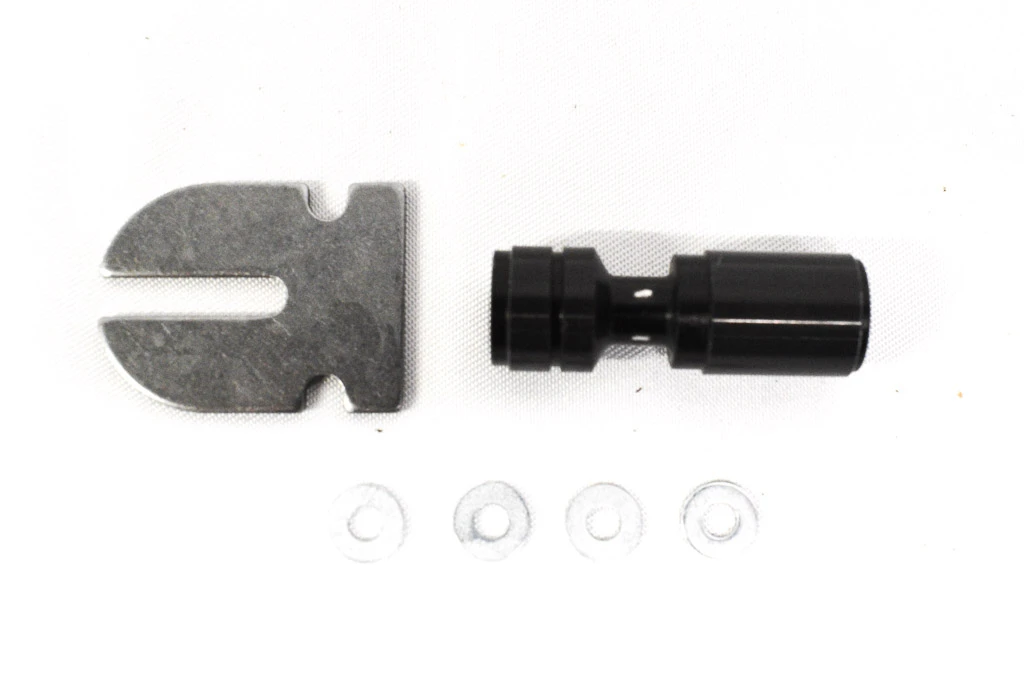

- Valve
- Retaining Clip
- Spring Shims (4)
Notes
Sonnax bore sizing tool 36948-12 (available separately) properly resizes the bore to prevent hang-up or sticking of the new valve. See instructions for details. Tool is recommended but not required.
Content:
Symptoms
- No 4th
- Soft shifts
- Premature clutch failure
Cause
OE accumulator control valves restrict oil flow to clutches.
Correction
Overcome the flaw of the OE design and avoid oil cut-off by installing the improved, redesigned Sonnax accumulator control valve kit.
