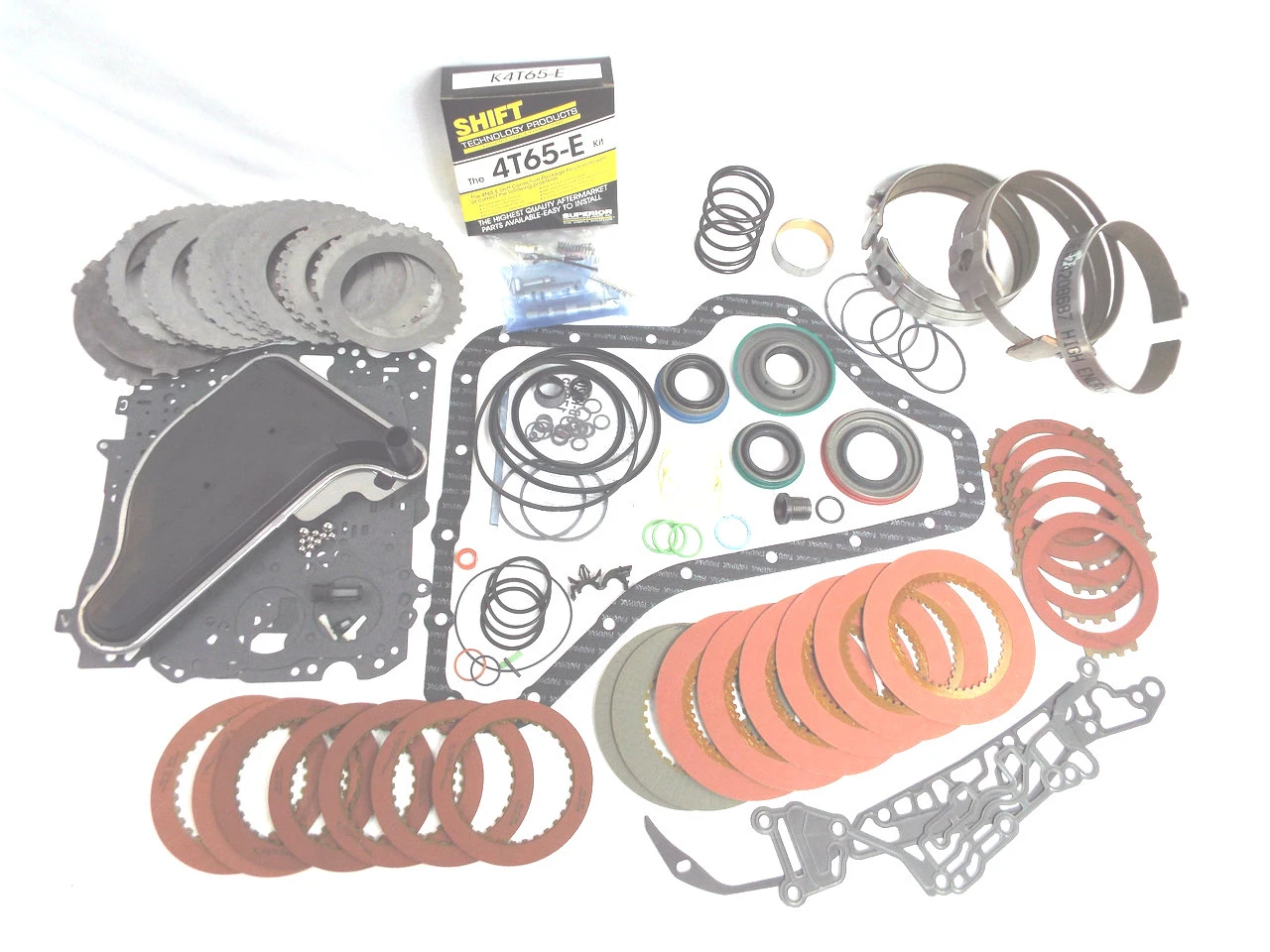

Build Your Own Custom Performance 4T65E Transmission Rebuild Kit (1997-2013)

Product Description

Build your own 4T65E rebuild kit: choose the parts that match the transmission on your bench and leave out what you don't need. This builder has 41 choices: 1 required (Overhaul/Seal Kit) and 40 optional upgrades and add-ons.

Brands offered in this kit include Raybestos, Exedy, BorgWarner, Sonnax, TransGo, Superior, Fitzall, Dr. Tranny, ATSG, Torrington, ACDelco and Rostra.

What you can choose

• Overhaul/Seal Kit (required): Gasket & Seal Overhaul Rebuild Kit w/ Cork Pan Gasket (No Side Cover Gasket) (1997-2013)
• Molded Rubber Side Cover Gasket: 4T65E Molded Rubber Side Cover Gasket
• Upgrade pan gasket: Farpak Pan Gasket (1997-2013); Molded Rubber Pan Gasket (w/ 8mm Bolt Holes) (1991-2004); Molded Rubber Pan Gasket (w/ 6mm Bolt Holes) (1997-2013) (replaces the cork gasket in the overhaul kit)
• Filter: Oil Filter (1997-2013)
• Molded Rubber Clutch Piston Kit: Molded Rubber Piston Pack (1997-2006) (2nd and 3rd Pistons)
• Friction/Clutch Kit: High Energy Friction Module (1997-2002) Raybestos; High Energy Friction Module (2003-2013) Raybestos; Friction Clutch Plate Module (1997-2002) Exedy (EFK172); Friction Clutch Plate Module (2003-UP) Exedy (EFK237)
• Steel Plate Kit: Steel Module
• Forward/Rear Band: 1997-2013 Forward/Rear Band (Aftermarket)
• Front/Reverse Band: 1997-2013 Front/Reverse Band Relined
• 2-1 Coast Band: 2-1 Coast Center Band High-Energy (1997-2013)
• Drive Chain: Chain Set w/ Mouse Ear Link & D-Pins (1997-UP) BorgWarner HV093 (A84700G)
• Bushing Kit: Bushing Kit (1997-UP)
• Channel Plate Sleeve Bushing: Channel Plate Sleeve (1997-2013); Channel Plate Sleeve Sonnax (84596-01K) (Not in Bushing Kit)
• Torrington Bearing Kit: Torrington Bearing Kit (1997-2013)
• Axel Channel Plate Bearing: Axle Channel Plate Bearing (1997-2013) (Not in Bearing Kit)
• Thrust Washer Kit: Thrust Washer Kit (1997-2013)
• Planetary Thrust Bearing: Planetary Thrust Bearing Sonnax (34821-01)
• 1-2 Roller Clutch: 1-2 Roller Clutch, 14 Element Plastic Cage (1995-2011) (A84652A)
• 3rd / Input Sprag: 3rd & Input Double Sprag Kit (1996-2002) (A84658CK); 3rd Sprag Assembly, Mechanical Diode Style (2003-2011) BorgWarner (A84646D)
• 1-2 Accumulator Piston: 1-2 Accumulator Piston (1997-2013) TransGo (4T65-ACM)
• 2-3 Accumulator Piston: 2-3 Accumulator Piston (1997-2013) TransGo (4T65-ACM)
• 1-2/2-3 Accumulator Assembly: 1-2/2-3 Accumulator Assembly, Remanufactured OEM (1376B)
• Oversized Accumulator Pin Kit: Oversized Accumulator Pin & Reamer Kit Sonnax (84754-52K); Oversized Accumulator Pins Only, Pack of 4 - refill, no reamer Sonnax (84754-51K)
• Extended Forward Band Servo Pin Kit: Extended Length Forward Band Servo Pin Kit Sonnax (84571-01K)
• 4th Accumulator Piston: 4th Accumulator Piston (1997-2008) TransGo (4T65-4ACM); 3-4 (4th) Accumulator Piston Sonnax (84880M-01)
• HP 3rd Clutch / Input Piston Kit: 3rd Clutch Billet Piston Kit (1997-2013) Sonnax (84965-01K) - replaces 3rd piston in molded pack
• 2nd Clutch Piston: 2nd Clutch Piston (1401) (use with the Sonnax 3rd piston instead of the pack)
• 4th Clutch Piston Kit: 4th Clutch Piston Kit (1997-UP) (1269C-Kit)
• HD 4th Clutch Hub & Shaft: 4th Clutch Hub & Shaft - HD Hardened (1287B)
• Actuator Feed Limit Valve Repair Kit: Actuator Feed Limit Valve Repair (1997-2013) TransGo (4T65-AFL); AFL Valve Repair Kit (1997-2013) Superior (K098); AFL Valve Kit Sonnax (84596-02K)
• Shift Kit: Shift Kit w/ Boost Valve TransGo (SK4T65E); Shift Correction Package w/ Boost Valve (1997-2011) Superior (K4T65-E)
• Valve Body Spacer Plate (2004-UP): Bonded Valve Body Spacer Plate 24244403 (2004-UP) AC Delco (1411A)
• Boost Valve: Line Pressure Booster Kit (1997-2013) Sonnax (4T65E-LB1); Boost Valve Kit (1997-2013) Sonnax (84754-30K) (skip if you chose a shift kit - SK4T65E / K4T65-E include one)
• Wire Harness: Internal Wire Harness - Universal (1997-UP) Rostra; Internal Wiring Harness, replaces OEM 24221901 Fitzall (T84446G)
• Shift Solenoid Set: 1-2 & 3-4 A/B Shift Solenoid Set (1997-UP)
• Electronic Pressure Control Solenoid (EPC): 1997-2002 EPC Electronic Pressure Control Solenoid; 2003-2013 Electronic Pressure Control EPC Solenoid
• TCC PWM Solenoid: TCC PWM (1997-2013)
• Manifold Pressure Switch: 1997-2002 Manifold Pressure Switch; 2003-2013 Manifold Pressure Switch
• Internal Neutral Safety Switch MLPS: 1999-2013 Internal Neutral Safety Switch MLPS
• Rebuild Manual: ATSG Tech Service Handbook - Book
• Tub of Assembly Lube: Dr. Tranny Transmission Assembly Lube - Green Firm; Dr. Tranny Transmission Assembly Lube - Blue Soft

Not sure which option fits? Contact us with your vehicle's year and model and your transmission's identification and we'll help you choose.

Build Your Own 4T65E Loaded HP Rebuild Kit

This kit will not work in Volvo model vehicles with a 4T65E transmission installed.

IF YOU'RE LOOKING FOR THE 4T65E KIT WITH THE HIGHEST QUALITY PARTS AND THE MOST UPGRADES THEN THIS IS THE KIT FOR YOU!

PLEASE CONTACT US WITH ANY QUESTIONS!
