Product Description
Fits: 6L80 / 6L90

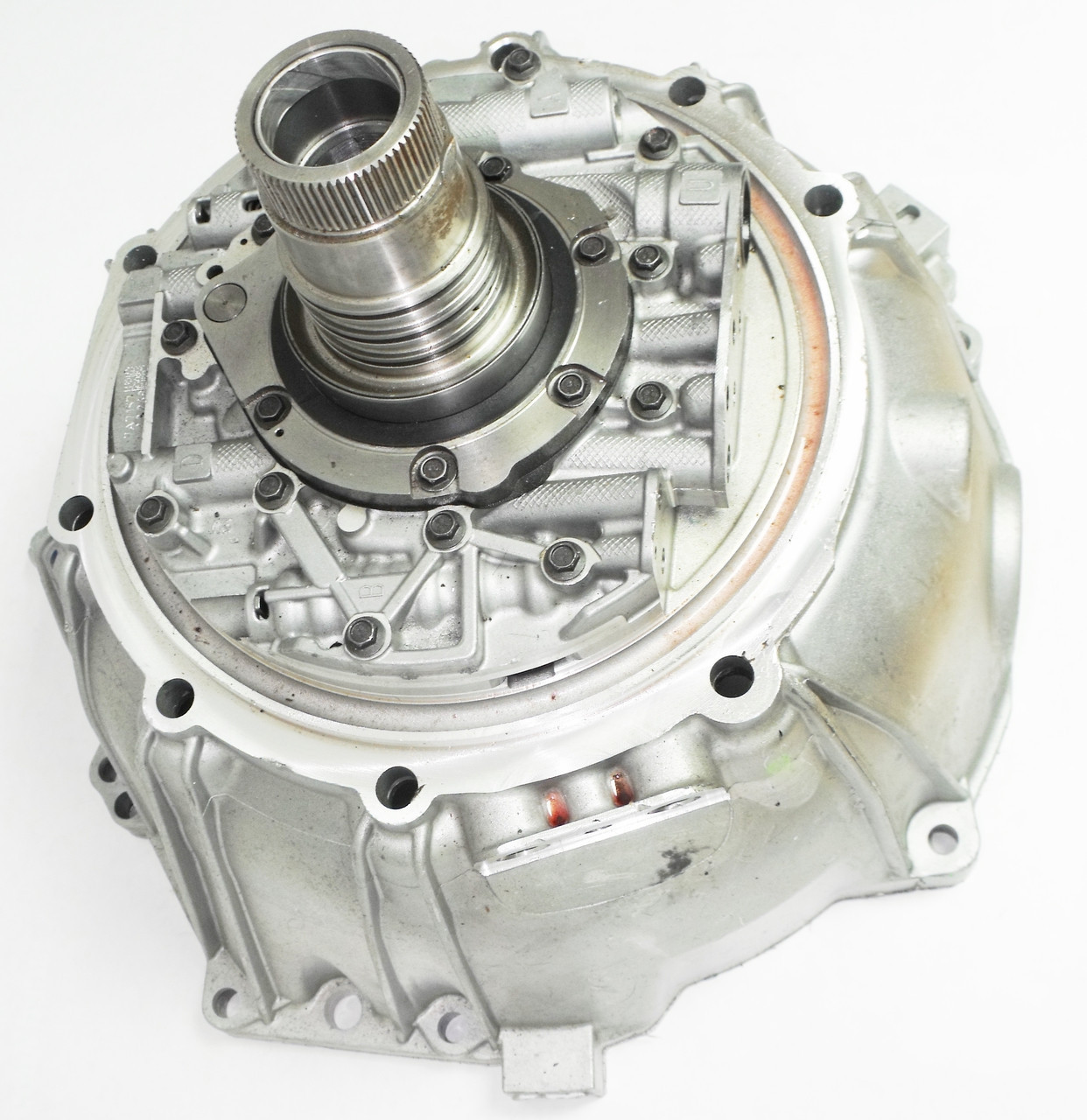

Custom-built 6L80 or 6L90 pump, fully assembled and tested, with the upgrades you choose. Options come from the Sonnax, TransGo, Superior Transmission Parts and Central Valve Bodies catalogs of OE style and HD oversized parts, so you do not need to buy reamers and fixtures to oversize the valve line yourself.
Each pump arrives ready to take out of the box and install, with a return label for sending your old pump back as the core.
How it is built
Every pump is built on the same base parts: machined bell housing and pump cover/stator, rotor and internal kit, seal kit, bushings, bolts and thrust washer (full list below). You then choose the upgradeable parts in each category, including the boost valve and pressure regulator valve; other categories can be left OE.
You can have a new test port plug and vent tube installed, or move yours to the new pump.
All components are installed, bolts are torqued to factory specs, and the pump halves are aligned with the Adapt-A-Case alignment tool. Each pump is tested and ships with a certified test results certificate.
Core return: pack your old pump in the bag and packaging from the new pump, seal the box, apply the included label and hand it to UPS.
What's included
- 104500 machined bell housing and pump cover/stator support
- PK408288 pump rotor, slide, vane, ring, washer and seal kit
- 104535 pump slide pin

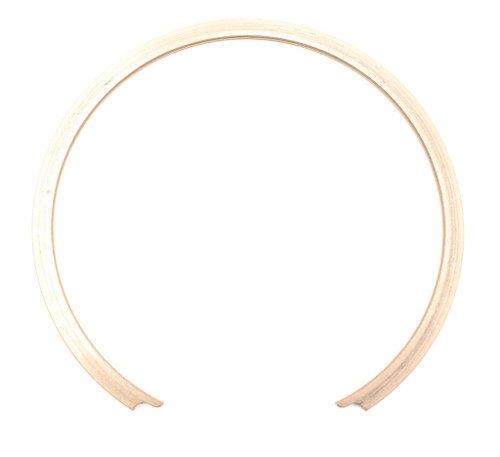

- 24218963 torque converter seal snap ring
- BOLT-6L80-Pump pump bolts (13)
- 33133 filter grommet seal
- 33488 cooler seal
- 33651 metal clad cooler seals (2)
- 104037A rear stator bushing
- 104036A front stator bushing
- 104034 pump body bushing
- 33996 converter housing O-ring
- 33559 stator PEEK rings (3)
- 33953 expander O-rings (3)
- 33531 metal clad torque converter seal
- 33452 pump thrust washer
- 1565 stator gasket
- 33450 stator to pump cover O-ring
Notes
Each pump comes with a return shipping label for you to send your pump core back with and get the $225 core refund.
If you choose an oversized valve option there is a $50 ream fee, but these are the best valves for various reasons.
We guarantee this pump will work flawlessly.
Core Charge
Core charge: $225, already included in the price. The price of this pump includes a $225 refundable core charge. When your new pump arrives, send your old one back with the prepaid return label we provide (for returns from within the USA), and we will refund the $225 once the core is received and checked.
- Ship the core back within 30 days of delivery for the full refund. Cores shipped 31 to 90 days after delivery get 70% of the core charge back. After 90 days, the core charge is not refunded.
- Outside the USA? The prepaid label only works for returns from within the USA. You can still ship the core back at your own cost to receive the refund.
- The core must be the same type as the pump you bought, complete, and not cracked or taken apart.
- Drain the fluid, pack it securely, and put your order number in the box.
- We refund the core charge to your original payment method within 5 business days of receiving it.
Contact us before shipping if your core is damaged or you need a new label.
