Raybestos Powertrain

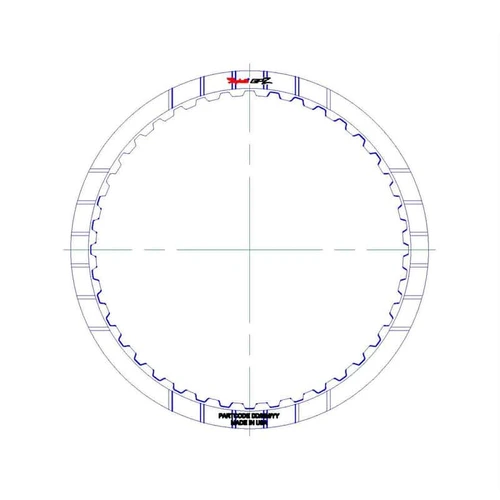

AB60 B1 Clutch GPZ Friction Plate | Raybestos | .072'' / 1.83mm

Part number: GPZ500 Raybestos Powertrain GPZ friction plate for the B1 clutch of the AB60 transmission, the reverse (5-6) #1 brake. It has a 2-way multi-parallel groove, a thickness of .072" / 1...

AB60 B1 Clutch HE Friction Plate | Raybestos | .070'' / 1.78mm

Part number: R560491 Segmented high-energy friction plate from Raybestos Powertrain for the AB60 B1 clutch, the reverse (5-6) #1 brake, for 2007-ON applications. It is .070" / 1.78mm thick with a 7...

AB60 B1 Clutch HE Friction Plate | Raybestos | .072'' / 1.83mm

Part number: R560490 High-energy friction plate for the AB60 B1 clutch, the reverse (5-6) #1 brake, made by Raybestos Powertrain. It has a radial groove, is .072" / 1.83mm thick, and has a 7.332"...

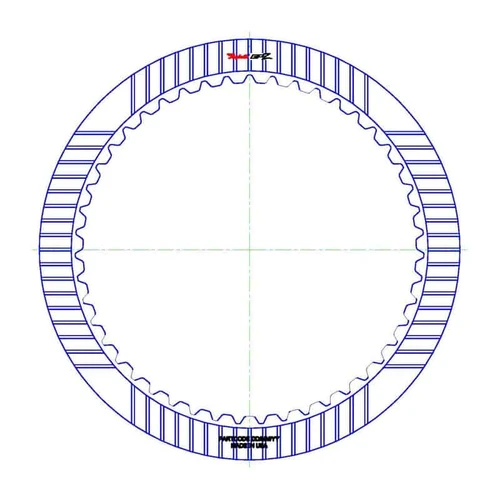

AB60 B2 Clutch GPZ Friction Plate | Raybestos | .061'' / 1.55mm

Part number: GPZ530 Raybestos Powertrain GPZ friction plate for the AB60 B2 clutch, the 6th (#2 brake). It has a 2-way multi-parallel groove, a .061" / 1.55mm thickness, a 6.464" outside diameter and...

AB60 B2 Clutch HE Friction Plate | Raybestos | .061'' / 1.55mm

Part number: R560495 High-energy friction plate for the AB60 B2 clutch, the 6th (#2 brake), made by Raybestos Powertrain. It has a radial groove, is .061" / 1.55mm thick, and has a 6.464" outside...

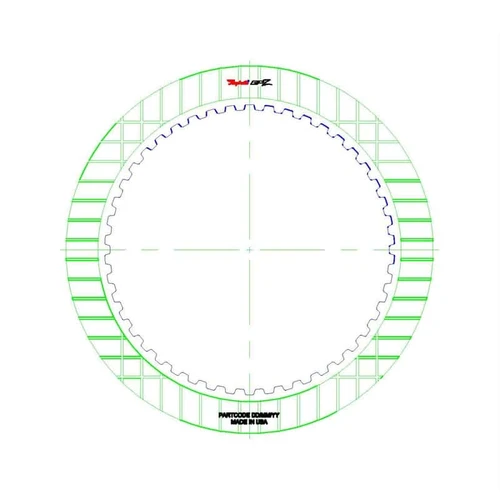

AB60 B3 Clutch GPZ Friction Plate | Raybestos | .072'' / 1.83mm

Part number: GPZ520 GPZ friction plate for the AB60 B3 clutch, the 2nd (#3 brake), from Raybestos Powertrain. It has a 2-way multi-parallel groove, is .072" / 1.83mm thick, and has a 7.533" outside...

AB60 B3 Clutch HE Friction Plate | Raybestos | .072'' / 1.83mm

Part number: R560485 AB60 B3 clutch friction plate, the 2nd (#3 brake), in Raybestos Powertrain high-energy material. The plate has a 2-way multi-parallel groove, is .072" / 1.83mm thick, and has a 7...

AB60 B4 Clutch GPZ Friction Plate | Raybestos | .062'' / 1.57mm

Raybestos Powertrain part number: GPZ535 Part No. GPZ535 Clutch Position B4 Reverse (#4 Brake) (Waved) GPZ OE No. 35681-34020 Friction Material

AB60 B4 Clutch HE Friction Plate | Raybestos | .059'' / 1.50mm

Part number: R560501 Waved high-energy friction plate from Raybestos Powertrain for the AB60 B4 clutch, the reverse (#4 brake). The plate has a radial groove, measures .059" / 1.50mm thick, and has a...

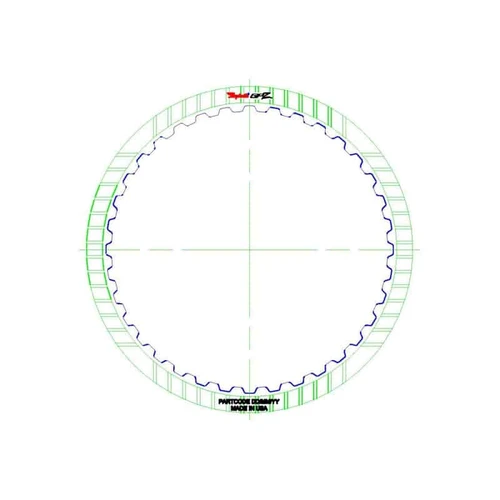

AB60 C1 Clutch GPZ Friction Plate | Raybestos | 0.059'' / 1.50mm

Part number: GPZ505 GPZ friction plate from Raybestos Powertrain for the AB60 C1 (1-2-3-4) forward clutch. The plate uses GPZ friction material with a 2-way multi-parallel groove, is 0.059" / 1.50mm...

AB60 C1 Clutch HE Friction Plate | Raybestos | 0.059'' / 1.50mm

Part number: R560475 Raybestos Powertrain high-energy friction plate for the AB60 C1 (1-2-3-4) forward clutch. The plate has a radial groove, measures 0.059" / 1.50mm thick, and has a 5.019" outside...

AB60 C2 Clutch GPZ Friction Plate | Raybestos | 0.59'' / 1.50mm

Part number: GPZ515 Raybestos Powertrain GPZ friction plate for the AB60 C2 (4-5-6) direct clutch, waved style. It measures .059" / 1.50mm thick with a 7.071" outside diameter and 36 teeth, and has a...

AB60 C2 Clutch HE Friction Plate | Raybestos | 0.059'' / 1.50mm

Part number: R560465 High-energy friction plate from Raybestos Powertrain for the AB60 C2 (4-5-6) direct clutch, waved style. It has a radial groove, a 0.059" / 1.50mm thickness, a 7.071" outside...

AB60 C3 Clutch GPZ Friction Plate | Raybestos | .058'' / 1.47mm

Part number: GPZ510 AB60 C3 (3-5) reverse (rear) clutch friction plate in Raybestos GPZ material; the plate is waved. It is .058" / 1.47mm thick with a 7.073" outside diameter, 40 teeth and a 2-way...

AB60 Coast Clutch GPZ Friction Plate | Raybstos | 0.059'' / 1.5mm

Part number: GPZ525 Coast clutch friction plate for the AB60 transmission (C4 coast position) in Raybestos GPZ material. It is .059" / 1.50 mm thick with a 4.81" outside diameter, 36 teeth and a...

AB60 Coast Clutch HE Friction Plate | Raybestos | 0.059'' / 1.5mm

Part number: R560470 Raybestos Powertrain high-energy friction plate for the AB60 C4 coast clutch, waved style. It is .059" / 1.50 mm thick with a 4.81" outside diameter, 36 teeth and a 2-way...

AB60E AB60F GPZ Friction Clutch Plate Module | Raybestos

Raybestos Powertrain part number: RGPZ-023 2007-ON Part No. RGPZ-023 Raybestos® Powertrain Toyota/Lexus AB60E, AB60F With GPZ Clutch Pack® Module contains upgraded friction components as well as

AB60E AB60F High-Energy Friction Clutch Plate Module | Raybestos

Raybestos Powertrain part number: RCP96-261 High Energy Friction Clutch Plate Module for Toyota / Lexus AB60E and AB60F automatic transmissions., made in the USA by Raybestos Powertrain,

Allison 1000 2000 2400 Superpak Clutch Module by Raybestos 1999-2010

Raybestos Powertrain part number: RCPS-142 ALLISON LT1000 STAGE-1 FRICTION CLUTCH PACK Superpak Friction Module 1999- 2010 Part No. RCPS-142 Raybe

AOD AODE 4R70 4R75 Direct Clutch GEN2 Blue Friction Plate

Part number: R577780 Direct clutch friction plate, GEN2 Blue material, for AOD, AODE, 4R70E, 4R70W and 4R75W transmissions, 1994-ON. Thickness 0.067 inch (1.70mm), outside diameter 4.685 inch, 2-Way...
