Product Description
Fits: 55-51SN, 55-50SN
Also fits AF23/33 and RE5F22A.
- Tooling:
- F-59947-TL34
- VB-FIX
Aisin AW 55-50SN and 55-51SN transmissions may exhibit multiple shift problems due to excessive wear in the solenoid modulator circuit. Loss of 3rd, 4th or 5th Gear and no TCC apply are common along with low line pressure and flare shifts. Bore wear at the inboard end results in high solenoid pressure, improper gear or harsh shifts. Sonnax oversized solenoid modulator valve kit 59947-34K allows the bore to be refurbished, and the hydraulic integrity restored for proper modulated solenoid pressure.
- Hard-coat anodized to increase wear resistance
- Added length at the outboard spool for additional valve support
- Salvages severely worn valve castings
- F-59947-TL34 tool kit can be used for both 59947-34K and 59947-35K oversized valve kits
Symptoms
- Low line pressure
- 2-3 Flare
- No 3rd
- No 4th
- No 5th
- Delayed Forward
- 5th Gear only
- No lockup
Cause
The OE steel valve results in excessive clearance during hot operation and frequently sticks when cold. Bore wear can reduce available solenoid modulator pressure, resulting in delayed forward, flare on 2-3, TCC slippage or soft shifts overall. Bore wear at the inboard end results in excess solenoid pressure, improper gear or harsh shifts.
Correction
The Sonnax oversized solenoid modulator valve made of wear resistant hardcoat anodized aluminum re-establishes proper pressures. Additional support is given to the valve by adding length to the outboard spool.

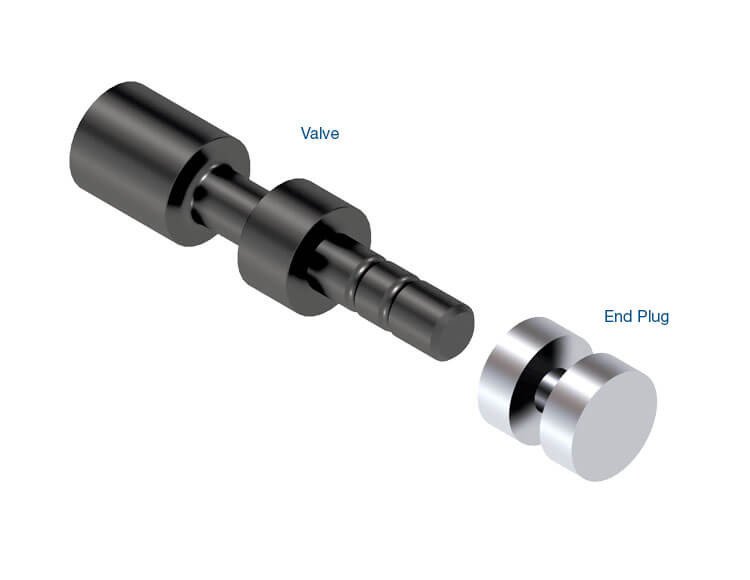

Contents
- Valve
- End Plug
Valve Body Layout
Sonnax valve body layouts provide a detailed overview of individual units making it quick and easy to determine what’s available for the specific valve body you’re working on. See all Sonnax valve body layouts.

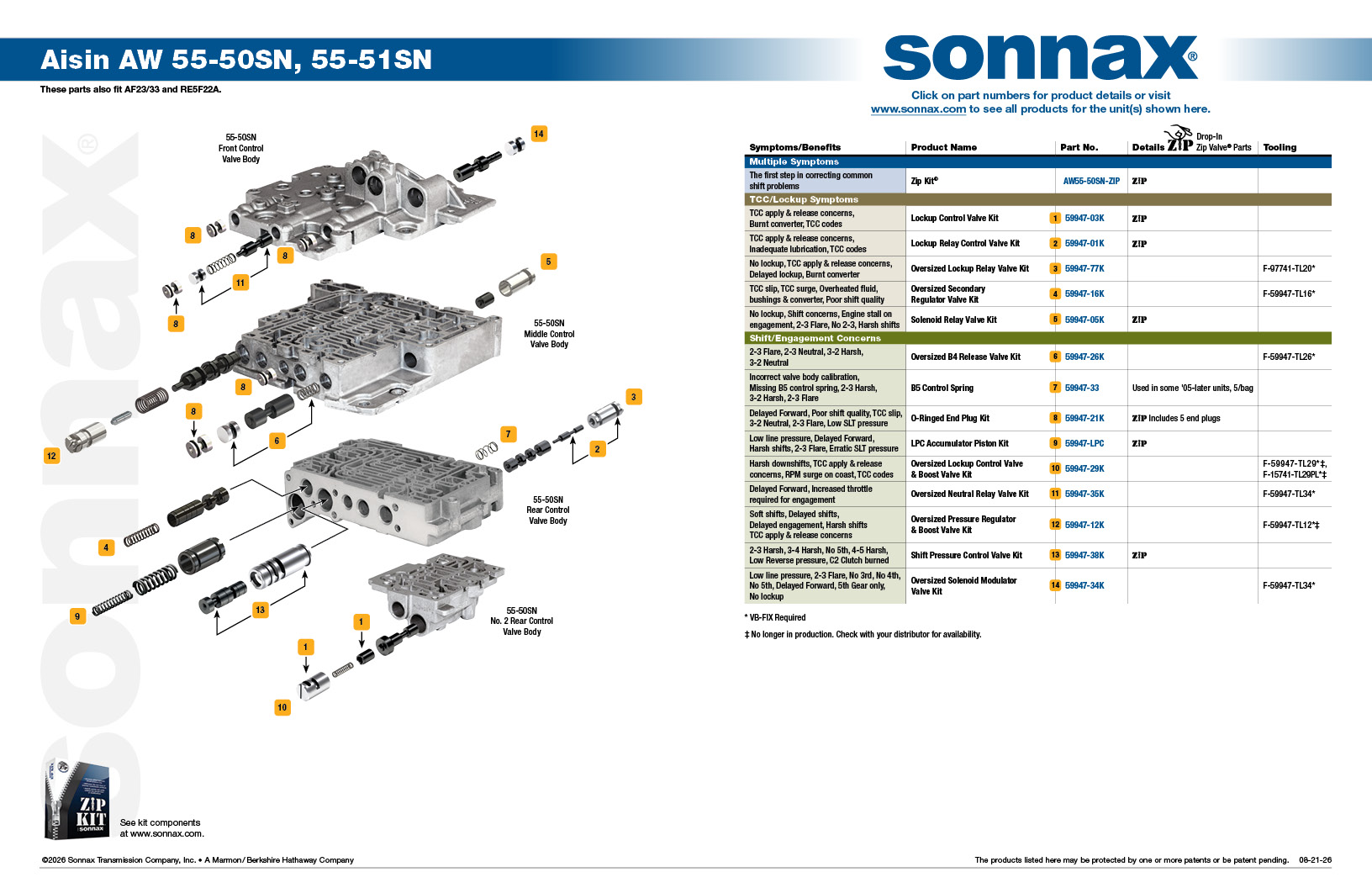

Aisin AW 55-50SN, 55-51SN Valve Body Layout
