Product Description
Fits: Allison 1000 / 2000 / 2400 · C4 clutch
Allison C4 clutch PowerPack® made with G4 friction material. It fits the 5-speed Allison 1999-2005 and the 5-speed Allison 2001 to 2004 1/2 with the small Torrington bearing shaft, and it includes a new C3/C4 apply piston and return spring assembly.
Specifications
| Clutch | C4 |
|---|---|
| Clutch pack clearance | .060” to .080” |
| Friction material | G4 |
| Alto part number | 152758BG4 |
Installation
Install the 152303A apply piston and the 152309X return spring.
Install the 152705D218PS grooved apply plate with the grooves toward the apply piston. Alternate the 152704A216 friction plates and the 152705AK218 Kolene steel plates, ending with a friction plate (6 frictions and 5 steel plates). The extra 152705AK250 plate is for adjusting clutch pack clearance. Finish with the OEM backing plate and OEM snap ring.

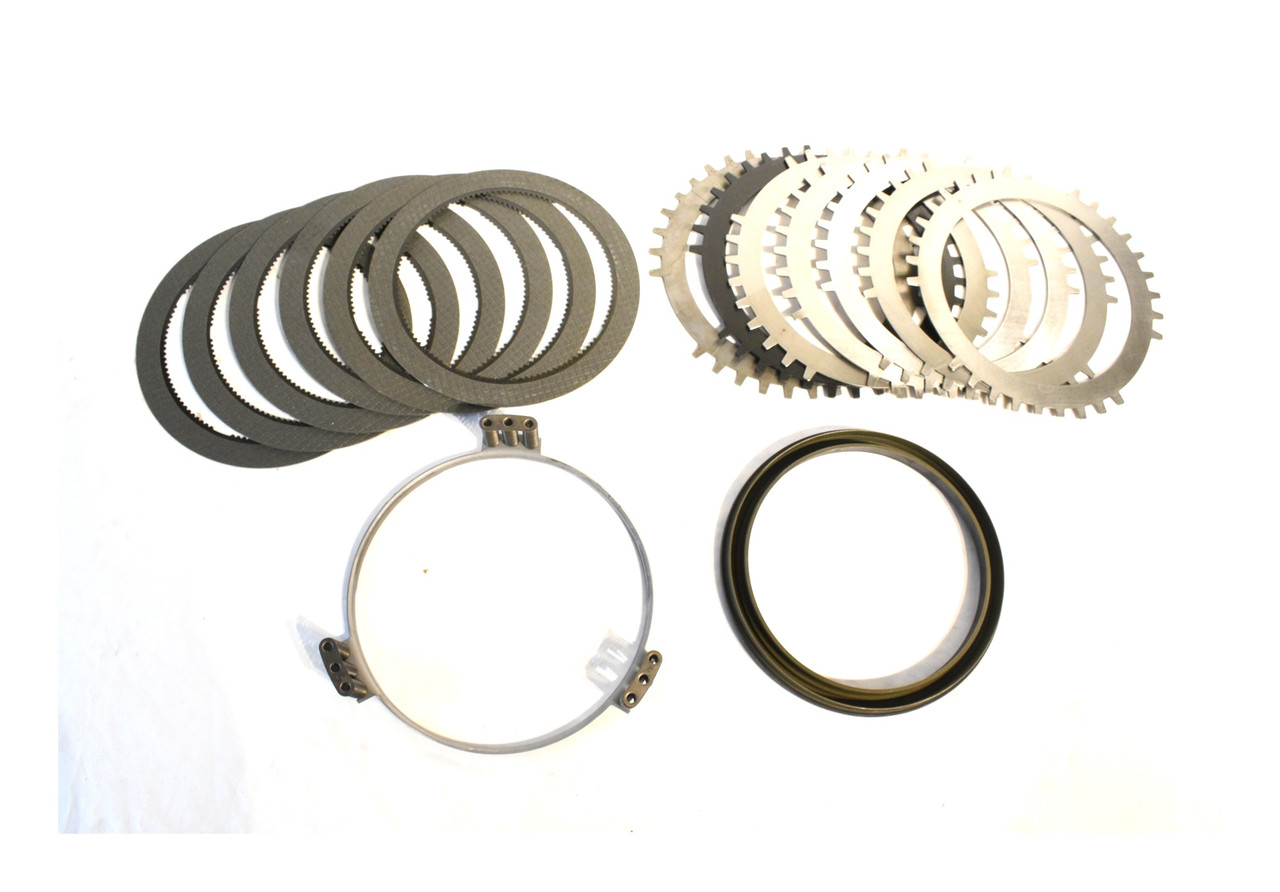

What's included
- (6) 152704B216G4 G4 friction plates, .085”
- (5) 152705AK218 performance steel separator plates, .086”
- (1) 152705D218PS performance grooved apply plate, .086”
- (1) 152705AK250 performance steel separator plate, .097”
- (1) 152303A C3/C4 apply piston
- (1) 152309X C3/C4 piston return spring assembly
Notes
Install 152303A apply piston and 152309X return spring, make sure vent hole is located at 12 o’clock.
