8HP70 8HP55 HT Friction Clutch Plate Module | Raybestos

Product Description

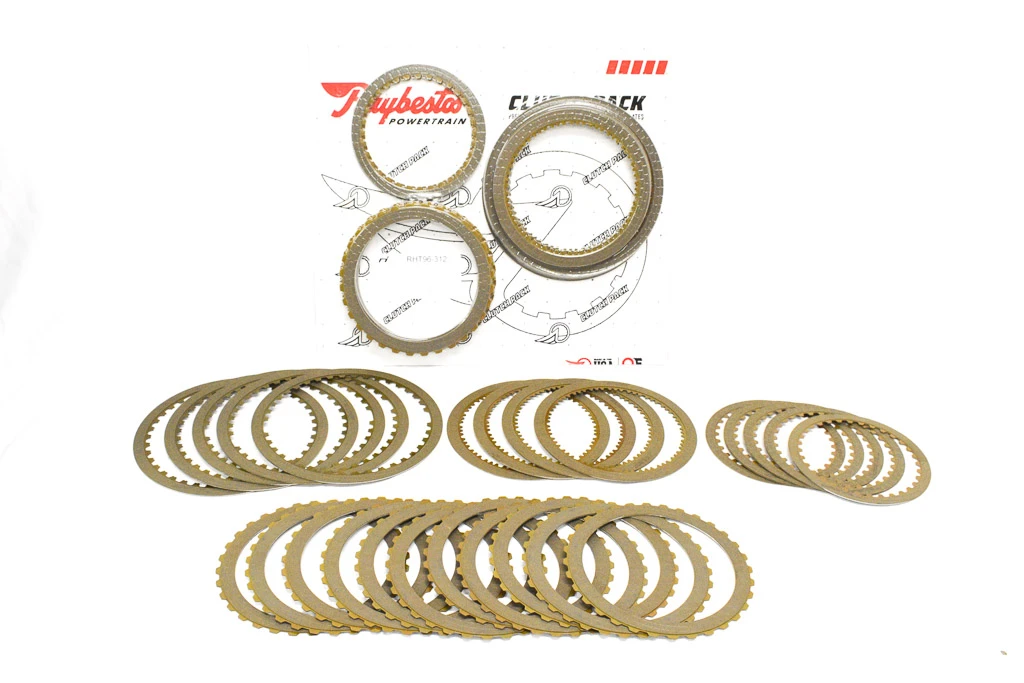

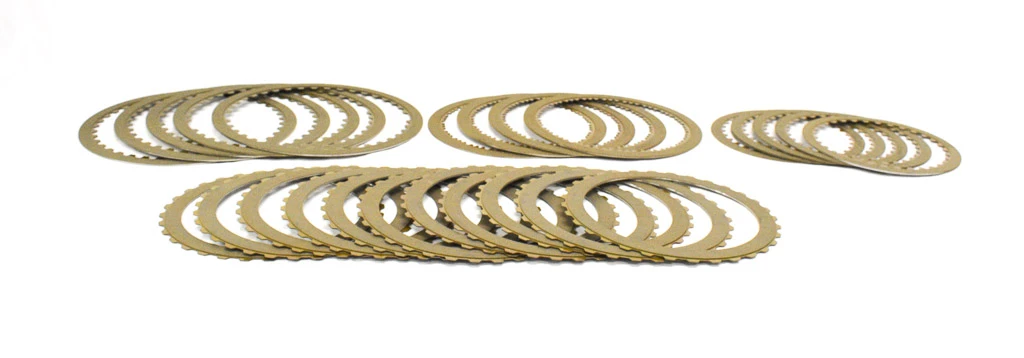

Complete HT friction clutch pack module for the ZF 8HP70 and 8HP55 (2009-ON, Chrysler applications included), in one box. Made in USA.

For heavy-duty and high-stress use, see RGPZ-018.

Specifications

About HT frictions

HT (Hybrid Technology) frictions use Raybestos Powertrain's proprietary OE friction material with a groove pattern that keeps the clutches cooler during shifts, for smooth, stable shifts and longer clutch life.

What's included

• 5 x A Brake, ID spline (flat), HT: .061" thick, 5.743" OD, 32 teeth (RH560505)
• 5 x B Brake, ID spline (flat), HT: .081" thick, 7.808" OD, 38/40 teeth (RH560510)
• 11 x C & E Clutch, OD spline (waved), HT: .083" thick, 6.69" OD, 32 teeth (RH560515)
• 4 x D Clutch (waved), ID spline, HT: .083" thick, 6.777" OD, 63 teeth (RH560521)

Instructions and resources

• 8HP70 / 8HP55 GPZ module RGPZ-018
