845RE ZF8HP45 ZF8HP55 ZF8HP70 Oversized Clutch Holding Valve Kit

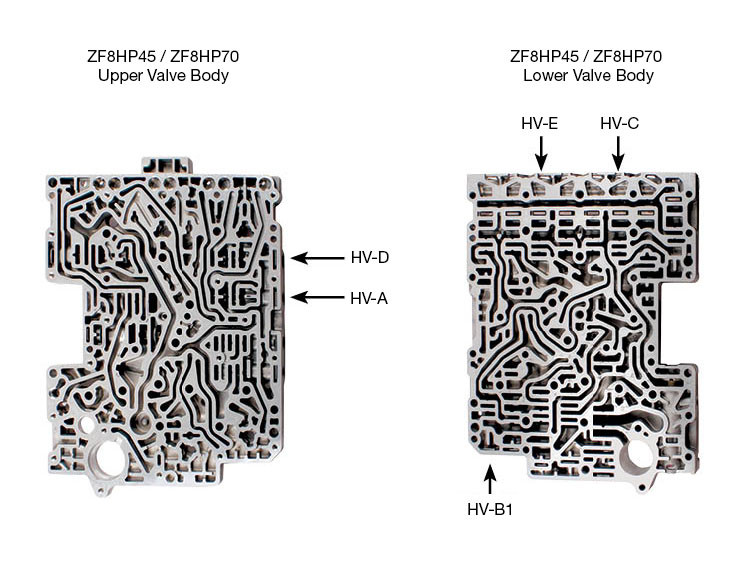

The Chrysler 845RE and ZF8HP45/55/70 clutch holding valves provide solenoid feedback pressure to the clutch control valves, balancing each control valve to assist with apply and release of the respective clutch. Excess wear at a clutch holding valve bore allows crucial fluid to escape the circuit. This can cause shift timing problems, a burnt clutch, ratio and solenoid codes, or loss of gears. Reconditioning the bore and installing Sonnax oversized clutch holding valve kit 35740-20K eliminates bore wear and stops leakage for renewed clutch operation.
- Hardcoat anodized valve combats premature wear
- Annular grooves help center the valve in the bore to resist wear
Symptoms
- Bump shifts
- Burnt clutches
- Flare shifts
- Gear loss
- Gear ratio & solenoid codes
Cause
Bore wear at a clutch holding valve allows pressure escape that causes driveability problems.
Correction
Stop pressure loss and restore normal clutch action by reconditioning the bore and installing Sonnax oversized clutch holding valve kit.

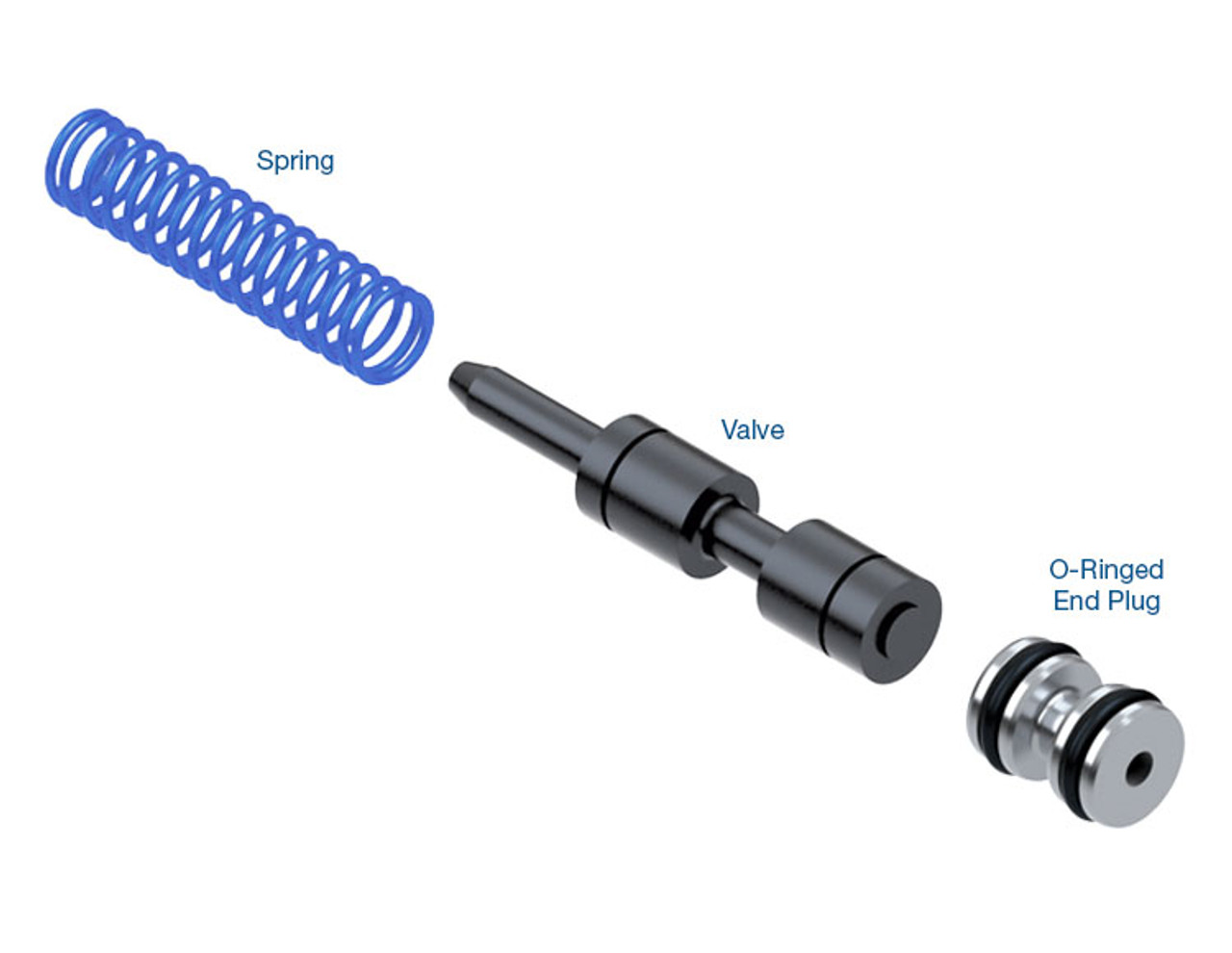

Contents
- Valve
- Spring
- End Plug
- O-Rings (3) 1-extra
