Product Description
Sonnax part number: 68942-23K
722.6 TCC Damper Valve Kit
Late Style Units Only! Early-style units do not have TCC damper valve
No tooling required

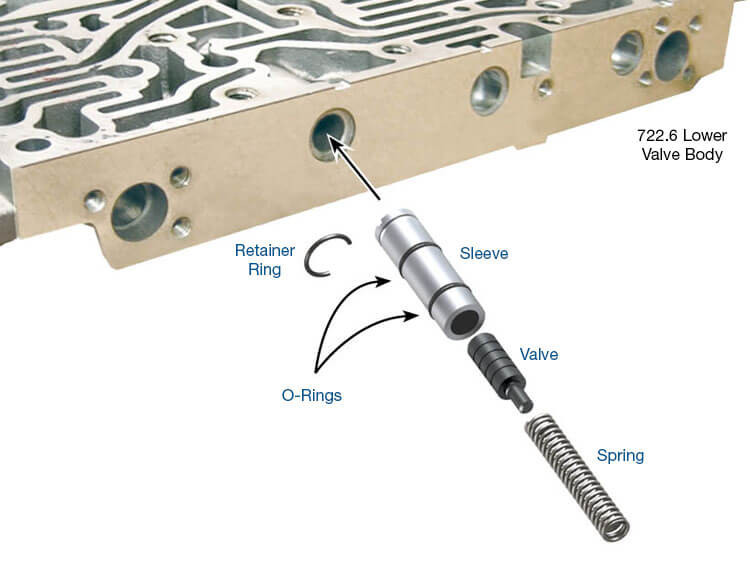

Late-style Mercedes 722.6 valve bodies added a TCC damper valve at a previously vacant bore in the casting. This damper valve acts like an accumulator for the converter clutch. If there is leakage due to bore wear, signal oil can leak to exhaust, resulting in harsh TCC apply and lock-up. Sonnax TCC damper valve kit 68942-23K restores hydraulic integrity.
- The highly wear-resistant sleeve incorporates O-rings to seal against previous bore wear, without the need to ream the bore
- Annular grooves have been added to the Sonnax valve to better center the valve and prevent future wear
- Drop-in Zip Valve™ parts install quickly and easily
Symptoms
- Harsh lockup
Cause
Wear at the TCC damper valve bore allows signal pressure to leak, resulting in harsh TCC apply.
Correction
Sonnax drop-in TCC damper valve kit restores hydraulic sealing.

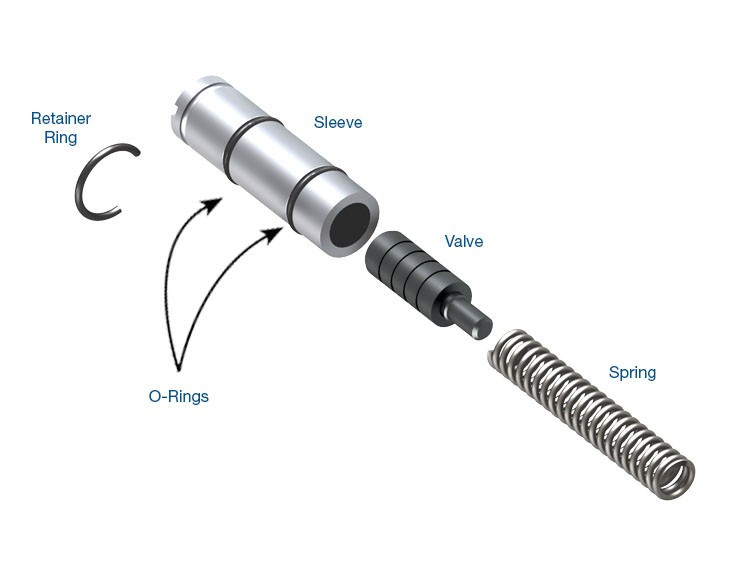

Contents
- Valve
- Sleeve
- Spring
- Retainer Ring
- O-Rings (2)
Product Videos
Custom Field
Tooling Required? No
