Product Description
Sonnax part number: 77918S-K
245MM OR 298MM CONVERTER, NON-RELUCTOR STYLE, UNIVERSAL BOLT PATTERN
Sonnax stator support shaft 77918S-K kit for GM 4L60 and 4L60-E units eliminates sleeve rotation by mechanically fastening the sleeve in place with a set screw, further securing the sleeve in place with Loctite®. The assembly is 100% leak tested by Sonnax to ensure a secure seal. Shafts have slotted bolt holes for easy alignment during installation.
- Set screw and Loctite eliminate sleeve rotation
- Slotted bolt holes for easy installation
- No machining required
- Bushings installed
Symptoms
- Overheated converter
- Worn splines
- TCC apply & release concerns
Cause
Overheating and manufacturing flaws cause sleeve rotation and block oil flow, which leads to transmission failure.
Correction
Replace worn or damaged stator shaft with Sonnax stator support shaft kit.

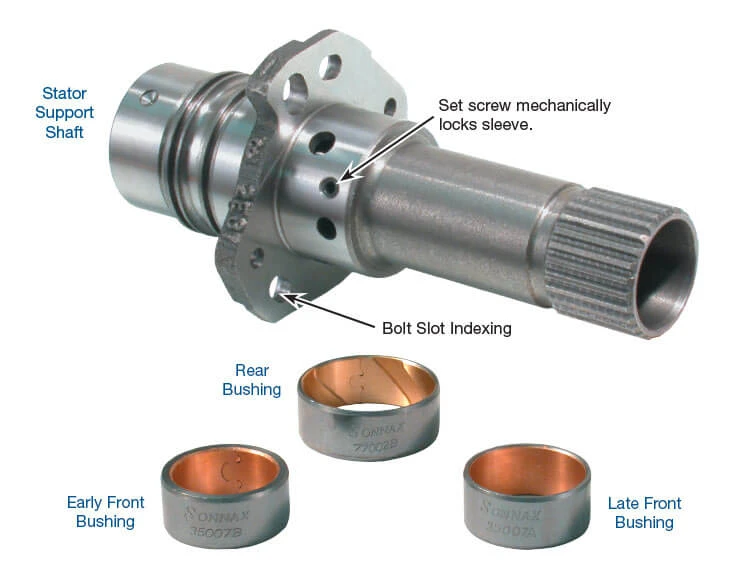

Contents
- Stator Support Shaft 6.830" Long
- Bushings (3)
Product Videos
Custom Field
Transmission Model(s) 700R4, 4L600E
