6T70 6T75 6F59 HT Friction Module by Raybestos (2007-2012)

Product Description

Complete HT friction clutch pack module for the GM/Ford 6T70, 6T75, 6F50 and 6F55 (2007-2012), in one Raybestos box. Made in USA.

For 2013-On Gen 2 units, see RCP96-327.

About this module

HT (Hybrid Technology) frictions in the low/reverse and 4, 5, 6 clutches use Raybestos Powertrain's proprietary OE friction material with a groove pattern that keeps the clutches cooler. The 3, 5, Reverse, 2-6 and 1, 2, 3, 4 clutches use High Energy plates.

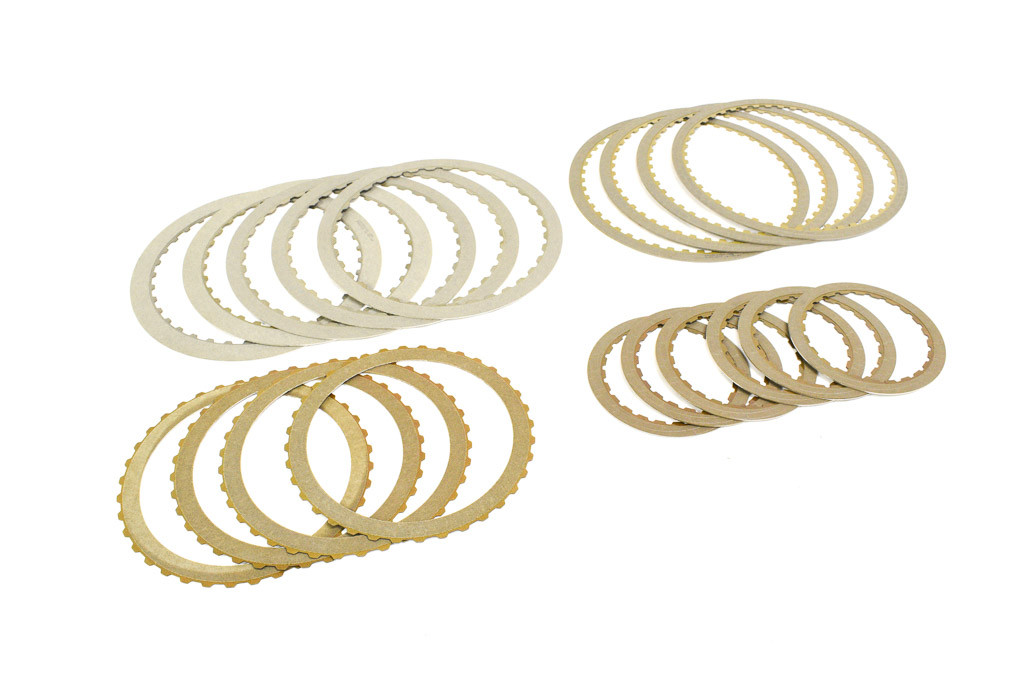

What's included

• 4 x Low/Reverse, HT: .063" thick, 8.625" OD, 48 teeth (RH558500)
• 6 x 4, 5, 6 clutch, HT: .062" thick, 4.77" OD, 24 teeth (RH558510)
• 4 x 3, 5, Reverse (direct), external spline, High Energy: .062" thick, 6.845" OD, 36 teeth (R558505)
• 3 x 2-6 (intermediate), High Energy: .062" thick, 8.24" OD, 36 teeth (R558520)
• 2 x 1, 2, 3, 4 (forward), High Energy: .061" thick, 8.198" OD, 36 teeth (R558515)

Instructions and resources

• 6T70 / 6F50 Gen 2 module RCP96-327
