Product Description

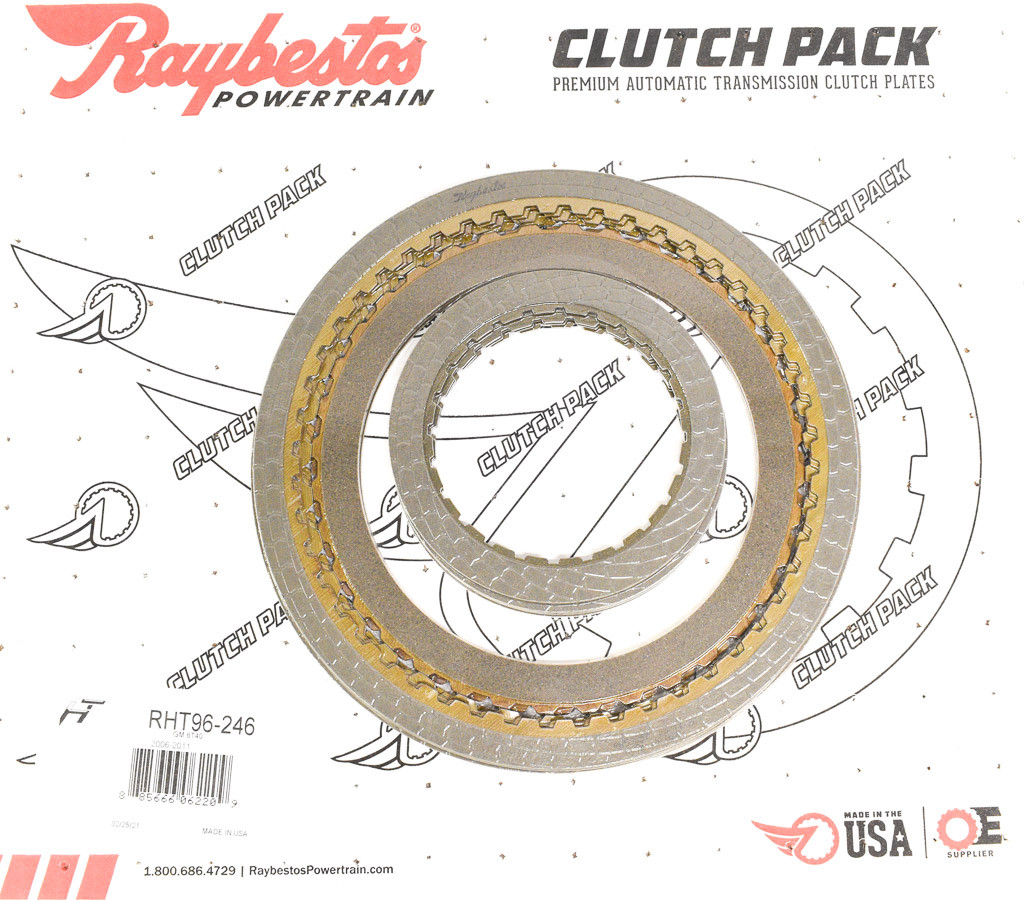

Raybestos Powertrain part number: RHT96-246
Complete HT friction clutch pack module for the GM 6T40, 6T45 and 6T40 Gen 2 (2008-2011), in one Raybestos box. For 2012-UP units, see RHT96-326.
HT (Hybrid Technology) frictions in the 4, 5, 6 and low/reverse clutches use Raybestos Powertrain's proprietary OE friction material with a groove pattern that keeps the clutches cooler, and the 1, 2, 3, 4 & 2, 6 and 3, 5, Reverse clutches use High Energy plates. Made in USA.
Notes
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

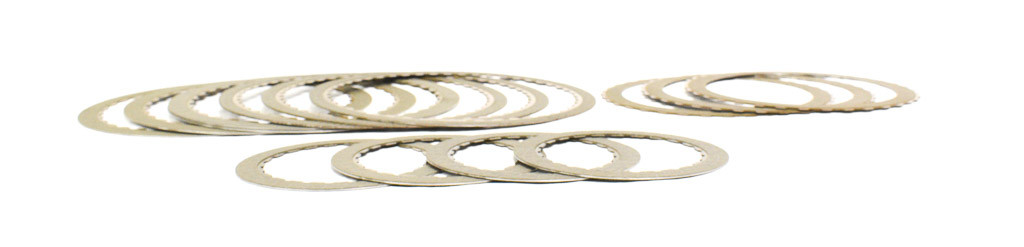

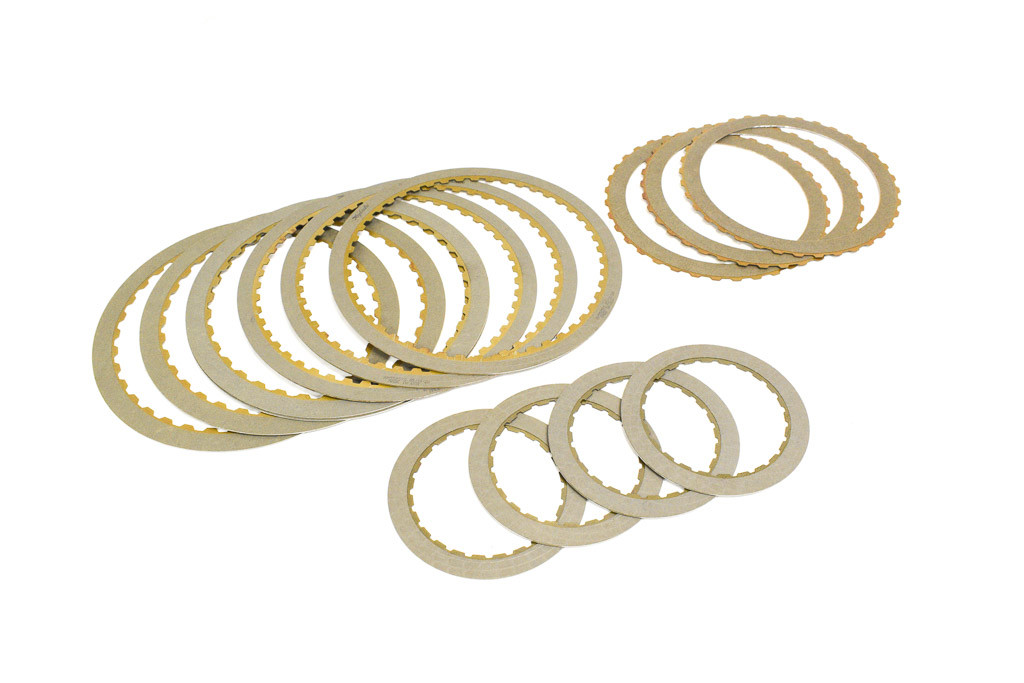

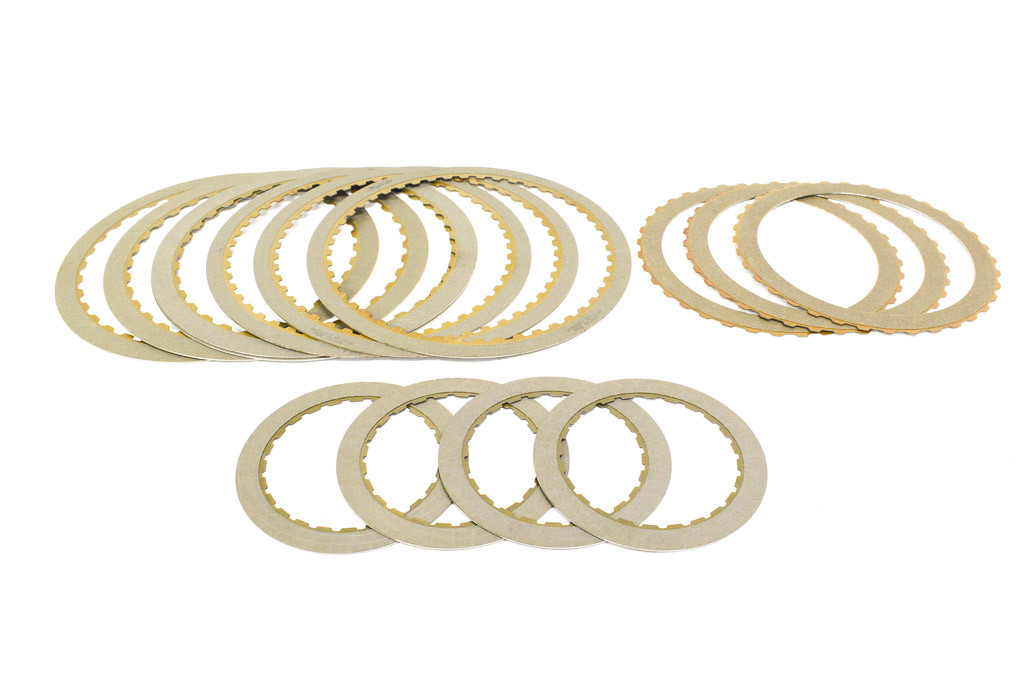

Contents
- 4 x 1, 2, 3, 4 & 2, 6 clutch, High Energy: .058" thick, 8.593" OD, 36 teeth (R558560)
- 4 x 4, 5, 6 clutch, HT: .064" thick, 4.804" OD, 24 teeth (RH558565)
- 3 x 3, 5, Reverse clutch, external spline, High Energy: .063" thick, 7.071" OD, 36 teeth (R558570)
- 3 x Low/Reverse clutch, HT: .063" thick, 8.544" OD, 48 teeth (RH558575)
Recommended use: OE replacement for passenger vehicles.
Product Videos
Custom Field
Transmission Model(s) 6T40, 6T45
Year Range 2008-2011
