6L80 Stage-1 GPZ Friction Clutch Module (2006-UP) Raybestos

Product Description

Stage-1 friction kit assembled from Raybestos plates for the GM 6L80 (2006-UP), with GPZ 3-5 Reverse and 4-5-6 Z-Paks. It has the same line-up as Raybestos module RCPS-21, and the contents list below is exactly what is in the box. Use it with steel module part number 000615.

Recommended for high-stress and heavy-duty driving, commercial vehicles, and as a fix for 3-5 Reverse and 4-5-6 clutch failures.

Specifications

How it works

Stage-1 frictions in the 1-2-3-4, 2-6 and low/reverse clutches add holding capacity and heat resistance. The Z-Pak is a single-sided GPZ clutch system that carries more torque and heat than OE without coning. Made in USA.

For the Gen2 Blue Plate module, see 1558-GEN2-KIT.

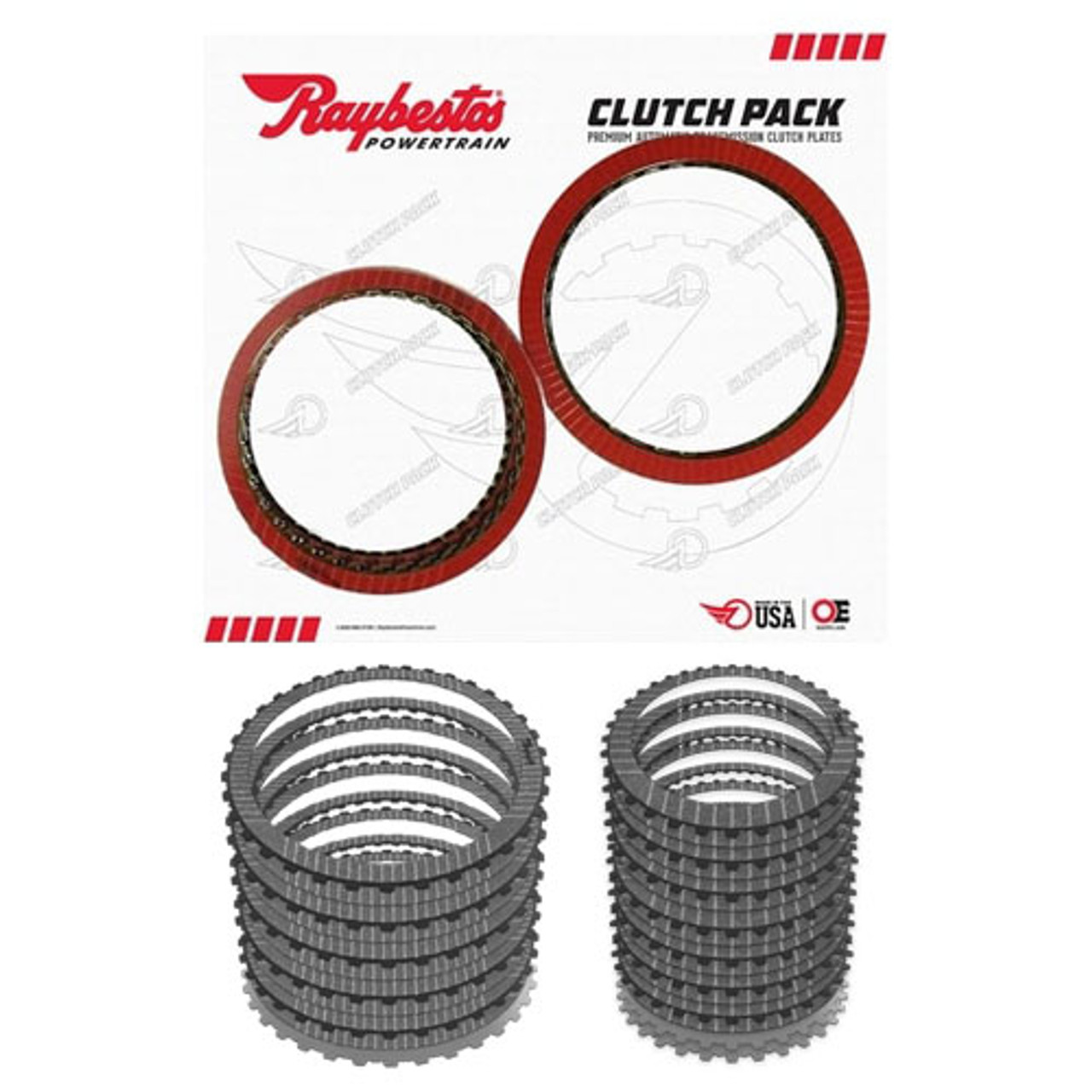

What's included

• 5 x 1st/2nd/3rd/4th clutch, Stage-1 (R600915)
• 5 x 2nd/6th clutch, Stage-1: .070 in thick, 7.874 in OD, 36 teeth (R600920)
• 5 x low/reverse clutch, Stage-1 (R600925)
• 1 x 4-5-6 Z-Pak clutch pack: 1 apply plate steel, 1 reaction plate, 7 single-sided ID spline GPZ, 6 single-sided OD spline GPZ, 1 single-sided OD spline thin GPZ (RZP-006)
• 1 x 3-5 Reverse Z-Pak clutch pack: 1 3-5 reverse steel, 5 ID spline GPZ, 4 OD spline GPZ, 1 DS OD spline GPZ (RZP-005)

Instructions and resources

• Gen2 Blue Plate friction module (1558-GEN2-KIT)
• 4-5-6 Z-Pak clutch pack (RZP-006)
• 3-5 Reverse Z-Pak module (RZP-005)
