Product Description
KIT FITS ZF6HP19 ZF6HP26 ZF6HP32 GEN-1 UNITS WITH 053 SEPARATOR PLATE CODE ONLY

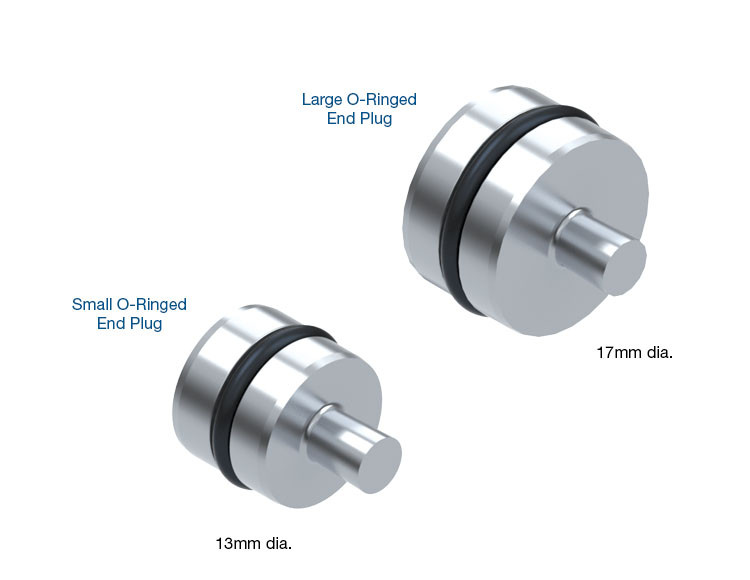

ZF6HP19 6HP26 6HP32 O-Rionged End Plug Kit
No tooling required
Valves, springs and pressurized fluid repeatedly push on end plugs causing them to deform and wear. As a result, critical pressure is lost due to excessive clearance between the plug and bore. Sonnax O-ringed end plug kit 95740-81K for ZF6HP19/26/32 (Gen. 1) units with a 053 separator plate code replaces the damaged OE end plugs, and restores pressure containment to the valve bore.
- Prevents loss of critical pressure
- Single O-ring sealed end plugs replace all 11 of the 13mm and 17mm dia. end plugs
- Drop-in Zip Valve™ parts install quickly and easily
| O-Ringed End Plug Kit for ZF6HP19/26/32 (Gen. 1) units with 053 separator plate only | |||
|---|---|---|---|
| Sonnax Kit | Valve | Location | End Plug Dia. |
| 95740-81K | Clutch A Control Pressure Regulator | Lower Valve Body | 17mm |
| Clutch E Control Pressure Regulator | 13mm | ||
| Clutch E Latch | 13mm | ||
| Bypass Clutch Control Regulator | 13mm | ||
| Converter Release Regulator | 13mm | ||
| Lubrication Control | 13mm | ||
| Clutch D1 Control Pressure Regulator | Upper Valve Body | 13mm | |
| Clutch C Regulator | 13mm | ||
| Clutch D2 Latch | 13mm | ||
| Clutch D2 Regulator | 13mm | ||
| Position Valve D | 13mm |
Symptoms
- Inconsistent shift quality
Cause
Valves, springs and pressurized fluid repeatedly push on the end plugs causing the plugs to deform and wear. As a result, critical pressure is lost due to excessive clearance between the plug and bore.
Correction
Sonnax drop-in O-ringed end plugs restore correct circuit pressures. The O-ring provides additional sealing to reduce pressure losses past the end plug.
Contents
- Large End Plug 17mm
- Large O-Rings (2) 1 Extra
- Small End Plugs (10) 13mm
- Small O-Rings (15) 5 Extra
