Product Description
Part number: FM128
Fits: C6 · 1973-1996
Fits: C6 · 1973-1996

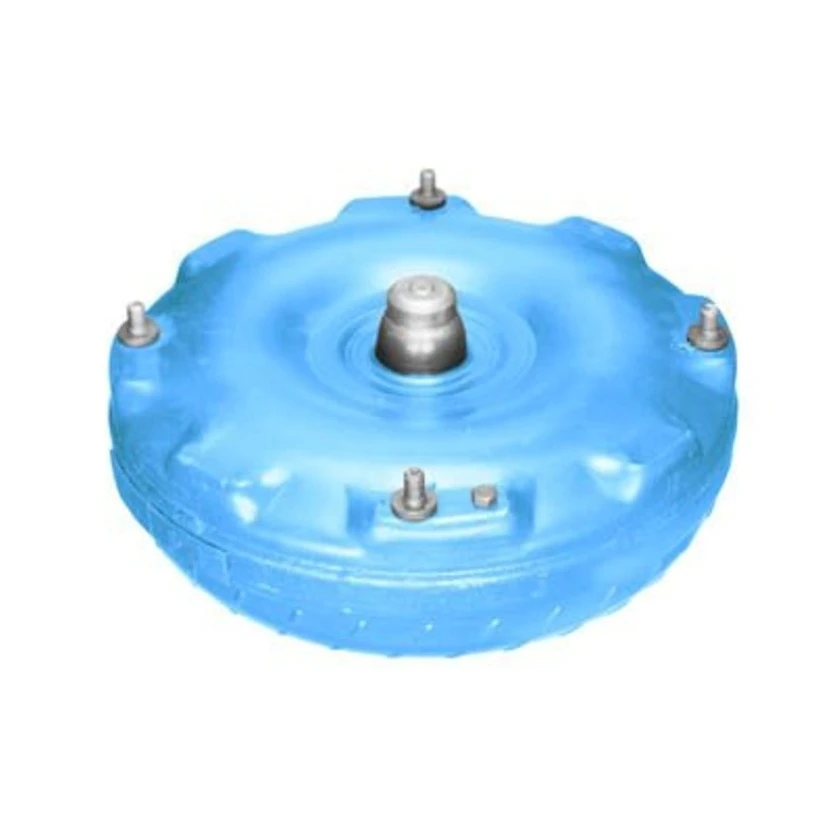

Non-lock-up torque converter for the C6 transmission, 1973 - 1996, with an 1800-2200 stall speed. It is 12.750 in overall diameter with an 11.440 in bolt pattern, 4 studs with 3/8 x 24 thread, a milled flats hub and 31 splines.
Specifications
| Fits | C6 |
|---|---|
| Years | 1973-1996 |
| Overall diameter | 12.750 in |
| Body diameter | 12.75 in / 323.9 mm |
| Bolt pattern | 11.440 in |
| Bolt circle | 11.4 in |
| Number of mounts | 4 |
| Mount type | Threaded studs, round pads |
| Mount threads | 3/8 x 24 |
| Hub type | Milled 2 flats stepped |
| Hub internal bushing | No |
| Hub seal groove | No |
| Pilot diameter | 1.375 in |
| Pilot length | 1.610 in |
| Pilot type | Straight |
| Turbine internal spline count | 31 |
| Stall speed | 1800-2200 |
| Pump stall | High stall |
| Lock-up | No |
| Ring gear | No |
| Cooling shroud | No |
| Billet cover | No |
| C6 | 1973 - 1996 |
Core Charge
No core charge. You don't need to return your old converter. If you'd like to send it back anyway, contact us and we may be able to provide a return label (for returns from within the USA).
Product Videos
Custom Field
Transmission Model(s) C6
Year Range 1973-1996
Core Charge None
