Product Description
Fits: 68RFE
Chrysler 68RFE pump bodies are frequently found to have a scored bearing surface or pump wear and fractures where the center gear drive flange passes through the pump. The Sonnax center pump gear 72530B-02 and/or bushing 72530B-03 salvages pumps with this type of wear. The score damage is machined out of the pump when the center pump gear bore is oversized to accept a precision, steel-backed aluminum bushing.
- Allows salvage of pump bodies scored at center gear bearing surface
- Redesigned center gear drive flange reduces turbine hub engagement play and noise
- The correctly installed steel-backed aluminum alloy precision bushing extends pump life
Valve Body Layout
Sonnax valve body layouts provide a detailed overview of individual units making it quick and easy to determine what’s available for the specific valve body you’re working on. See all Sonnax valve body layouts.
Chrysler 45/545RFE, 65/66/68RFE Valve Body Layout
Warning

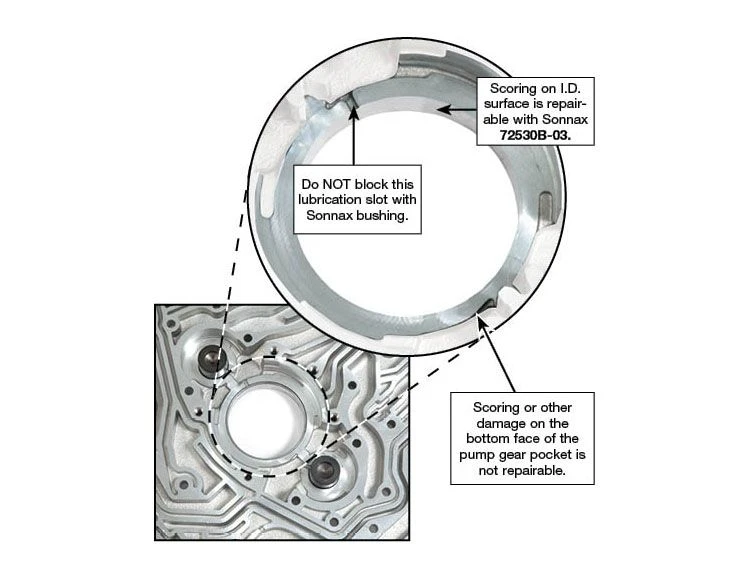

Inspect pump bore and pump pocket face below the center gear. Damaged bores can be corrected using center pump gear bushing 72530B-03. Damaged pockets cannot be repaired using these parts. Replace the pump.
Symptoms
- Pump gear wear or fracture
- Scored surface where center gear pump pilot passes through pump body
- Noise concerns
Cause
Excess pump body wear.
Correction
Salvage the pump and restore normal operation by installing Sonnax center pump gear.
