Product Description
WARNING: A specially deesigned oversized base plate, VB-06, must be mounted to the VB-FIX to accomodate the 5R110W pump body. Optional tool kit F-36940-T3 is no longer in production.
5R110W Oversized Pressure Regulator Vavle Kit
Ford 5R110W units may exhibit various line pressure and converter problems due to excess wear in the pressure regulator bore. Deterioration of the bore prevents the valve from providing higher line pressure as fluid is pulled into the suction port. The pressure regulator valve also controls fluid flow entering the converter and lube circuits, which can be reduced resulting in multiple TCC concerns and trouble codes. Installing Sonnax oversized pressure regulator valve kit 36940-03K restores the hydraulic integrity of these circuits for proper line pressure control.
- Salvages pump bodies with worn pressure regulator valve bores
- Restores normal line pressure, eliminates related shift problems and restores cooler flow
- Repairs both early and late versions of 5R110W pump bodies
NOTE: Three pump generations were produced, with varying casting hardness. The Sonnax reaming tool kit used must be matched to the hardness of the pump to extend reamer life and bore finish quality. Sonnax reaming tool kit F-36940-TL3 is for use with first generation pumps, while F-36940-TL3C can be used with all pumps regardless of pump generation. See instructions for details.
Symptoms
- Code 1744, 1783
- Low line pressure & TCC concerns
Cause
Excessive valve and bore clearance allows critical line pressure to exhaust causing low line pressure and TCC concerns.
Correction
Sonnax oversized pressure regulator valve kit restores the correct valve/bore clearances and line pressure control as well as prevents future wear in this area.

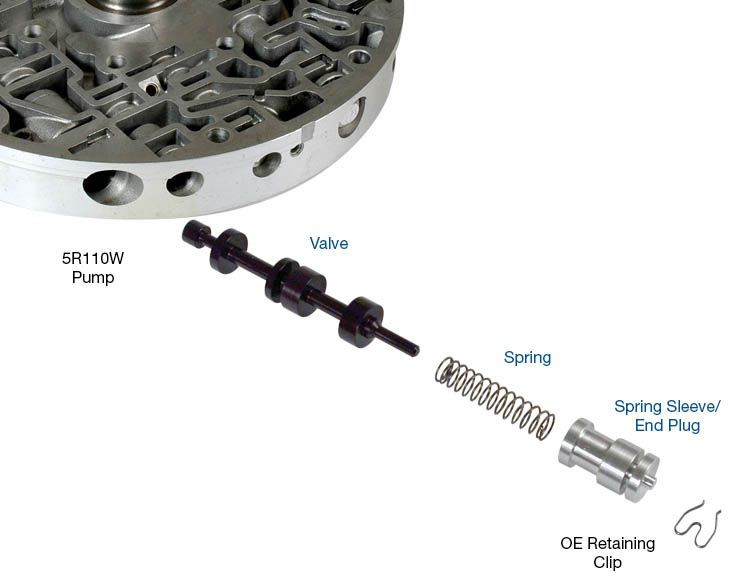

Contents
- Valve
- Spring Sleeve/End Plug
- Spring
